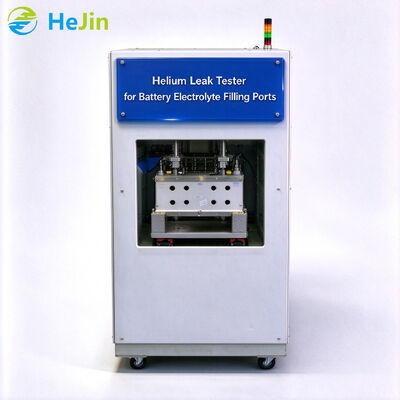

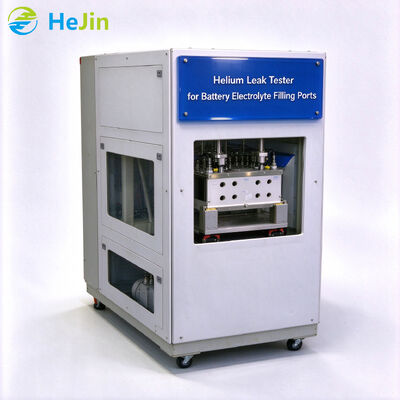

Battery Electrolyte Filling Port Helium Leak Tester for Lithium-Ion EV Battery Manufacturing with Helium Tracer-Gas Detection

Battery Electrolyte Filling Port Helium Leak Tester for Lithium-Ion EV Battery Manufacturing

Reliable sealing at the electrolyte filling port is essential to the long-term integrity of lithium-ion battery cells. Designed for battery manufacturing quality control, this helium leak testing solution helps identify sealing defects around the filling port and related closure areas, supporting more consistent inspection before products move to the next production stage.

Developed and manufactured by HeJin, the system can be configured around the battery structure, required leak-rate threshold, testing method, and production workflow. As a source manufacturer with in-house engineering and manufacturing capabilities, HeJin provides factory-direct supply, application consultation, and technical support throughout the equipment lifecycle.

Product Introduction

The electrolyte filling port is a critical sealing area in lithium-ion battery cell production. Incomplete sealing, defective joints, or inconsistent closure quality may create potential leakage paths. These defects can affect electrolyte retention, product consistency, and the ability of the cell to maintain its required sealing performance.

The Battery Electrolyte Filling Port Helium Leak Tester is intended to support the evaluation of filling-port sealing integrity through a suitable helium tracer-gas detection process.

Depending on the confirmed system configuration, the test process may include workpiece positioning, sealing-fixture connection, preparation of the test environment, helium introduction or evacuation, leak detection, result evaluation, and workpiece release.

Helium leak testing offers a practical approach to detecting small leakage paths when conventional inspection methods cannot provide sufficient sensitivity. The actual detection limit and acceptance criteria must be established according to the battery design, test conditions, and customer quality requirements.

Rather than relying on a generic testing arrangement, HeJin works with customers to define the appropriate fixtures, sealing interface, detection method, and control logic for the intended battery filling-port design.

Product Features

1. Dedicated Filling-Port Sealing Inspection

The testing arrangement can be designed around the geometry and sealing interface of the battery electrolyte filling port. Appropriate fixtures help establish repeatable positioning and a consistent connection between the workpiece and the test system.

2. Helium Tracer-Gas Leak Detection

A helium-based detection method can reveal leakage paths that may not be readily identified through visual inspection alone. The achievable sensitivity depends on the selected detector, test method, fixture integrity, and operating conditions.

3. Application-Specific Fixture Engineering

Different battery cell designs may have different filling-port dimensions, closure structures, and sealing requirements. Fixture design should therefore be based on the actual workpiece drawings and production process.

4. Repeatable Testing Procedures

A clearly defined testing sequence helps reduce variation caused by inconsistent workpiece positioning, fixture connections, or operator procedures. The sequence and control functions can be specified according to the approved equipment design.

5. Production-Oriented Equipment Design

For manufacturers integrating leak testing into battery production, the equipment layout and operating sequence can be planned around the required production takt, operator access, and upstream or downstream processes.

Main Functions

• Evaluate the sealing integrity of lithium-ion battery electrolyte filling ports.
• Detect helium tracer-gas leakage using the selected test method.
• Support pass/fail evaluation against an agreed leak-rate threshold.
• Establish repeatable workpiece positioning and sealing connections.
• Support parameter setting according to the approved process configuration.
• Provide test-result indication and data handling where included in the selected configuration.

Technical Specifications

What Does the Equipment Test?

The primary target is the sealing interface around the lithium-ion battery electrolyte filling port.

Depending on the battery design and agreed test scope, the inspection area may include:

• Electrolyte filling-port closure
• Filling-port sealing joint
• Filling-port plug or sealing element
• Filling-port weld or joining area, where applicable
• Local sealing interfaces surrounding the filling opening
• Other designated closure areas that can be connected to the approved test fixture

These are potential application areas rather than a guarantee that every feature can be tested simultaneously. The exact inspection coverage must be confirmed using the workpiece drawing and the selected testing method.

FAQs

Q1. What is a battery electrolyte filling port helium leak tester?

It is a leak-testing system designed to evaluate the sealing integrity of a lithium-ion battery's electrolyte filling-port area using a helium tracer-gas detection method selected for the application.

Q2. Which battery components can be tested?

The primary target is the electrolyte filling-port closure and its designated sealing interface. Other local sealing features may be included if the workpiece design, fixture, and test method support them.

Q3. Can the system detect very small leaks?

Helium leak detection can identify small leakage paths when the detector, test method, fixture, and operating conditions are appropriately selected. The guaranteed detection limit must be confirmed against the actual HJ076 specification and validated test conditions.

Q4. What leak-rate threshold should be used?

There is no single universal acceptance threshold for every battery filling port. The threshold should be defined by the battery manufacturer's product requirements, validation data, and quality-control procedure.

Q5. Is the equipment suitable for automated production lines?

Production-line integration may be possible depending on the selected configuration. Automatic loading, unloading, data exchange, and other automation functions must be confirmed during technical review.

About HeJin

HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD. was founded in 2012 and is based in Guangzhou, China. The company integrates research and development, engineering design, manufacturing, sales, and service for industrial testing equipment.

With application experience across automotive components, leak testing, environmental reliability testing, and automated production equipment, HeJin works with customers to develop testing solutions around their actual manufacturing requirements.

From initial technical discussion to equipment delivery and subsequent service coordination, the goal is to provide practical equipment solutions supported by direct manufacturer communication.
