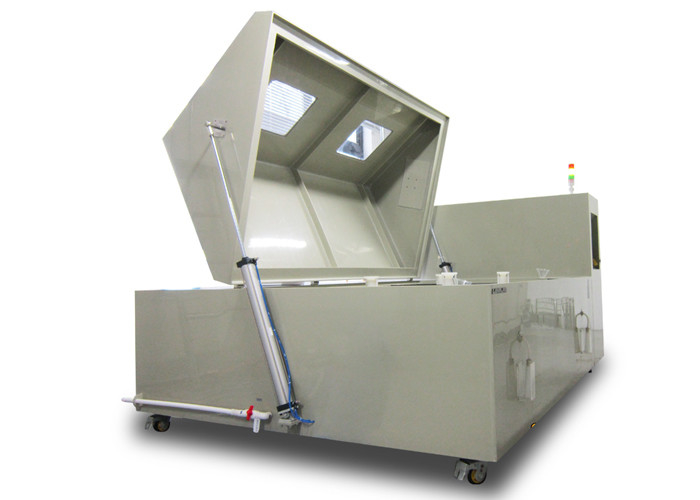

17.5KW Salt Fog Test Box Auto Parts Test Equipment IEC61701

Minimum Order Quantity :	1 set	Price :	Negotiable
Packaging Details :	Plywood	Delivery Time :	40 days
Payment Terms :	L/C, T/T	Supply Ability :	10 set /month

Place of Origin:	China	Brand Name:	HeJin
Certification:	Calibration Certificate(cost additional)	Model Number:	AM0046

Detail Information
Temperature Range:	RT+5℃～60℃	Humidity Range:	30%～98% RH
Saturating Bucket Temperature:	RT+10℃～70℃	Temperature Uniformity:	2℃ (on Empty Load)
Temperature Fluctuation:	± 0.5℃ (on No-load)	Salt Fog Settlement:	1～2ml/80 Cm².mean H (16 Hours)
Heating Rate:	0.5℃～1.5℃/min	Cooling Rate:	0.5℃～1.0℃/min
Highlight:	17.5KW Auto Parts Test Equipment , IEC 61701 Auto Parts Test Equipment , Salt Fog Test Box

Product Description

Salt Fog Test Box For Auto Parts Auto Parts Test Equipment IEC 68 IEC61701 IEC 60068

Products Introduction:

The salt fog test box of automobile parts is suitable for components or equipment scheduled to tolerate the salt atmosphere. During the test, the corresponding harsh grade is selected according to its tolerance procedures. The test steps are generally wet, salt fog, drying, etc.Auto Parts Test Equipment

Meet a criterion:

GB-T10587-2006 Salt Fog Test Chamber Technical ConditionsAuto Parts Test Equipment

IEC61701:1995 Salt Mist Corrosion Testing of Photovoltaic (PV) Modules

GBT 2423.33-2005 Environmental Testing for Electric and Electronic ProductsAuto Parts Test Equipment

IEC 68-2-52 Corrosion Testing Standards

IEC 60068-2-11: 1981 Basic Environmental Testing Procedures - Part 2-11: Tests - Test Ka: Salt Mist

Parameters:

Unit type	Studio Dimensions (D * W * H) mm	Exterior size (D * W * H) mm
AM0046-108-RFHY	450×600×400	Refer to the three view drawing of the contract Auto Parts Test Equipment
AM0046-270-RFHY	600×900×500
AM0046-412-RFHY	750×1100×500
AM0046-663-RFHY	850×1300×600
AM0046-816-RFHY	850×1300×600
AM0046-1080-RFHY	900×2000×600

Performance index	Temperature range	RT+5℃～60℃
	Humidity range	30%～98% RH
	Saturating bucket temperature	RT+10℃～70℃
	Temperature uniformity	2℃ (on empty load)
	Temperature fluctuation	± 0.5℃ (on no-load)
	Salt fog settlement	1～2ml/80 cm².mean h (16 hours)
	Heating rate	0.5℃～1.5℃/min
	Cooling rate	0.5℃～1.0℃/min
	Compress air pressure	2.00±0.01(kg/cm²)
	Spray method	Continuous / periodic selection is optional
	Test frame Angle	Can meet the 15 °, 30 ° tilt test
	Experimental method	NSS test AASS test CASS test
Used Material	Box material	PP enhanced hard plastic plate or 316 stainless steel
	Box cover material	PP enhanced hard plastic plate or 316 stainless steel

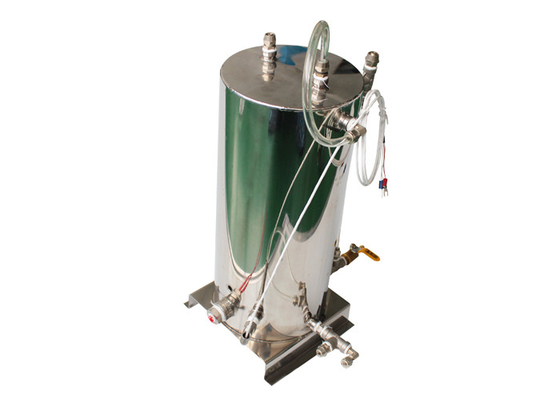

	Air saturated bucket	Import advanced stainless steel SUS304
	Pressurized air tube material	High quality rubber pipe
	Other pipes	Reinforced fluorosilicone rubber tube
The core configuration	Temperature controller	Japan the original imported "UNIQUE" brand temperature and humidity instrument
	Removal of wet and cooling	Single machine or double machine cascade refrigeration
	Temperature sensor	PT100 Platinum resistance thermometers
	Pressure, shrink, machine	Tecumseh, France
	Heating pipe	Titanium alloy heating pipe
	Circuit breaker	Schneider small circuit breaker (prevent short circuit to control circuit)

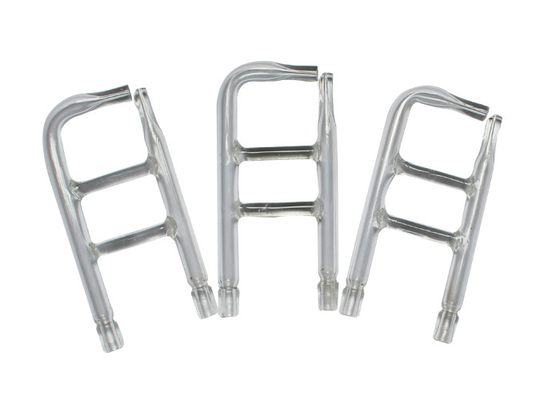

Standard layout		V sample rack, round rod, nozzle, funnel, metering tube and Salt mist exhaust pipe
Security guard		Excessive temperature, overall equipment phase / reverse phase, overall equipment timing, end of rapid fog discharge indication test, low water level protection, leakage, short circuit, Compressor overheating and compressor overpressure
Supply voltage		AC380V±10% 50Hz
Power		8.5KW/10.0KW/12.0KW/13.5KW/15.0KW/17.5KW
Service environment		5℃～＋28℃ ≤85% RH
Note: Data were measured at an ambient temperature of 25℃ and under well ventilated conditions The above parameters are for reference only, and can be customized according to the user's specific test parameters This Technical information is subject to change without notice

17.5KW Salt Fog Test Box Auto Parts Test Equipment IEC61701 0

17.5KW Salt Fog Test Box Auto Parts Test Equipment IEC61701 1
