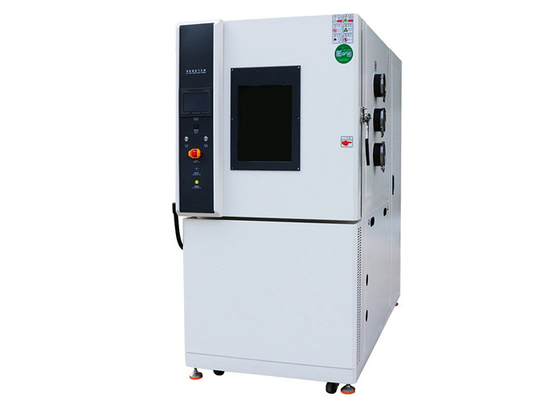

Water Cooled Auto Parts Test Equipment 380V High And Low Temperature Low Pressure Test Chamber

Minimum Order Quantity :	1 set	Price :	Negotiable
Packaging Details :	Plywood	Delivery Time :	40 days
Payment Terms :	L/C, T/T	Supply Ability :	10 set /month

Place of Origin:	China	Brand Name:	HeJin
Certification:	Calibration Certificate(cost additional)	Model Number:	AM0032

Detail Information
Temperature Range:	-70℃~+150℃	Temperature Fluctuation:	± 0.5℃ (normal Pressure, No Load)
Temperature Uniformity:	<± 2℃ (normal Pressure, No Load)	Heating-up Time:	60min (no-load)
Temperature Fall Time:	90min (no-load)	Temperature Sensor:	Platinum Resistance Pt100
Refrigeration Method:	Water-cooled	Supply Source:	380V, 50Hz
Highlight:	Water Cooled Auto Parts Test Equipment , 380V Auto Parts Test Equipment

Product Description

High And Low Temperature Low Pressure Test Chamber Auto Parts Test Equipment IEC 60068

Products Introduction:

It is mainly used in aerospace information electronics and other fields to determine the environmental adaptability and reliability test of instruments, electrical products, materials, parts and equipment under low pressure, high temperature and low temperature or at the same time, and to measure the electrical performance parameters of specimens when they are energized.

Meet a criterion:

GJB150.3-1986 high-temperature test;

GJB150.4-1986 low-temperature test;Auto Parts Test Equipment

GJB150.6-1986 temperature height test;

IEC 60068-2-1: 2007, Environmental Testing – Part 2-1: Tests - Tests A: Cold, IDT；

IEC60068-2-2:2007,Environmental testing-Part 2-2:TestsTestB:Dryheat,IDT；

GJB360A-1996 Method 105: Low pressure test;

IEC 60068-2-13:1983,Basic environmental testing procedures-

Part 2:TestM:Low air pressure,IDT

IEC60068-2-40:1976,Basic environmental testing procedures- Part2:Tests TestZ/AM:Combined cold/low air pressure tests,IDT

GB/T2423.26-1992 test Z / BM: comprehensive test of high temperature / high pressure.Auto Parts Test Equipment

Parameters:

Model	AM0032-HLY-250	AM0032-HLY-500	AM0032-HLY-800	AM0032-HLY-1000
Inside box size mm	600×600×600	700×700×800	1000×1000×800	1000×1000×1000
Outer box size mm	2650×1400×1550	2750×1500×1750	1900×1200×1320	3250×1400×2000
Temperature range	-70℃,-60℃,-50℃,-40℃,-30℃,-20℃,0℃～ +150℃
Temperature fluctuation	± 0.5℃ (normal pressure, no load)
Temperature uniformity	<± 2℃ (normal pressure, no load)
Heating-up time	60min (no-load)
Temperature fall time	90min (no-load)
Pressure limit	Regular pressure (1.01325×105Pa)~0.5KPa (optional 2.5KPa / Rapid pressure drop function)
Stress deviation	≥ 40kPa, ± 2kPa
	4kPa ~ 40kP a, ± 0.5kPa
	≤ 4kPa, ± 0.1kPa
Pressure reduction time	Normal pressure of ~0.5KPa ≤ 45min (room temperature, dry in the box)
Temperature sensor	Platinum resistance Pt100
pressure pickup	pressure transmitter
Binding post	The side wall of the test chamber is provided with a stainless steel flange interface with a 50-core aviation socket
Running data processing	Micro printer, RS485 interface, RS232 conversion line
Controller	Touch screen + Siemens PLC controller
Observation window	200×270mm Auto Parts Test Equipment
Refrigeration system	Compressor imported from Europe and America
Refrigeration materials	Cascade double stage compressor
Refrigeration method	Water-cooled
Internal box material	Stainless steel sheet
Outer box material	Cold tie steel plate surface plastic spraying
Heat insulating material	extra-fine glass wool Auto Parts Test Equipment
Supply source	380V, 50Hz three-phase four-wire line + grounding wire
