Automobile High And Low Temperature Chamber Formula Constant Wet / Humidity
Contact Person : Anglia Chen
Phone Number : +86 17724266108
WhatsApp : +8617724266108
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | AM0029 |
|
Detail Information |
|||
| Temperature: | RT+10℃～70℃ | Humidity: | ±1％RH |
|---|---|---|---|
| Temperature And Humidity: | PT100Ω / MV Platinum Resistance | Turntable Rotary Speed: | 1～3r/min |
| Light Pipe Lamp Source: | Water Cooled Tube | Lights Pipe Life: | About 1,200 Hours |
| Effective Exposure Area: | 3760cm2～7500cm2 | Rain Water Pressure: | 0.12～0.15Mpa |
| High Light: | Xenon Lamp Weatherproof Test Chamber,Auto Parts Weatherproof Test Chamber,Water Cooled Auto Parts Test Equipment |
||
Product Description

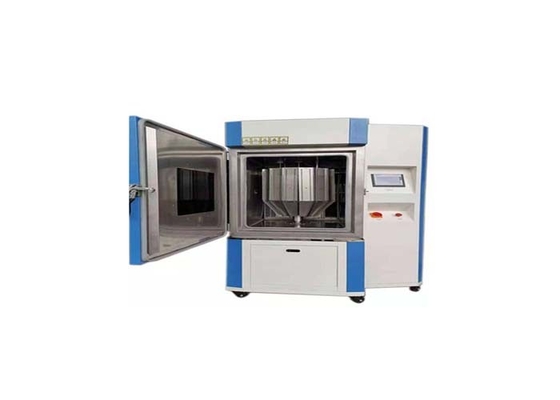

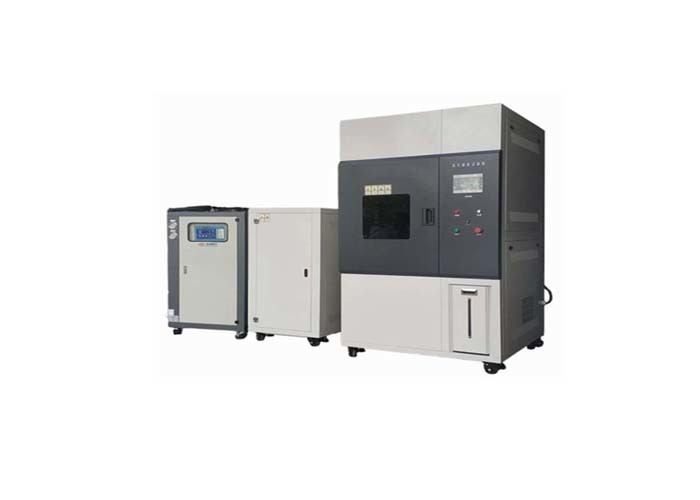

Xenon Lamp Weatherproof Test Chamber Water-Cooled Type Auto Parts Test Equipment ISO105-B04:1994 IEC60068 RT+10℃～70℃
Products Introduction:
Xenon arc lamps simulating the full sunlight spectrum to reproduce the destructive light waves present in different environments can provide corresponding environmental simulations and accelerated tests for scientific research, product development, and quality control.
The aging resistance of some materials under the action of high temperature light source is evaluated by exposure to the light and thermal radiation of xenon arc lamp.It is mainly used in automotive, coatings, rubber, plastic, pigments, adhesives, fabrics, aerospace, ships, ships, electronics industry, packaging industry, etc.Auto Parts Test Equipment
This Xenon lamp Climate resistance test machine can be used for the selection of new materials, change existing materials or evaluate the durability after the change in material composition, and can well simulate the changes caused by material exposure to sunlight under different environmental conditions.Auto Parts Test Equipment
Meet the standards:
AATCC16, ASTM G155, GB / T18244-2000, GB / T12831-91, GB / T8430-1998, ISO105-B04:1994, ISO4892-2:2006, GB/T16422.2-2014, GJB150.7A-2009, GB/T1865-2009, ISO11341:2004, GB/T2423.24-2013, IEC60068-2-5:2010, etc.Auto Parts Test Equipment
Parameters:
| Model | AM0029-SW-280 | AM0029-SW-500 | AM0029-SW-1000 |
| Internal Box Size W * D * H (mm) | 600×600×800 | 800×800×800 | 1000×1000×1000 |
| Outer box dimensions W * D * H (mm) | 1200×1345×1900 | 1400×1545×2100 | 1600×1745×2300 |
| Turntable diameter (mm) | Ф400 | Ф600 | Ф800 |
| Temperature range | RT+10℃～70℃ | ||
| Black standard temperature | 40℃ ~100℃ adjustable (light cycle); 25~85℃ (dark cycle) | ||
| Humidity range | 30%~98%RH (in the dark); 20%~60%RH (in the light) | ||
| Temperature uniformity | ±3℃ | ||
| Temperature accuracy | ±0.1℃ | ||
| Humidity accuracy | ±1％RH Auto Parts Test Equipment | ||
| Temperature and humidity sensor | PT100Ω / MV Platinum resistance | ||
| Turntable rotary speed | 1～3r/min | ||
| Light pipe lamp source | Water cooled tube | ||
| Lights pipe life | About 1,200 hours | ||
| Power of lamp tube | 6.5KW Auto Parts Test Equipment | ||
| Effective exposure area | 3760cm2～7500cm2 | ||
| Light cycle time | 1~999H, M, and S are continuously adjustable | ||
| Rainfall time | 1~9999min continuous rainfall is adjustable | ||
| Rainfall cycle | The 1~240min interval (off) rainfall is adjustable | ||
| Water spray cycle | 18min / 102min or 12min / 48min (water spray time / no spray time) | ||
| Rain water pressure | 0.12～0.15Mpa | ||
| Water nozzle hole diameter | Ф0.8mm | ||
| Standard sample size | 75mm×150mm | ||
| Light filter type | Window glass filter, sun filter, ultraviolet filter, can choose one | ||
| Radiation intensity of xenon lamp | The 290 to 2450 n m band was 400 to 1120 W/m2 | ||
| The 420nm band, 0.55~1.1W/m2 | |||
| The 340nm band, 0.35~0.7W/m2 | |||
| 300 to 400nm band, 40W ~60W | |||
| Use material | Outer box material: S US201 stainless steel or cold tie plate paint | ||
| Internal box material: S U S, 304 high-quality stainless steel | |||
| Sample frame material: SUS304 high-quality stainless steel | |||
| Door frame: withstand high and low temperature aging silicone rubber door sealing strip | |||
| Service condition | Voltage: 380 ± 10%V, 50 ± 1%Hz, power of 15KW three-phase five-wire system | ||
| Ambient condition | Temperature 5℃ ~30℃ ,relative temperature 85%RH ,air pressure 86kPa~106kPa | ||
| Safety protection device | Leakage, short circuit, overtemperature, water shortage, motor overheating, overcurrent protection | ||
