Plate Heat Exchanger Helium Leak Detection System | High Precision 2 Stations Leak Testing Equipment with ≥98% Helium Recovery

Brand Name:	HeJin
Model Number:	HJ027
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	L/C,T/T
Supply Ability:	5 Set per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(Cost Additional)

Stations:

2 Stations(Customizable)

Detection Pressure:

5.5 MPa

Power:

380V/50Hz

Warranty Period:

One Year

Packaging Details:

plywood

Highlight:

plate heat exchanger leak testing equipment

helium leak detection system high precision

2 stations leak testing equipment

Product Description

Plate Heat Exchanger Helium Leak Detection System

High Precision 2 Stations Leak Testing Equipment with ≥98% Helium Recovery

HeJin's 2-station helium leak detection system delivers unmatched precision leak testing, ≥98% helium recovery, and full customizability for plate heat exchanger manufacturers. As an OEM factory direct supplier, we provide end-to-end support to secure your product quality, cut operational costs, and meet global compliance standards.

System Overview

Our Plate Heat Exchanger Helium Leak Detection System is purpose-built to solve common production challenges: slow batch testing, inconsistent leak detection accuracy, high helium consumption costs, and difficulty meeting global export compliance requirements.

Built on helium mass spectrometry leak detection principles, our system uses 100% helium as a tracer gas to deliver unmatched precision in both internal and external leak testing. With two independent dedicated stations—one optimized for internal leakage detection between plate chambers, and the other for external leakage testing to the atmosphere—our system enables parallel, uninterrupted testing, reducing production cycle time without compromising quality.

Key Applications

HVAC & Residential/Commercial Refrigeration
Chemical & Petrochemical Processing
Power Generation (Thermal, Nuclear, Renewable Energy)
Food & Beverage Processing
Marine & Shipbuilding

Technical Specifications

Leak Detection Stations	2 Stations - One for internal leakage detection, one for external leakage detection
Test Chamber Size	Customized Based on Customer Requirements
Bulk Leak Detection Gas	Nitrogen or Dry Compressed Air
Bulk Leak Detection Pressure	5.5 MPa (Customizable Based on Customer Requirements)
Fine Leak Detection Gas	100% Helium
Fine Leak Detection Pressure	1.0 MPa (Customizable Based on Customer Requirements)
Alarm Leak Rate	1.0 MPa (Customizable Based on Customer Requirements)
Production Cycle Time	480 Small Workpieces or 240 Large Workpieces in 8 Hours (Customizable)
Helium Recovery Rate	≥98%

Manufacturing Partnership

As a professional OEM and ODM manufacturer with full in-house R&D, production, and after-sales capabilities, we provide global after-sales support, strict quality control, and decades of expertise in vacuum and automated testing technology.

Detailed images

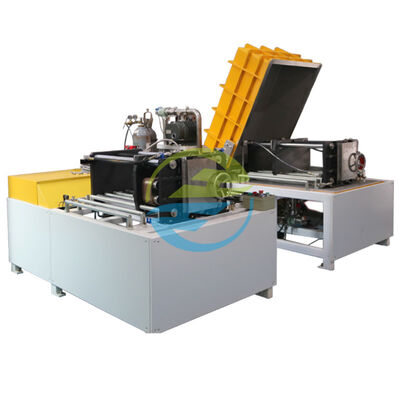

Plate Heat Exchanger Helium Leak Detection System | High Precision 2 Stations Leak Testing Equipment with ≥98% Helium Recovery 0
