Automotive Bump Simulation Vibration Test Bench for Auto Parts Durability Testing

Brand Name:	HeJin
Model Number:	HJ-APTE0307
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	L/C,T/T
Supply Ability:	15 set per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(Cost Additional)

Relative Humidity:

≤85%RH

Power Supply Conditions:

Three-phase Five-wire

Voltage Range:

AC 380V

Frequency Fluctuation Range:

(50±0.5)HZ

Protective Grounding Resistance:

<4Ω

Ambient Temperature:

5°C~+28°C (Average Temperature ≤28°C Within 24 Hours)

Packaging Details:

Plywood

Highlight:

automotive bump simulation test bench

auto parts vibration test equipment

durability testing bench for auto parts

Product Description

Automotive Bump Simulation Vibration Test Bench

Comprehensive durability testing solution for auto parts under simulated road vibration conditions.

Product Overview

In the automotive industry, durability is essential. Every vehicle component must withstand continuous vibration from road conditions, engine operation, and vehicle movement. This vibration test bench recreates real-world conditions in a controlled laboratory environment, simulating long-term road vibration and mechanical shock to help engineers detect potential structural weaknesses, loose connections, or fatigue damage before products reach the market.

This testing system is widely used for auto parts reliability testing, packaging transportation testing, and durability verification of vehicle components. The equipment features high stability, adjustable vibration frequency, and programmable test cycles, allowing engineers to replicate different road conditions including rough terrain, highway vibration, and transportation shocks.

Key Features

Realistic Road Vibration Simulation: Reproduces vibration environments caused by vehicle driving, transportation, and road bumps to ensure accurate durability testing.
Adjustable Vibration Frequency: Wide frequency range allows simulation of different driving conditions and transportation environments.
Stable Mechanical Structure: Reinforced frame design maintains stable vibration output and ensures long-term testing accuracy.
Programmable Testing Control: Operators can set vibration frequency, testing duration, and cycle parameters to simulate different usage scenarios.

International Reference Standards

IEC 60068-2-6 - Environmental testing – Test Fc: Vibration (sinusoidal)
- Clause 5: Test conditions and procedures
- Clause 6: Mounting of specimens
- Clause 7: Test severity levels
ISO 16750-3 - Road vehicles – Environmental conditions and testing for electrical and electronic equipment
- Clause 4.1: Mechanical vibration tests
- Clause 4.3: Random vibration simulation
ASTM D999 - Standard Test Methods for Vibration Testing of Shipping Containers
- Method A1: Fixed displacement vibration testing
- Method B: Resonance search vibration testing

Technical Parameters

Test Item	Parameters
Test Load	0~1000KG
Frequency Range	100~300RPM
Amplitude Range	1 inch (25.4MM)
Vibration Mode	Rotary
Simulated Vehicle Speed	25~40KM/H
Workbench Surface	1600x1600MM
Guardrail Height	800MM
Control Motor	AC Variable Frequency Motor
Power Supply Voltage	AC380V 50HZ
Machine Weight	Approx. 1200KG

Test Objects

Automotive electronic components
Auto spare parts
Vehicle control modules
Automotive plastic parts
Automotive connectors

Test Items

Structural durability
Mechanical fatigue resistance
Looseness of internal components
Connector reliability
Packaging protection performance

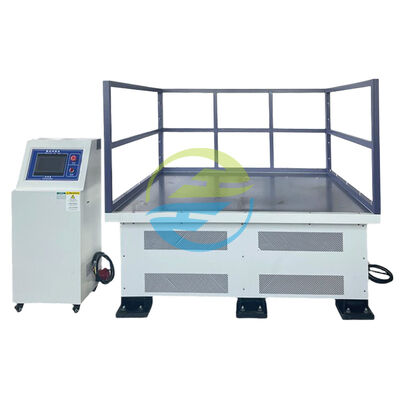

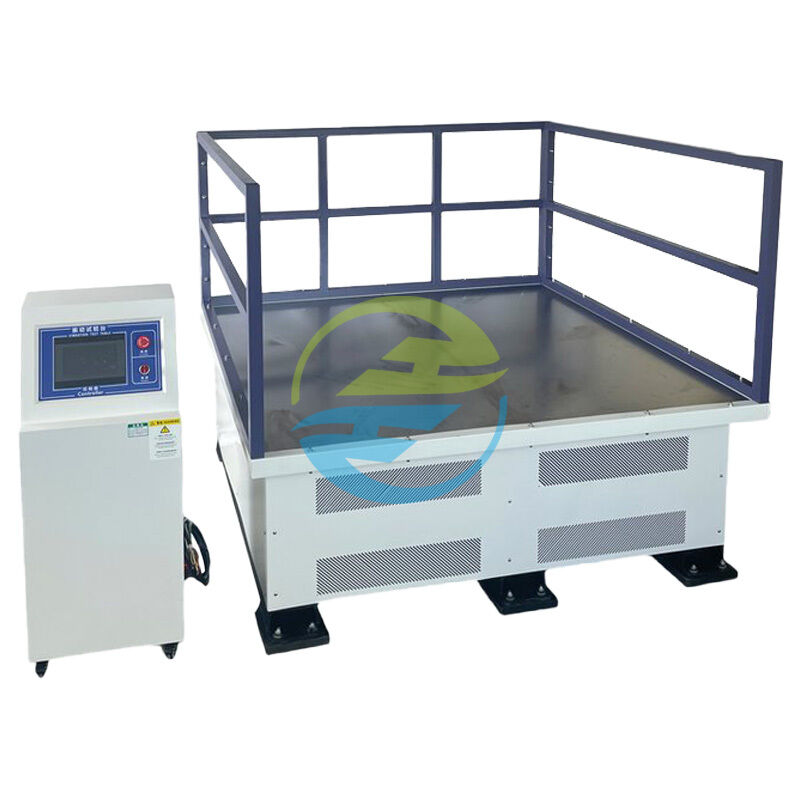

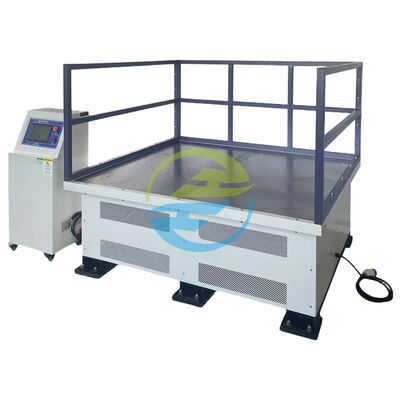

Product Image

Frequently Asked Questions

What industries use this vibration test bench?

It is widely used in the automotive industry, auto parts manufacturing, packaging testing laboratories, and electronic product testing facilities.

Can the vibration frequency be customized?

Yes. The vibration frequency and amplitude can be adjusted or customized according to specific testing requirements.

What types of products can be tested?

The equipment is suitable for automotive electronics, mechanical components, packaging products, and assembled modules.

Can the test platform size be customized?

Yes. Platform dimensions can be customized to accommodate larger or special-shaped test samples.

Do you provide installation support?

Yes. We provide installation guidance, operation manuals, and remote technical support.
