High Efficiency 3 Stations Relay Automatic Helium Leak Detection Equipment Advanced And Precise Solution For Leak Testing With Enhanced Productivity And Reliability

Minimum Order Quantity : 1 Set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 90 Days
Payment Terms : L/C, T/T Supply Ability : 10 Set per month
Place of Origin: China Brand Name: HeJin
Certification: Calibration Certificate(Cost Additional) Model Number: HJ038

Detail Information

Leak Detection Stations: 3 Stations Leak Detection Gas: 100% Helium
Leak Detection Pressure: 0.5MPa Alarm Leak Rate: 1.0E-9Pa.m³/s
Production Cycle: 24s/2 Pieces Maximum Leak Detection Accuracy: 5.0E-10Pa.m³/s
Highlight:

High Efficiency Helium Leak Detection Equipment

,

3 Stations Helium Leak Detection Equipment

,

Automatic Helium Leak Detection Equipment

Product Description

High Efficiency 3 Stations Relay Automatic Helium Leak Detection Equipment: Advanced and Precise Solution for Leak Testing with Enhanced Productivity and Reliability



Operation Process

Testing Sequence: The equipment's operation starts with the vacuum chamber closing. A major leak test is conducted first. If the vacuum level meets the set standard, the process proceeds; otherwise, it stops with a major leak indication. Then, the vacuum chamber is evacuated in stages to the set vacuum level. After suppressing the background signal, helium is filled into the workpiece. During the micro-leak test, if the detected helium signal exceeds the limit, the micro-leak indicator light turns on; otherwise, the pass indicator light is on. After testing, helium is purged, the chamber is filled with air, and the piping is purged. Finally, the chamber opens, and the workpiece is removed.

Chamber Operation Modes: The system supports simultaneous or sequential testing of three chambers (A, B, C), allowing for independent or synchronized operation to boost efficiency.

Installation Requirements

Professional Installation: Must be installed by trained professionals only.

Power Supply: Requires a three-phase 5-wire 380VAC power supply with 5KW power. The air switch should be at a height ≥1.5M from the ground and ≤2M from the main unit, with electrical parameters specified.

Gas Sources: Needs bottled helium (40 liters 12MPa) ≥1 bottle with a 0.6MPa pressure reducing valve, bottled high-purity nitrogen (≥99.999%) with a 0.2MPa pressure reducing valve, and clean compressed air ≥0.55MPa with a 1/2″ ball valve. The distance between gas source interfaces and the machine should be ≤1M.

Exhaust Pipe: An outdoor exhaust pipe with a diameter ≥3/4″ is required, and its interface should be ≤1M from the machine.



Product Parameters with Leak Testing Equipment:

Leak detection stations 3 Stations
Leak detection gas 100% Helium
Leak detection pressure 0.5MPa
Alarm leak rate 1.0E-9Pa.m³/s
Production cycle 24s/2 Pieces
Maximum leak detection accuracy 5.0E-10Pa.m³/s

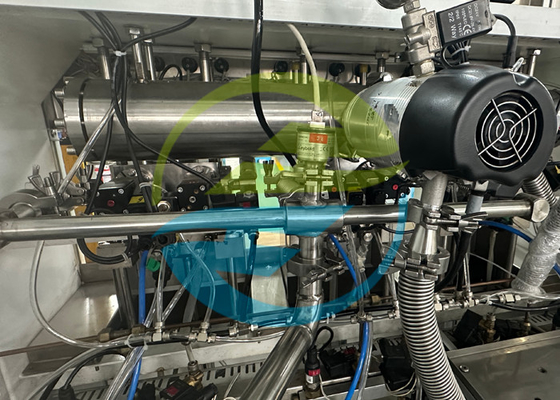

Product Image with Leak Testing Equipment:

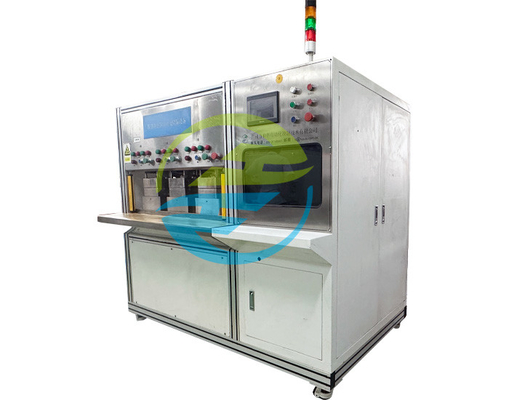

High Efficiency 3 Stations Relay Automatic Helium Leak Detection Equipment Advanced And Precise Solution For Leak Testing With Enhanced Productivity And Reliability 0

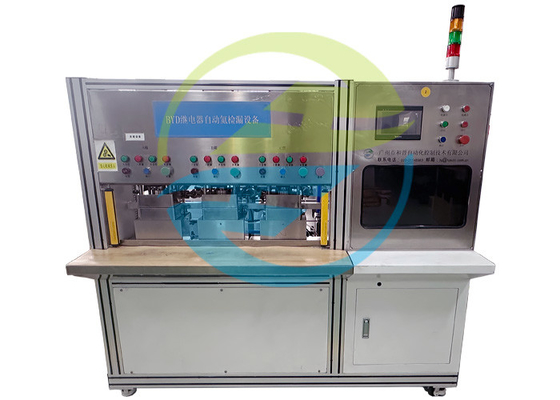

High Efficiency 3 Stations Relay Automatic Helium Leak Detection Equipment Advanced And Precise Solution For Leak Testing With Enhanced Productivity And Reliability 1

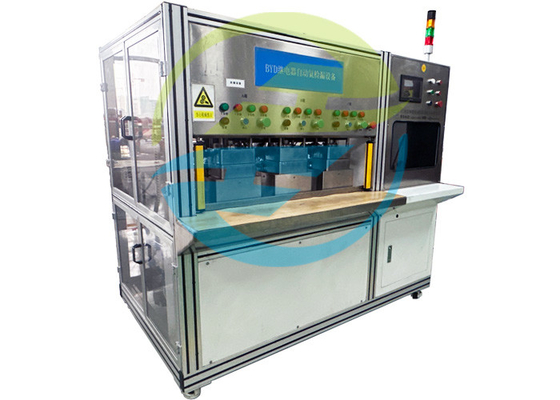

High Efficiency 3 Stations Relay Automatic Helium Leak Detection Equipment Advanced And Precise Solution For Leak Testing With Enhanced Productivity And Reliability 2



Advantage Service



Custom Design: The company has an in-house developing and designing team that can create unique products based on customer ideas.

Skilled Workers: All employees are experienced and skilled, providing reliable technical support.

Global After-sales: The working and sales teams ensure fast and efficient after-sales service for products sold globally.



Company Information



Company Profile: Guangzhou Hejin Automation Control Technology Co., Ltd. specializes in R&D, manufacturing, and sales of technology-intensive industrial equipment.

Product Range: Their leading products include vacuum helium leak detection equipment, automatic brazing machines, lean production lines, and laboratory testing equipment, used in various industries.

Expertise and Innovation: Under Mr. Li Jianhe's guidance, with expertise in vacuum and automated testing, the company has core technologies and many patents.

Production and Market: They follow a novel production model and have introduced diverse special equipment, serving both domestic and international markets (America, Europe, Asia, Africa, etc.).
