Leak Detection 2 Stations Plate Heat Exchanger Helium Leak Detection System High Efficiency For Leak Testing Equipment With Advanced Functionalities

Minimum Order Quantity : 1 Set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 90 Days
Payment Terms : L/C, T/T Supply Ability : 10 Set per month
Place of Origin: China Brand Name: HeJin
Certification: Calibration Certificate(Cost Additional) Model Number: HJ027-1

Detail Information

Leak Detection Stations: 2 Stations Test Chamber Size: Customized Based On Customer Requirements
Bulk Leak Detection Gas: Nitrogen Or Dry Compressed Air Bulk Leak Detection Pressure: 5.5 MPa (Customizable Based On Customer Requirements)
Fine Leak Detection Gas: 100% Helium Fine Leak Detection Pressure: 1.0 MPa (Customizable Based On Customer Requirements)
Alarm Leak Rate: 1.0 MPa (Customizable Based On Customer Requirements) Production Cycle Time: 480 Small Workpieces Or 240 Large Workpieces In 8 Hours
Helium Recovery Rate: ≥98% Warranty Period: 1 Year
Highlight:

Precise Leak Detection System

,

Advanced Leak Detection System

,

2 Stations Leak Detection System

Product Description

Leak Detection 2 Stations Plate Heat Exchanger Helium Leak Detection System: High-Efficiency and Precise Solution for Leak Testing Equipment with Advanced Functionalities



Product Introduction

Detection Principle and Process: This helium leak detection system, based on the principle of using helium as a tracer gas, has different detection cycles for plate heat exchangers. In the internal leak detection cycle, helium is filled into chamber B to detect leaks between chamber A and B. In the external leak detection cycle, both chambers A and B are filled with helium to check for external leaks of the chamber. The helium leak detector enables accurate and rapid determination of the leakage condition with high precision.





Product Parameters with Leak Testing Equipment:

Leak Detection Stations

2 Stations

One is used to detect internal leakage of workpieces, and the other is used to detect external leakage of workpieces

Test Chamber Size Customized Based on Customer Requirements
Bulk Leak Detection Gas Nitrogen or Dry Compressed Air
Bulk Leak Detection Pressure 5.5 MPa (Customizable Based on Customer Requirements)
Fine Leak Detection Gas 100% Helium
Fine Leak Detection Pressure 1.0 MPa (Customizable Based on Customer Requirements)
Alarm Leak Rate 1.0 MPa (Customizable Based on Customer Requirements)
Production Cycle Time 480 Small Workpieces or 240 Large Workpieces in 8 Hours (Customizable Based on Customer Requirements)
Helium Recovery Rate ≥98%

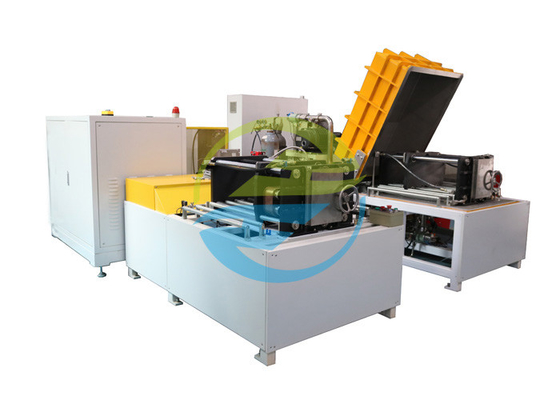

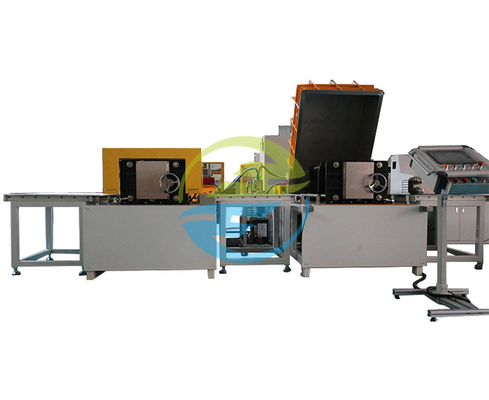

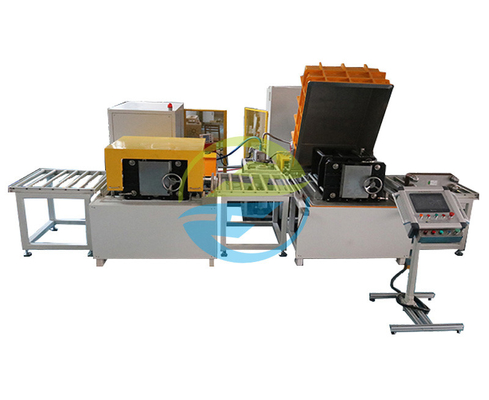

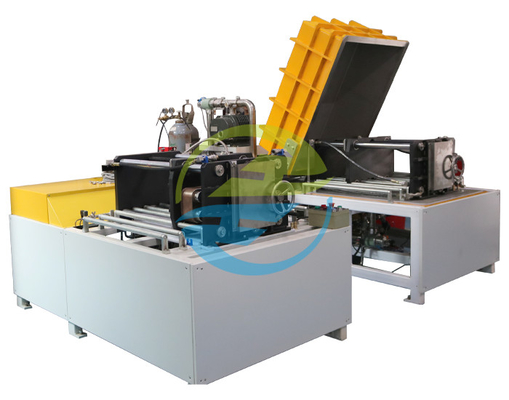

Product Image with Leak Testing Equipment:

Leak Detection 2 Stations Plate Heat Exchanger Helium Leak Detection System High Efficiency For Leak Testing Equipment With Advanced Functionalities 0



Leak Detection 2 Stations Plate Heat Exchanger Helium Leak Detection System High Efficiency For Leak Testing Equipment With Advanced Functionalities 1



Leak Detection 2 Stations Plate Heat Exchanger Helium Leak Detection System High Efficiency For Leak Testing Equipment With Advanced Functionalities 2



Advantage Service

Custom Design Capability: The company has its own developing and designing team, ensuring the provision of technological and innovative products. Customers can share their ideas, and the company will create unique designs based on them.

Skilled Technical Support: All workers are experienced and skilled, providing reliable technical support.

Global After-sales Service: The combined efforts of the working and sales teams ensure fast and efficient after-sales service for products sold worldwide.

Company Information

Company Profile: Guangzhou Hejin Automation Control Technology Co., Ltd. is a modern enterprise specializing in the research, development, manufacturing, and sales of technology-intensive industrial equipment.

Product Range: Their leading products include vacuum helium leak detection equipment, automatic brazing machines for gas/liquid filling and recovery systems, lean production lines, and laboratory testing equipment. These products are widely used in various industries such as automotive, refrigeration, power generation, household appliances, electronics, pharmaceuticals, plumbing systems, and military applications.

Expert Leadership and Innovation: Under the guidance of Mr. Li Jianhe, an expert in vacuum and automated testing technologies, the company has proprietary core technologies and a large number of invention and utility patents.

Production and Market Reach: The company follows a novel production paradigm and has continuously introduced different types of special equipment to the market. It meets the domestic market demand and exports to countries and regions in America, Europe, Asia, and Africa.
