Production Cycle Time ≥500 pcs/h Ceramic Component Multistation Helium Mass Spectrometer Leak Test Equipment
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 60 Days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 Set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(Cost Additional) | Model Number: | HJ124 |
|
Detail Information |
|||
| Size: | ≤1000 (L) × 800 (W) × 1200 (H) Mm | Power: | 5KW |
|---|---|---|---|
| Package Filling Pressure: | 2~2.5 Kpa | Alarm Leak Rate: | 1.44E-4 Mbar.l/s |
| Highlight: | Suction Gun Leak Testing Equipment,5KW Battery Pack Leak Testing Equipment,HJ124 Leak Testing Equipment |
||
Product Description

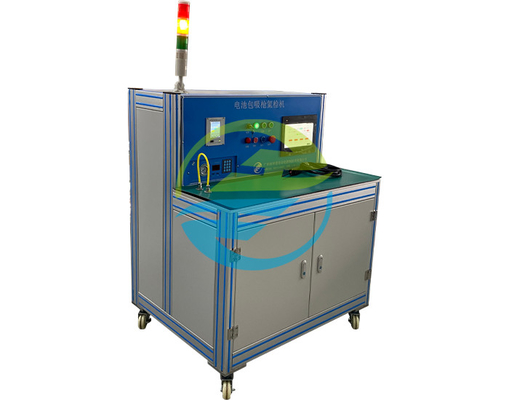

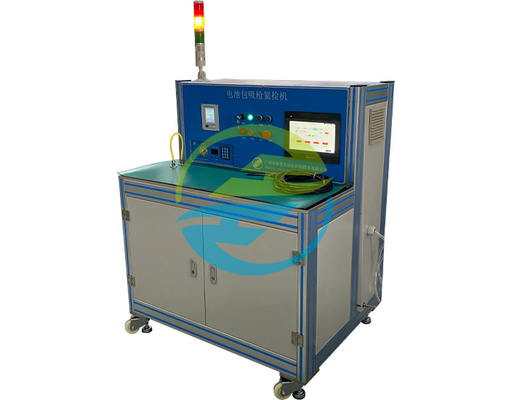

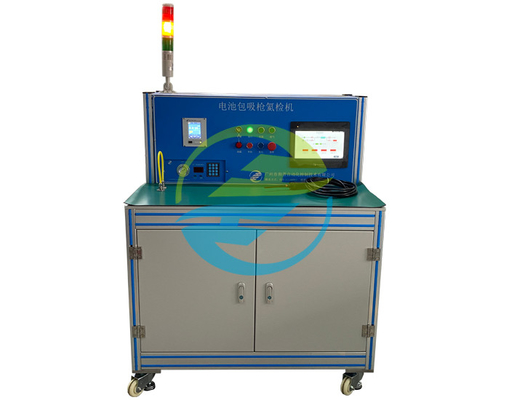

Power 5KW Battery Pack Helium Leak Detector with Suction Gun HJ124 Leak Testing Equipment
Product Overview:
This equipment is mainly used for airtightness testing of PACK battery packs, including evacuation, helium filling, pressure and concentration detection, as well as helium leak detection using a suction gun.
Product Working Principle:
After a certain pressure of helium is filled into the workpiece, a pressure difference is formed between the inside and outside of the workpiece. If there is a leak in the outer shell of the workpiece, the helium inside the workpiece will leak to the outer surface of the workpiece. The operator will use a suction gun to scan the outer surface of the workpiece. The leak detector can accurately and quickly determine the leakage situation of the workpiece, and the system will give an alarm prompt if there is a leakage.
Product Features:
Automatic Gas Concentration Monitoring: The system has automatic helium concentration monitoring functions as well as concentration alarm features.
Integrated Commissioning Technical Services: Hejin can provide commissioning services for connecting the recovery system with the customer's existing helium leak detection equipment.
Product Parameters:
| Size | ≤1000 (L) × 800 (W) × 1200 (H) mm |
| Power | 5KW |
| Energy Consumption | AC 220V, 50 Hz, 3-phase 5-wire system, maximum power 5KW |
| Package Filling Pressure | 2~2.5 kpa |
| Package Evacuation Pressure | -2~-3 kpa |
| Alarm Leak Rate | 1.44E-4 mbar.l/s |
| Test Mode | Suction Gun Mode |
| Concentration Monitoring | Equipped with an automatic online real-time helium concentration monitor, capable of automatically controlling helium filling, accuracy ±2% |
| Cycle Time | ≤2 minutes (excluding manual scanning time with suction gun) |
| Connectors | 2 connectors (1 for hard package, 1 for soft package) |
Our advantage service:
We possess a professional R&D and design team that leverages their proficient skills and innovative thinking to provide customers with uniquely crafted product solutions. If you have any novel ideas or unique needs for a product, please feel free to share them with us, and we will carefully craft a one-of-a-kind product design based on your creativity and expectations, meeting all your aspirations.
Technical support:
All our workers are experienced and skilled.
After sale service:
Our professional working team and outstanding sales team are committed to providing our clients with products worldwide and guaranteeing fast and efficient after-sales services to meet various needs.
About Us:
Guangzhou Hejin Automation Control Technology Co., Ltd. is a modern enterprise specialized in the research and development, manufacturing, and sales of technology-intensive industrial equipment. The company's leading products include vacuum helium leak detection equipment, automatic brazing machines for gas/liquid filling and recovery systems, lean production lines, and laboratory testing equipment. These products are widely used in industries such as automobiles, refrigeration, power, home appliances, electronics, pharmaceuticals, plumbing, military, and others. Led by Mr. Li Jianhe, an expert with profound knowledge in vacuum and automated testing equipment, the company possesses its own core technology and holds multiple invention and utility model patents. Relying on a high-level talent team, the company has adopted a new production model focused on development and design, assembly and debugging, as well as after-sales service, and provides products that are suitable for customers' specific usage and technical requirements. Since its establishment, the company has introduced various types of specialized equipment to the market, satisfying domestic market demand while also exporting to countries and regions in America, Europe, Asia, and Africa.
