Production Cycle Time ≥500 pcs/h Ceramic Component Multistation Helium Mass Spectrometer Leak Test Equipment
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 80 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 1 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate/ CE(cost additional) | Model Number: | HJ-102 |
|
Detail Information |
|||
| Helium Recovery Rate: | ≥90% | Helium Control Concentration Range: | 50% - 90% Adjustable |
|---|---|---|---|
| Helium Concentration Control Accuracy: | ± 5% | Output Pressure: | 0.05-0.25MPa Adjustable |
| Vacuum Pump Pumping Speed: | ≥25m3/h | ||
| Highlight: | Helium Filling And Recovery Machine,Adjustable Helium Filling And Recovery Machine |
||
Product Description

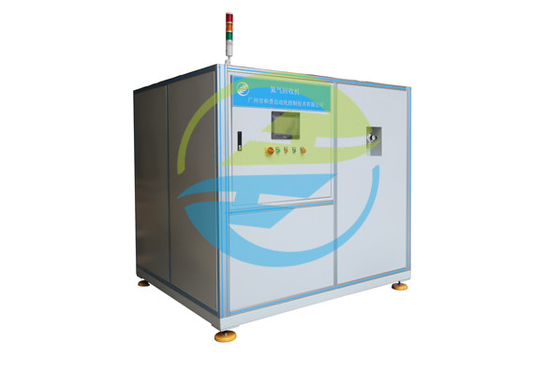

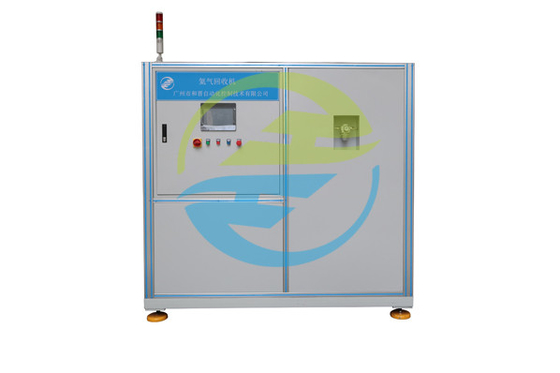

Helium Filling and Recovery Machine Helium Recovery Rate ≥90% Helium Control Concentration Range 50% - 90% Adjustable
Introduction of Helium Filling and Recovery Machine:
The helium filling and recycling machine is specially designed and manufactured for the helium filling and recycling of helium leak detection systems. Through the recycling of helium, helium is recycled to achieve the goal of reducing the cost of using helium. The recovery machine is used in conjunction with a helium detection system. After the helium leak detection is completed, helium is recovered, pressurized, and stored in a gas storage tank. It is transported through a pipeline to the helium inlet of the helium detection device. One recovery machine meets the requirements of two helium leak detection systems, and each system can be controlled separately.
Feature of Helium Filling and Recovery Machine:
1. Overall design idea of equipment: the design of equipment shall fully consider the progressiveness, rationality, reliability, practicability, safety and maintainability of the equipment.
2. To protect customers' clean testing workshop from helium contamination, helium is used at all connections of the equipment to detect leaks, ensuring that the entire equipment does not produce helium leaks.

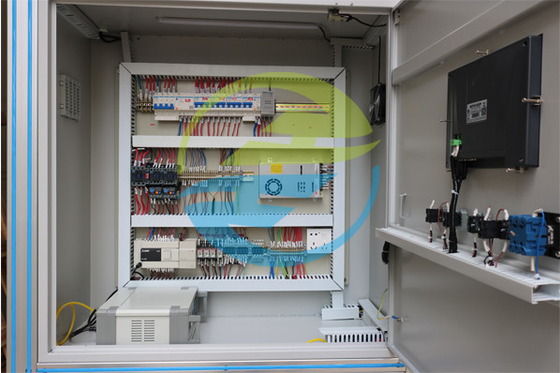

3. The system is controlled by a PLC. And display various information on a touch screen. The screen has a main menu and membrane buttons, and can be used to:
a. Parameter setting
b. Production process control
c. Production status monitoring
d. Fault alarm and self-diagnosis
e. Manual Maintenance
4. Automatic helium replenishment: When the total amount of helium in the system is less than the set value, helium is automatically replenished from the external helium device until the total amount of helium reaches the set value.
5. Automatic gas concentration monitoring: The system has automatic helium concentration monitoring function and concentration alarm function.
6. Joint debugging technical services: We can provide online debugging services for the recovery system and the customer's existing helium leak detection system.
Parameter of Helium Filling and Recovery Machine:
| Model | HJ102 |
| Helium recovery rate |
≥90%(Recovery rate of helium discharged from helium leak detection system) During the recovery process, there should be no external air or foreign matter mixed into the recovered helium. |
| Helium control concentration range | 50% - 90% adjustable. When the concentration of recovered helium is higher than the control range, the helium supplied by the recovery machine will not be adjusted based on the recovered concentration. When the helium concentration in the storage tank of the recovery machine is lower than the helium concentration required by the helium detector, the helium concentration can be reached by adding helium, (50% - 90% adjustable) |
| Helium concentration control accuracy | ± 5%. When the helium concentration approaches the upper limit of the set value, pure helium will not be added. When the lower limit of the set value is approached, pure helium will be automatically added to the set concentration. When the concentration of recovered helium is too low and pure helium is added according to the controlled helium supply target value, and the total amount of gas in the circulating system continues to increase, the recovery machine can automatically discharge the excess gas in the system through the pipeline into the workshop, with an alarm warning. |
| Concentration monitoring | Equipped with an automatic online real-time helium concentration monitor, it can automatically control the filling of helium, provide equipment principles, ensure accuracy of ± 2%, and provide equipment operation manuals and equipment instructions. |
| Output pressure | 0.05-0.25MPa adjustable |
| Vacuum pump pumping speed | ≥25m3/h |
| The inlet of the pipeline and the outlet of the vacuum pump are equipped with filters for filtering oil, water, and dust from the recovered helium gas to ensure the cleanliness of the helium gas. The grease content is ≤ 10ppm, and the dust reaches ISO level 5. The helium gas is dried to make the water content ≤ 200ppm; | |
| The equipment adopts three stages of tanks, namely buffer tank, storage tank, and high-pressure tank | |
| The corrosion resistance treatment of the helium recovery machine system should effectively avoid the corrosion of trace organic polymer substances | |
