1 Vacuum Chamber Auto Parts Test Equipment Leak Test For EV Battery Cells

Brand Name:	HeJin
Model Number:	HJ-LT-1
MOQ:	1 set
Price:	Negotiable
Supply Ability:	5 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Function:

Leak Test For EV Battery

Test Product:

EV Battery System

Machine Type:

Vacuum Chamber Type

Chamber Qty.:

1 Chamber

Cycle Time:

34s/pc

Leakage Rate:

10-3 To 10-6 Scc/s

Packaging Details:

Plywood

Highlight:

EV Battery Auto Parts Test Equipment

Vacuum Chamber Auto Parts Test Equipment

Product Description

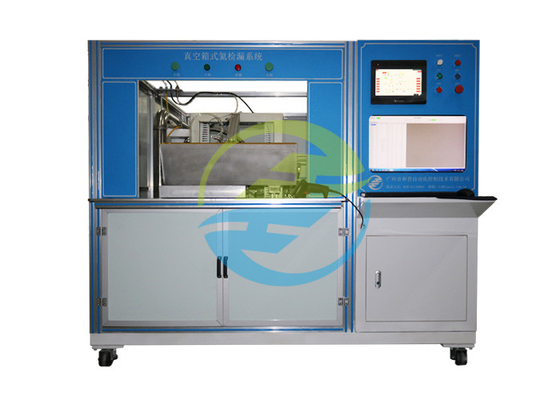

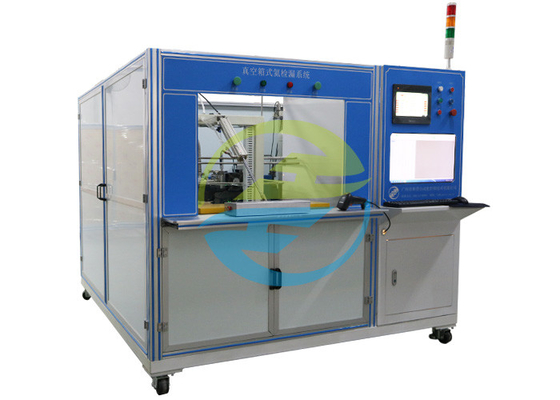

Auto Parts Test Equipment Leak Test for EV Battery Cells With 1 Vacuum Chamber

Leak Test for EV Battery Cells Equipment basic function:

This equipment is a vacuum chamber helium leak detection system for the steel-cased battery cell, which mainly contains the processes of battery code scan, loading, evacuation, helium filling, helium leak inspection, and unloading. Then the helium signal in the leak detection chamber is detected by the helium leak detector, which can determine the leakage of the workpiece with high precision and rapid accuracy.

Challenges Leak Testing EV Batteries:

Billions of lithium-ion battery cells are manufactured every year for use in electric, hybrid-electric, autonomous vehicles, medical devices, and a variety of consumer electronics products. Most quality issues occur during battery-cell production, battery-module assembly, or battery-pack assembly and include:

leaks allowing humidity or water into the cell

leaks allowing electrolytes out of the cell

modules and housing integrity

Historically, pressure and visual test methods have been used for soft-pouch, cylindrical and prismatic cells, however, these methods can be slow, unreliable, and may miss small lithium-ion leaks that, if left undetected, can create big quality and safety problems.

Helium leak testing systems are also commonly used in the automotive manufacturing industry.

Parameter of Leak Test for EV Battery Cells Equipment:

Alarm leak rate	5E-5 mbar.l/sec
Number of testing stations	Single station
Number of vacuum chamber	1
Helium filling pressure	0-0.5MPa
Gross leak detection method	Negative pressure detection of gross leaks
Production cycle	34 seconds/piece
Product sealing method	Automatic
Loading and unloading products	Manual
Fixture	2 sets
