5W Static Burst Pressure Oil Filter Test Machine ISO 4548-6-2012

Brand Name:	HeJin
Model Number:	AM0056
MOQ:	1 set
Price:	Negotiable
Supply Ability:	5set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Pressure Sensor:

Accuracy 0.01bar

Maximal Test Pressure:

70 Bar

Test Liquid:

SAE 5W

Packaging Details:

Plywood

Highlight:

5W Oil Filter Test

4548-6-2012 Oil Filter Test

4548-6-2012 burst pressure test

Product Description

Static Burst Pressure Oil Filter Test Machine ISO 4548-6-2012

Product overview:

The Static Burst Pressure Test Rig for Oil Filter is used for testing full-flow lubricating oil filters for internal combustion engines to determine there ability to withstand a static pressure objective and to determine their burst pressure and failure mode concerned.

It does not apply to filters for use in aeronautical applications or plastic components. Auto Parts Test Equipment

Test Principle:

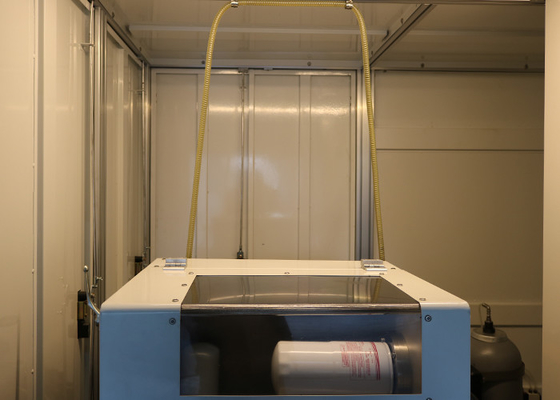

The filter is placed in an observable protective box with a safety protection device, and the filter is pressurized about 345kpa-690kpa per minute until the specified target pressure value and maintain for approximately 15 s until ultimate failure occurs, and the test liquid is recovered. During this period, the relevant values are recorded and a test report is formed. Auto Parts Test Equipment

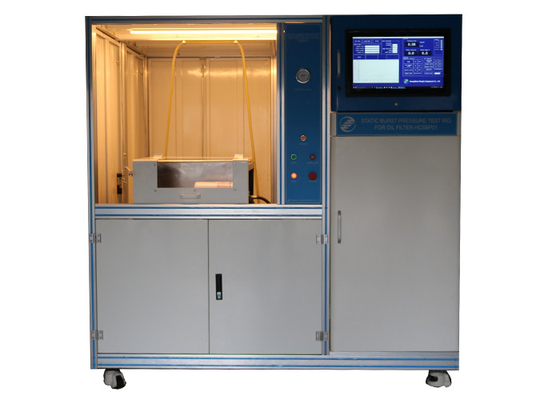

5W Static Burst Pressure Oil Filter Test Machine ISO 4548-6-2012 0

Standard:

The Static Burst Pressure Test Rig for Oil Filter meet the standard of ISO 4548-6-2012, GB/T 8243.6-2017. Auto Parts Test Equipment

Filter to be tested:

Full-flow lubricating oil filters.

Parameters:

Pressure sensor	0-100bar, accuracy 0.01bar
Maximal test pressure	70 bar Auto Parts Test Equipment
Test liquid	SAE 5W
