0-300Mpa Auto Parts Test Equipment Automobile Water Tank Expansion Blasting Testing Machine

Brand Name:	HeJin
Model Number:	AM0045
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Test Pressure:

0-300Mpa

Pressure Resolution:

0.01Mpa

Pulse Test Frequency:

25-60times/min

The Test Medium:

Water, Hydraulic Oil

Packaging Details:

Plywood

Highlight:

300Mpa Auto Parts Test Equipment

Water Tank Auto Parts Test Equipment

Product Description

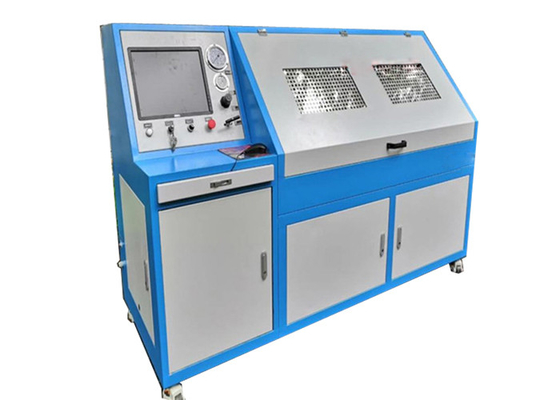

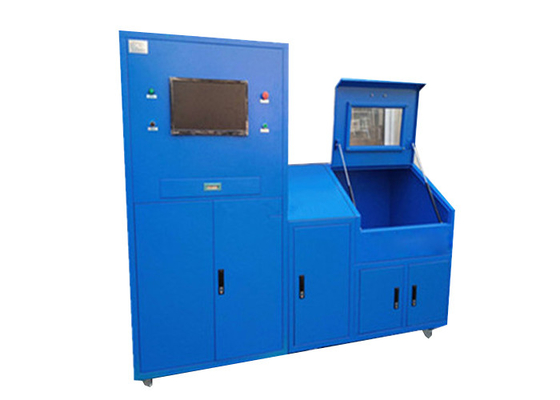

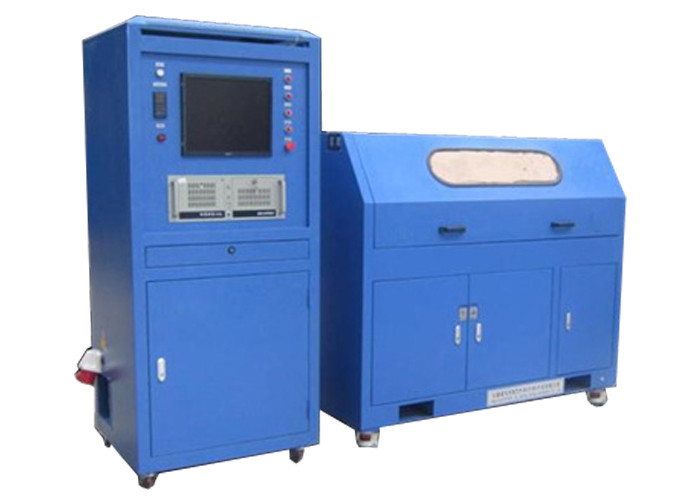

Automobile Water Tank Expansion Blasting Testing Machine 0-300Mpa Auto Parts Test Equipment

Products Introduction:

Automobile water tank expansion blasting testing machine ,Pulse pump generates pressure, pressure sensor collects pressure, operating software controls pressure, pressure pulse fatigue test is realized.Auto Parts Test Equipment

Scope of application:

Automobile expansion water tank, pressure water tank, gas storage tank.Auto Parts Test Equipment

Test sample:

Measuring range: 0 ~ 300mpa

Test pressure: 0-1mpa (can be customized according to requirements)

The test frequency: 0-1.5HZ

The test medium: water or oil

The test temperature: 150 degrees

Waveform: triangle wave, trapezoidal wave, square wave Auto Parts Test Equipment

Technical parameters:

Test pressure	0-300Mpa
Accuracy of pressure control	Test pressure upper limit +2%, lower limit -1%
Pressure resolution	0.01Mpa
Pulse test frequency	25-60times/min Auto Parts Test Equipment
The test medium	Water, hydraulic oil
Mode of operation	Computer automatic control/manual control
Installation method of specimen	The screw thread
Structural components	Pulse pressure generation system, control system, alarm system
