Automobile High And Low Temperature Chamber Formula Constant Wet / Humidity
Contact Person : Anglia Chen
Phone Number : +86 17724266108
WhatsApp : +8617724266108
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | AM0027 |
|
Detail Information |
|||
| Power Of Lamp Tube: | 40W / Branch | Light Pipe Brand: | US Q-LAB / Domestic (teelong) |
|---|---|---|---|
| Lights Pipe Life: | About 1,600 Hours | Board Temperature Range: | 50℃～63℃ |
| Cold Coagulation Test Temperature: | 50℃±3℃ | Condensation Humidity Range: | ≥75%RH |
| Temperature Uniformity: | ±3℃ | Temperature Fluctuation: | ±0.5℃ |
| High Light: | Motorcycle UV Accelerated Aging Chamber,ISO 4892-3 UV Accelerated Aging Chamber |
||
Product Description

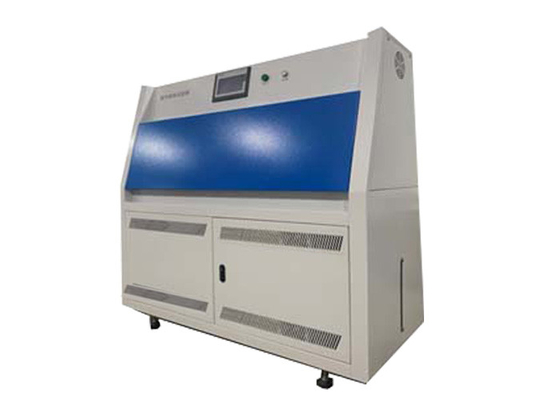

UV-accelerated aging chamber ISO4892-3:2006 Auto Parts Test Equipment
Products Introduction:
The UV accelerated aging box can simulate the harm caused by sunshine, rain and dew. The UV uses the fluorescent UV lamp to simulate the effect of sunlight exposure, and to simulate rainwater and dew with condensing moisture. The tested materials are tested in a cycle program of alternating light and moisture at a certain temperature.The UV takes days or weeks to reproduce the hazards from months to years outdoors.Hazard types include: fading, discoloration, light loss, powder change, cracking, turbidity, air bubbles, fragility, strength decline, and oxidation.UV trial data can help you choose new materials and assess how changes in formulas affect the durability of a new product.
It is widely used in paint and ink paint, resin, plastic, rubber, printing and packaging, aluminum profiles, adhesives, automobile, motorcycle industry, cosmetics, metals, electronics, electroplating, medicine, etc.Auto Parts Test Equipment
Meet the standards:
GB/T16585-1996, GB/T16422.3-2014, ISO4892-3:2006, GB / T14522-93, etc.Auto Parts Test Equipment
Parameters:
| Model | AM0027-UV-1 | AM0027-UV-2 | |
| product type | tower-type | Box type | |
| Inner box size mm (W * D * H) | 1140×400×500 | 1140×600×500 | |
| Exterior size mm (W * D * H) | 1340×630×1400 | 1420×700×1660 | |
|
Light Source |
Lights tube wavelength (Choose one) |
UVA-340, band 315 to 400 n m, and the irradiance was 0.35~1.2W/m2 | |
| UVA-351, band 351 to 400 n m, and the irradiance was 0.35~1.2W/m2 | |||
| UVB-313, band 280 to 315 n m, and the irradiance was 0.35~1.2W/m2 | |||
| Number of lamp tubes | Eight | ||
| Power of lamp tube | 40W / branch | ||
| Light pipe brand | US Q-LAB / Domestic (teelong) | ||
| Lights pipe life | About 1,600 hours | ||
| Equipment function | Basic function | Temperature, light, spray, and condensation | |
| Optional function | Irradiance display: equipped with a handheld or mounted irradiator (optional) | ||
| Lighting adjustment: dimming system | |||
| Technical index | Board temperature range | 50℃～63℃ Auto Parts Test Equipment | |
| Cold coagulation test temperature | 50℃±3℃ | ||
| Condensation humidity range | ≥75%RH | ||
| Temperature uniformity | ±3℃ | ||
| Temperature fluctuation | ±0.5℃ | ||
| Distance between samples and the lamp tube | 55mm Auto Parts Test Equipment | ||
| Central distance inside the lamp pipe | 65～70mm | ||
| Tower-type standard test piece size | 75×150mm 42 pieces | ||
| Test time | 1~9999 H, M, and S are adjustable | ||
| Safety protection system | Line order protection, electric leakage protection, super-temperature protection, abnormal protection | ||
| Equipment use conditions | Power supply: 220V; frequency: 50HZ; power: 4.5KW | ||
| Ambient condition | Temperature is 5℃ ~30℃; the relative temperature is 85%RH | ||
| Internal bile material | SUS304 stainless steel plate | ||
| Outer box material | SUS304 stainless steel / baking paint | ||
| Control system | Siemens touchscreen and PLC controller | ||
| Main components | France Schneider all electrical appliances and Japan Omron | ||
| Irradiation sensor | Import intelligent irradiation sensor, 0-5V signal output | ||
| Safety protection system | Line order protection, electric leakage protection, overtemperature protection, abnormal protection | ||
