Alternating Salt Spray Lab Auto Parts Test Equipment 0.05～0.17MPa

Brand Name:	HeJin
Model Number:	AM0026
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	10 set /month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Temperature Range:

Normal Temperature ~ + 70℃

Temperature Fluctuation:

±0.5℃

Temperature Departure:

±2℃

Heat Up:

5℃ / Min

Cool Down:

0.5℃ / Min

Humidity Range:

20%～98%R.H

Test Time:

0~999 H

Supply Source:

AC 380V± 10%, 50Hz ± 5%

Packaging Details:

Plywood

Highlight:

Lab Auto Parts Test Equipment

0.17MPa Auto Parts Test Equipment

Product Description

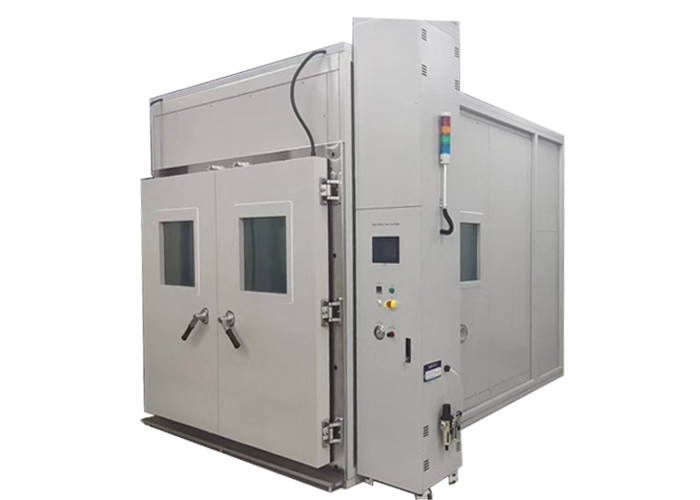

Alternating salt spray laboratory Auto Parts Test Equipment 0.05～0.17MPa

Products Introduction:

It is mainly used for the salt spray corrosion resistance of automobile power battery pack, automobile assembly and parts; It can simulate marine climate and assess the salt spray corrosion resistance of automobile assembly and parts and their protective layer.

Parameters:

2.1 Studio size	The 250025003000mm (W D H) can be ordered
2.2 Outline dimension	Approximately 320036004200 mm (W D H)
2.3 Temperature range	Normal Temperature ~ + 70℃ (Adjustable)
2.4 Temperature fluctuation	±0.5℃
2.5 Temperature departure	±2℃
2.6 Lift temperature time	Heat up: 5℃ / min Cool down: 0.5℃ / min
2.7 Humidity range	20%～98%R.H
2.8 Humidity deviation	±3%R.H(>75%R.H) ±5%R.H(≤75%R.H)
2.9 Salt fog settling amount	1～3ml/(h.80cm2) Adjustable (16-h average)
2.10 Test time	0~999 H, M, and S (Adjustable)
2.11 Spray method	Intermittence, continuity
2.12 Salt fog test process	① spray salt spray at 15 to + 35℃ for 2h, ② temperature (40 ± 2) ℃, relative humidity (93 ± 3)%, placed for 20 to 22 h; ③ temperature (23 ± 2) ℃, relative humidity of 45% to 55%, placed for 3 days. Stage① and stage② are one cycle, repeating 4 cycles and then proceed stage③ to form a test cycle and completing 4 test cycles at the test.
2.13 Meet a criteria	Lithium-Ion Power Battery Pack and Systems for GB / T 31467.3-2015 Electric Vehicles-Part 3: Safety Performance Requirements and Test Methods (Salt Spray Test) GB / T 2423.17-2012 (salt fog test) GB / T 2423.18-2012 (salt fog test)
2.14 Salt fog test process	① spray salt spray at 15 to + 35℃ for 2h, ② temperature (40 ± 2) ℃, relative humidity (93 ± 3)%, placed for 20 to 22 h; ③ temperature (23 ± 2) ℃, relative humidity of 45% to 55%, placed for 3 days. Stage and stage are one cycle, repeating 4 cycles after the cycle to form a test cycle and completing 4 test cycles at the test.
2.15 Supply source	Voltage AC 380V± 10%, 50Hz ± 5%, three-phase four-wire system + grounding wire
