Automobile High And Low Temperature Chamber Formula Constant Wet / Humidity
Contact Person : Anglia Chen
Phone Number : +86 17724266108
WhatsApp : +8617724266108
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | AM0023 |
|
Detail Information |
|||
| Workbench Diameter: | 1000mm | Rotary Speed Of The Turntable: | 3～11r/min |
|---|---|---|---|
| Turntable Bearing: | 100kg | Rain Drop Diameter: | 0.5～4.5mm |
| Drops Of Water: | ≥280L/m2.h | Water Pressure: | About 276Kpa |
| High Light: | Bearing 100kg Auto Parts Test Equipment,Turntable Auto Parts Test Equipment,11r/min Auto Parts Test Equipment |
||
Product Description

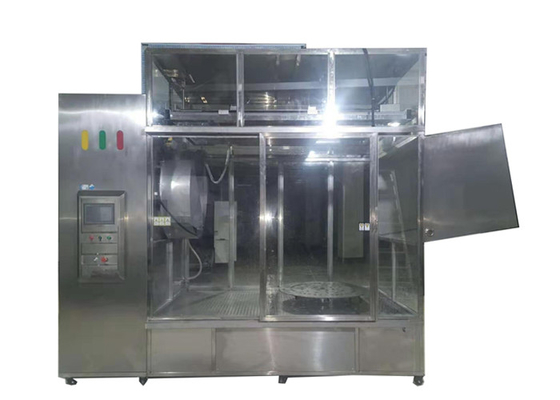

National military standard rain procedure I~III test room Turntable bearing 100kg Auto Parts Test Equipment
Products Introduction:
The rain test room complies with the national military standard GJB150.8A-2009 program I rain and rain test, and is used for simulating dynamic operation of military equipment or electronic products in various intensity rain environments, rain test methods and main parameters of military equipment, and wind rain test and rain test can be realized in a test box.
Meet the reinforcement test of the military standard GJB150.8A-2009 program for the test of large (test piece size) equipment. When the rain and rain blowing device cannot be used, the program II shall be considered.The program does not simulate natural rainfall, but improves the credibility of equipment waterproofing.
Procedure III is applicable to equipment that usually prevents rain proof but may be exposed to dripping due to condensation or upper surface leakage.Dripping test has two variables: a) equipment encountered drops of water (generally condensate); b) equipment exposed to severe condensation or upper surface leakage.
Meet the standards:
Procedure I, procedure, procedure I I I test of the GJB150.8A-2009 standard.
Parameters:
| 3.1 system of subject | |
| Internal space size | 450020002700mm (W D H), available for order |
| outline dimension | Approximately 700040002800mm (W D H) |
| Internal box material | SUS304 stainless steel |
| The main body material | Square-pass frame + tempered glass |
| Workbench diameter | 1000mm |
| rotary speed of the turntable | 3～11r/min |
| Turntable bearing | 100kg |
| Rotation direction of turntable | It can rotate at 360 degrees and can be tested in six different directions of the sample |
| 3.2 Procedure rain and rain | |
| Horizontal wind speed | 18m/s, making the raindrops blow the subjects evenly at 45 ° angles |
| Rain drop diameter | 0.5～4.5mm |
| Needle hole distance | 20×20mm |
| Dripping area | 1000×1000mm(W ×D ) |
| 3.3 Procedure reinforcement test | |
| Water pressure | About 276Kpa |
| Rain drop diameter | Square grid grid rays within the 0.5mm~Φ4.5mm range to achieve maximum surface coverage. |
| Spray nozzle | The nozzle angle is adjustable |
| Spray nozzle layout |
Within the surface range of receiving rain for every 0.56 ㎡ and at least one nozzle at 48mm from the subject surface, Nozzle spacing: 710, m m 710 mm |
| 3.4 Procedure III Dripping test | |
| Dripping area | 1000×1000×120mm(D×W×H) |
| Raindrop hole diameter | The drip hole diameter is 0.33mm, the dripping distance is 20mm~25.4mm, the water drops, can simulate natural rainfall |
| Drops of water | ≥280L/m2.h |
| 3.5 Control system | |
| Controller system |
1) The 7-inch touch screen controller + color screen human-computer interface 2) Display and control the working state of the water pressure, flow, and test time of the shower test 3) Display resolution: precision of 0.1, time of 1s, wind speed of 0.1m, workbench speed of 1rpm, and water flow rate of 0.1L 4) Communication function: Ethernet interface and USB communication interface, which can be connected with the microcomputer, with data recording and printing function. |
| Run mode | The program controls the run |
| Preset test time | 1 S ~ 9999 The H59M59S is arbitrarily adjustable |
| power requirement | AC380V (three-phase and five lines); 50Hz |
| Safety protection device | Leakage protector, fan overheating, overcurrent protection, water shortage protection, alarm sound warning |
