Automobile High And Low Temperature Chamber Formula Constant Wet / Humidity
Contact Person : Anglia Chen
Phone Number : +86 17724266108
WhatsApp : +8617724266108
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | AM0022 |
|
Detail Information |
|||
| Rotary Speed: | 1～3 R/min | Preset Test Time: | 1S~9999 |
|---|---|---|---|
| Water Spray Pressure: | 30~100 KPa | Power Supply: | 380V |
| Frequency: | 50HZ | Power: | 3KW |
| High Light: | IPX56 Rain Test Chamber,IEC 60529 Rain Test Chamber |
||
Product Description

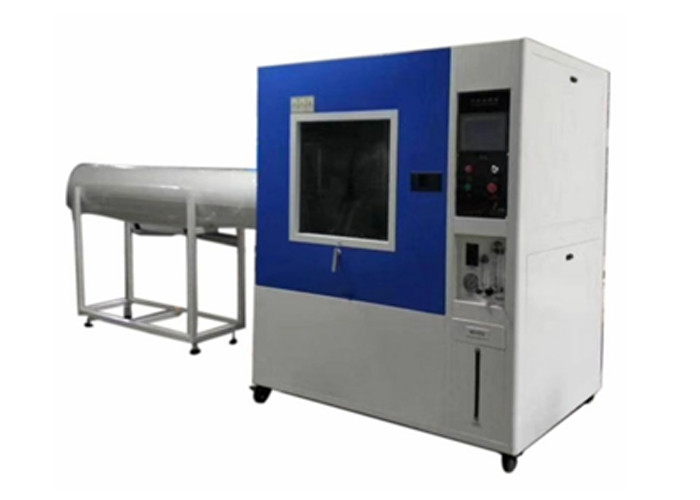

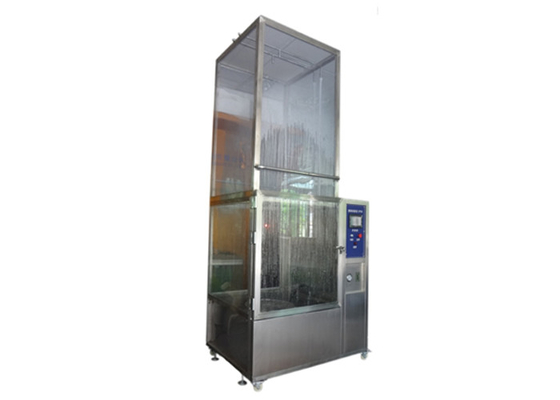

IPX56 Rain test chamber IEC 60529 ISO20653 IEC60068 Auto Parts Test Equipment
Products Introduction:
The main function of this equipment is to test the performance of products during storage, transportation and use in rainy climate. It is widely used in electrical electronics, lamps, cabinets, electrical components, automobiles, motorcycles and parts under simulated rainy climate conditions. After testing, the performance of the product is determined after the verification, so that product design, improvement, verification and factory inspection.
Meet a criterion:
GB4208-2017, IEC 60529:2013, ISO20653:2006, GB2423.38-2005, IEC60068-2-18:2000 etc.
Parameters:
| Model | AM0022-IPX56-216V | AM0022-IPX56-512V | AM0022-IPX56-1000V |
| Inner box size mm (W * D * H) | 600×600×600 | 800×800×800 | 1000×1000×1000 |
| Vertical outer box size mm (W * D * H) | 920×660×3600 | 1200×860×3600 | 1400×1060×3800 |
| Horizontal outer box dimensions mm (W * D * H) | 3600×660×1750 | 3600×860×1750 | 3800×1060×1800 |
| Turntable diameter mm | 300 | 400 | 600 |
| Loadable weight kg | 20 | ||
| Number of sprinkler heads | Two; 1 IPX5 nozzle and 1 IPX6 nozzle | ||
| The jet orifice diameter | 6.3 mmIPX5 (Grade) | ||
| 12.5 mmIPX6 (Grade) | |||
| Water jet flow | 12.5 ± 0.625 (L/min) IPX5 (Grade) | ||
| 100 ± 5 (L/min) IPX6 (Grade) | |||
| Pipe diameter | Four minutes, one inch hose each | ||
| Water spray pressure | 30~100 kPa (by flow adjustment) | ||
| Rotary speed | 1～3 R/min | ||
| Water spray test time | At least 3min or more time (be set) | ||
| Preset test time | 1S~9999H59M59S is arbitrarily adjustable | ||
| Internal box material | SUS304 stainless steel | ||
| Shell material | SUS304 stainless steel sheet metal or cold tie sheet metal paint | ||
| Water circulation system | Ensure the recycling of water sources | ||
| Control system | Independent Developed touch screen control system (Teelong) | ||
| Product mix | consists of test table, storage tank, control box, product dehydration buffer, turntable and spray system | ||
| Electrical control parts | Choose French Schneider, Omron, Taiwan ANV, Siemens and other international famous brands | ||
| Equipment use conditions | Power supply: 380V; Frequency: 50HZ; power: 3KW | ||
| Ambient condition | Temperature is 5℃ ~40℃; the relative temperature is 85%RH | ||
