Automobile High And Low Temperature Chamber Formula Constant Wet / Humidity
Contact Person : Anglia Chen
Phone Number : +86 17724266108
WhatsApp : +8617724266108
| Minimum Order Quantity : | 1 set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 40 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 10 set /month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Calibration Certificate(cost additional) | Model Number: | AM0019 |
|
Detail Information |
|||
| Power Supply: | 220V | Frequency: | 50HZ |
|---|---|---|---|
| Power: | 2KW | Temperature: | 5℃~40℃ |
| Relative Temperature: | 85%RH | Container: | S304 |
| High Light: | 2KW Auto Parts Test Equipment,IPX8 Auto Parts Test Equipment,IPX8 Immersion Pressure Testing Machine |
||
Product Description

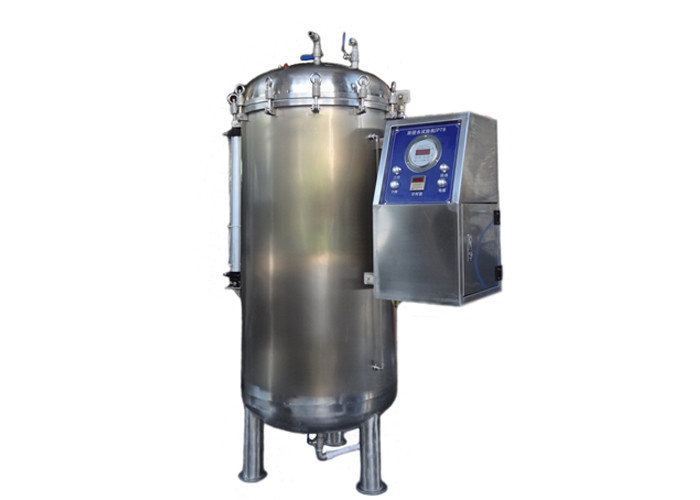

IPX8 Immersion pressure testing machine Auto Parts Test Equipment IEC60529 ISO20653 IEC60068
Products Introduction:
This equipment is used to assess the good performance of the product enclosure and components during the storage, transportation and use in rainy weather.It is mainly suitable for electrical and electronic products, lamps, electric cabinets, electrical components, communication products, automobiles, motorcycles and their parts, outdoor lighting and signal devices and other products to do waterproof performance test and IP waterproof grade test.Auto Parts Test Equipment
Meet a criterion:
GB4208-2017,IEC60529:2013,ISO20653:2006,GB2423.38-2005,IEC60068-2-18:2000, etc.Auto Parts Test Equipment
Parameters:
| model | AM0019-IPX8-400 | AM0019-IPX8-600 | AM0019-IPX8-800 | AM0019-IPX8-1000 |
| The inner diameter of the tank is mm | 400 | 600 | 800 | 1000 |
| The tank body is mm in high | 600 | 1000 | 1200 | 1500 |
| Simulation water depth | 0~30m; 0~50m; 0~100m; 0~200m; 0~300m (optional) | |||
| Pressure remains range | Normal pressure ~300kap; normal pressure ~500kap, normal pressure ~1000kap; normal pressure ~2000kap; normal pressure ~3000kap (optional) | |||
| The basket weighs kg | 10 | |||
| Stainless steel tank is mm thick | Either 3mm or 5mm | |||
| Time control | 0~99 Minutes and 99 seconds Auto Parts Test Equipment | |||
| Water level display | The scale is added to the water pipe | |||
| Takeup | Handheld-type stainless steel hanging basket | |||
| Control system selection | Pressure gauge control or touch screen control (optional) | |||
| Container | S304 stainless steel tank Auto Parts Test Equipment | |||
| Product characteristics | This water anti-immersion test device with pressure protection riot device and drainage pressure discharge device | |||
| Equipment use conditions | Power supply: 220V; Frequency: 50HZ; power: 2KW | |||
| Ambient condition | Temperature 5℃ to 40℃ relative temperature 85%RH | |||
| Safety protection device | Overloaded power supply, short-circuit protection Ground protection, water shortage protection The alarm sounded | |||
