Lamp Aging Cabinet Auto Parts Test Equipment 65db Real - Time Monitoring Of Aging Current Voltage And Power

Place of Origin:	China	Brand Name:	HeJin
Certification:	Calibration Certificate(cost additional)	Model Number:	AM0050

Detail Information
Cooling Method:	Air Cooled	Noise:	< 65 Db
Product Power:	1W-100W, 120V Output,8A	Aging Time:	0-999.99 Can Be Set
Temperature Range:	At Room Temperature To -50°±5	Temperature Accuracy:	±5°
High Light:	Lamp Aging Auto Parts Test Equipment , 65db Auto Parts Test Equipment

Product Description

Auto lamp aging cabinet, real-time monitoring of aging current, voltage and power Auto Parts Test Equipment

Product features:

The product is suitable for high power fast charger adapter ageing test, and also can design customized other aging test equipment;

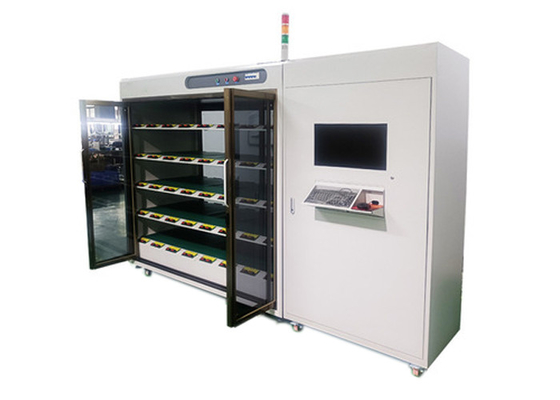

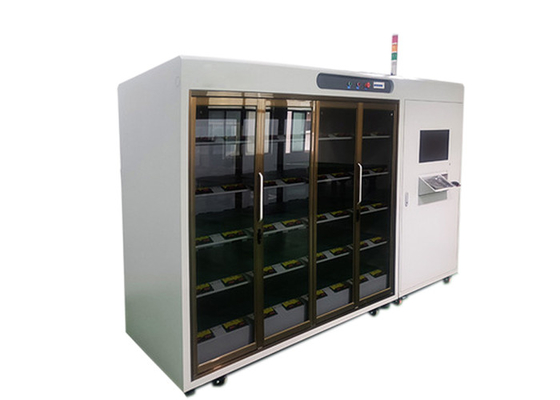

The aging of the specifications of the tank L2000 *w690 * H1888mm, burning rack points of products and load;

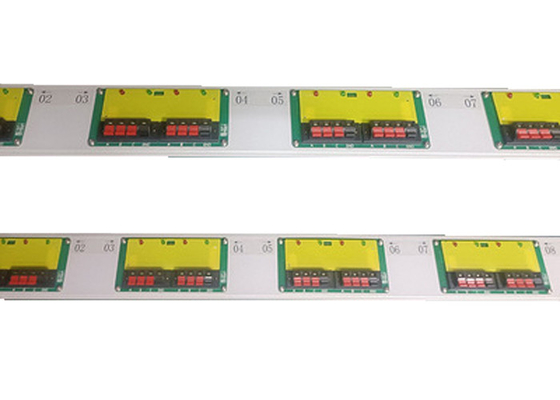

Burning rack will be divided into 6 levels, unilateral ageing, each layer can put 32 PCS products,192 PCS products totally (the quantity of aging test can also be customized according to customer's request );
The cooling mode of aging cabinet load area adopts indoor ambient temperature air cooling, room temperature;
The product area can be configured with a group of hot air circulation system to accelerate the aging test of products (hot air circulation is shown in the picture), (40-80 degrees can be set);
Monitoring voltage, current, power, etc. are set by computer to reduce operation time and cost;
Beautiful structure, small volume, easy to move and demolition.Auto Parts Test Equipment

Software features:

1. Constant discharge current (electronic load discharge);

2. Discharge data collection and data preservation; Discharge data curve display;Auto Parts Test Equipment

3. Single point and multi-point can be set to control voltage discharge;

4. Monitor voltage, current and power and record and save data, that is, real-time monitoring of product aging status, defective products alarm;

5. Aging load current and voltage are set by computer;Auto Parts Test Equipment

6. Load ambient temperature 50°±5°, with over voltage, over current, over temperature protection;

7. EGO overtemperature power failure, smoke detection power failure alarm two-stage fire prevention system;

8. Scan code system with MES.Auto Parts Test Equipment

Parameters:

Model	AM0050 Auto Parts Test Equipment
Exterior dimension	Design dimensions according to customer's specific requirements.
Cooling method	Air cooled
Aging quantity	192 products (according to customer requirements)
Noise	< 65 db
Quantity of product zone	More than 1 product area
Cabinet structure	Cool-rolled sheet
Sliding door structure	4 folding doors
Product power	1W-100W, 120V output,8A
Control method	PC and PLC intelligent control system
Quick charge agreement	QC2.0/QC3.0/QC4.0/MTK1.0/MTK2.0/PD2.0/PD3.0/PPS
Aging time	0-999.99 can be set
Operation interface	Easy to understand, a variety of colors to distinguish aging state.
Aging method	Fast charge electron load discharge.
Temperature range	At room temperature to -50°±5°
Temperature accuracy	±5°
The monitoring system	Programmable communication is adopted to monitor the output voltage, current, power and aging temperature curve of the product.

Lamp Aging Cabinet Auto Parts Test Equipment 65db Real - Time Monitoring Of Aging Current Voltage And Power 0
