ISO16232 VDA19 Auto Parts Test Cleanliness Particle Detector

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Plywood Delivery Time : 40 days
Payment Terms : L/C, T/T Supply Ability : 10 set /month
Place of Origin: China Brand Name: HeJin
Certification: Calibration Certificate(cost additional) Model Number: AM0044

Detail Information

High Light:

VDA19 Cleanliness Particle Detector

,

ISO 16232 Cleanliness Particle Detector

Product Description

Parts cleanliness particle detector ISO16232 VDA19 Auto Parts Test Equipment



Products Introduction:

With the increasing complexity of technical products such as automotive, aerospace, and electrical engineering, the cleaning requirements for production conditions and components are also increasing.Resiresidue of particulate contaminants during manufacturing and assembly will lead to a significant increase in wear rate, early in the initial run-in process and life, and even catastrophic failure.Product quality defects caused by cleanliness control problems have directly threatened the survival of manufacturers, and technical cleanliness testing has now attracted great attention from the industry.The current application scope of cleanliness testing covers the quantitative defect analysis from automotive parts, aerospace, medical, communication residual particles.Auto Parts Test Equipment



Standard:

ISO16232, VDA19, ISO4406, ISO4407, NAS1638, GB / T20082, GB / T 14039

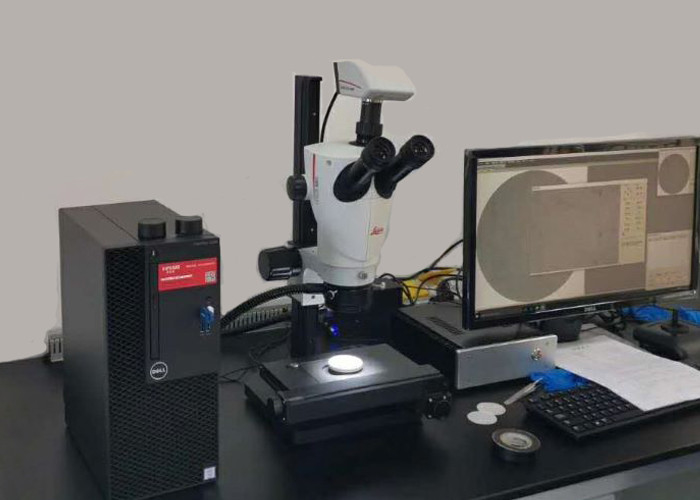

Component:

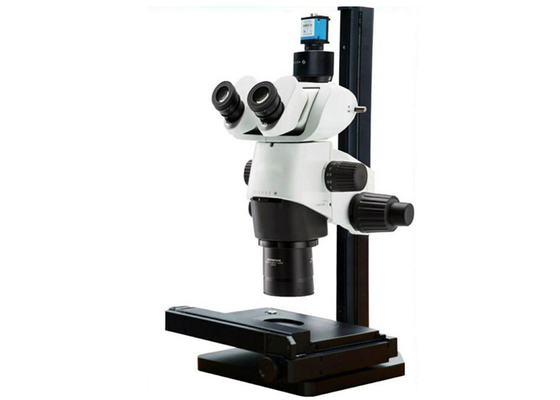

High depth of-field optical microscope (including microscope frame platform)

Import the XY mobile platform

Import high-speed scanning cameras

Cleanliness professional analysis software Auto Parts Test Equipment

Brand computer



Feature:

High depth of field microscope and accessories for good imaging effect.

The device automatically scans and analyzes and outputs the report. The operator only needs to set the parameters well.

Automatically count the total number of particles, metals, non-metals, and fibers.

Automatically distinguish between metallic particles, non-metallic particles, and fibers.

Automatic scan and take photos, and be visible in real time during the scanning process.Auto Parts Test Equipment

Preserve the expansion interface, and the corresponding accessories can be added for gold phase analysis and porosity analysis

Report templates are diversified, and users can choose the corresponding report template, including statistics, ratings, filter full picture, maximum particle photos and other information.



System performance:

This system design provides you with an intuitive workflow from acquisition to standardized documents.Dedicated particle standard calibration sheets and advanced image analysis techniques ensure the accuracy of the results.Furthermore, the accuracy was verified after passing the particle validation function, driving the loading platform to the exact location of the particle in question.Auto Parts Test Equipment
