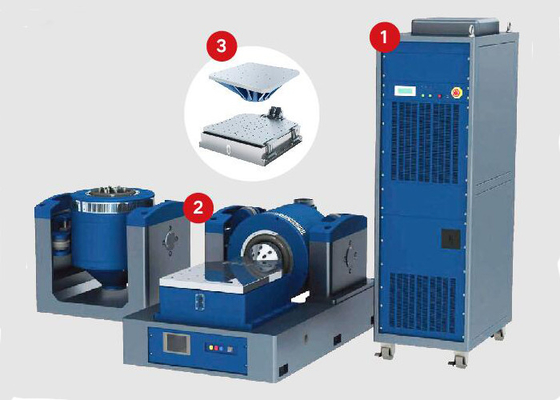

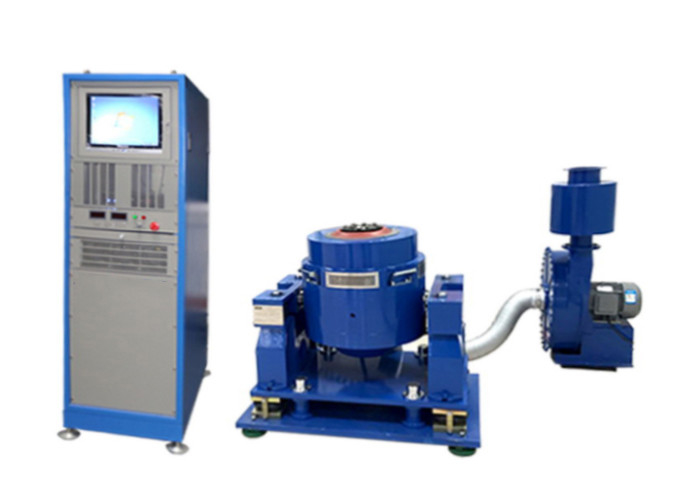

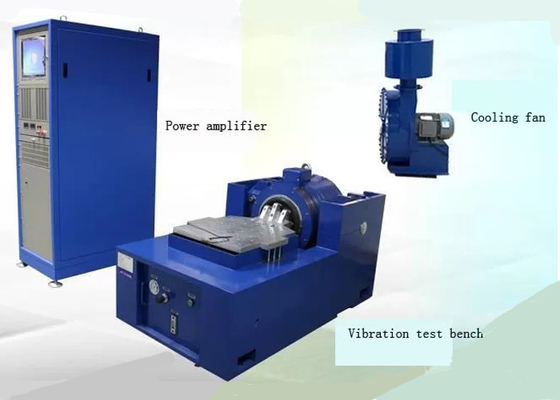

Electric Vibration Test System Mechanical Strength Test 2000kgf 20000N

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Frequency Range:

5～3000Hz

Sine Thrust:

2000kgf (20000N)

Random Thrust:

2000kgf (20000N)

Shock Thrust:

4000kgf (40000N)

Continuous Displacement:

51mm

Vibration Isolation Frequency:

2.5Hz

First Order Resonant Frequency:

2600±5%Hz

Mesa Of Screw:

17*M10

Packaging Details:

Plywood

Highlight:

Product Description

Electric Vibration Test System Mechanical Strength Test 2000kgf (20000N)

System Performance Index Mechanical Strength Test

Vibration Generator
Model	AM0015
Sine Thrust	2000kgf (20000N)
Random Thrust	2000kgf (20000N)
Shock Thrust	4000kgf (40000N)
Frequency Range	5～3000Hz
Continuous Displacement	51mm
Vibration Isolation Frequency	2.5Hz
First Order Resonant Frequency	2600±5%Hz Mechanical Strength Test
Mesa Of Screw	17*M10
Magnetic Flux Leakage	<1MT Mechanical Strength Test
Maximum Speed	2m/S
Maximum Acceleration	980m/S²(100g)
Equivalent Mass Of Moving Parts	20kg
Moving Coil Diameter	Φ280mm
Maximum Load	300Kg
Weight	2695kg Mechanical Strength Test
