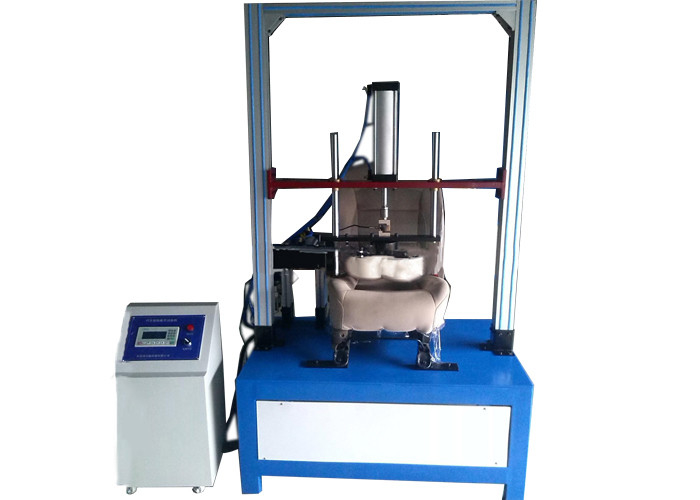

Stroke 100cpm Mechanical Strength Test Equipment Automobile Seat Fatigue Testing Machine

Brand Name:	HeJin
Model Number:	AM0008
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Control Program:

PLC

Test Stroke:

100cpm

Test Speed:

99cpm

Loading Stroke:

0 ~ 250mm

Loaded Load:

0 ~ 200KG

Loading Frequency:

0 ~ 20 Times/min

Power Supply:

220V/ 60Hz

Beam Lifting Distance:

0 ~ 800mm

Packaging Details:

Plywood

Highlight:

100cpm Mechanical Strength Test

Automobile Seat Fatigue Testing Machine

Automobile Seat Mechanical Strength Test Equipment

Product Description

Automobile seat fatigue testing machine Mechanical Strength Test Test stroke 100cpm

Purpose:

To test the durability and safety of the seat by repeatedly impacting the seat and cushion at a certain speed and load through pneumatic control. It is applicable to the durability test of automobile cushion and seat frame

Scope of application: Alternating load durability testing machine

Type: Alternating load durability testing machine

Precautions:

1. Adjust the air cylinder according to the height of the seat;

2. Adjust the induction switch on the cylinder;

3. Overload operation is not allowed. The airborne weight is 200kg;

4. Check the air circuit for air leakage. If there is air leakage, tighten the joint again;

5. The cylinder pushing laterally can adjust the push-pull stroke by moving the second sensor;

6. Note that after the number of tests reaches zero, it can be started;

7. The weight of the impact fixture is about 15kg, and this weight is added to the load during the test; Mechanical Strength Test

8. The speed of the cylinder can be controlled through the regulating valve on the cylinder. The displayed frequency is the real-time frequency, calculated per minute;

9. Adjust the stroke of impact head spring and transverse cylinder according to the test rotation angle.

Parameter:

control program	PLC
Test stroke	100cpm
Test speed	99cpm
Loading stroke	0 ~ 250mm
Loaded load	0 ~ 200KG
Loading frequency	0 ~ 20 times/min
Beam lifting distance	0 ~ 800mm
Control mode	pneumatics
Power supply	220V/ 60Hz
Model	AM0008

Stroke 100cpm Mechanical Strength Test Equipment Automobile Seat Fatigue Testing Machine 0
