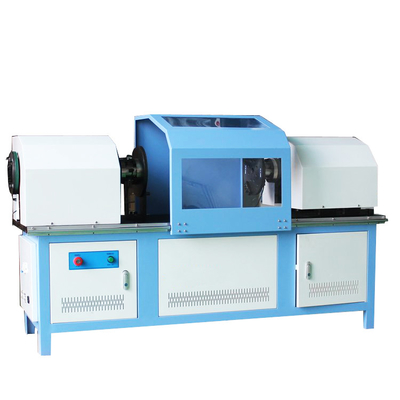

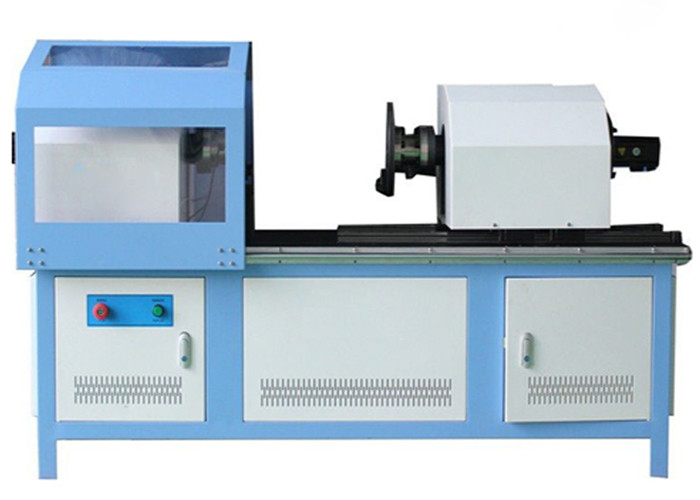

Stroke 500mm Mechanical Strength Test Apparatus Automotive Torsion Spring Tester

Brand Name:	HeJin
Model Number:	AM0009
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Measuring Range:

1～100%F.S

Display Resolution:

0.1°

Stroke:

500mm

Power Supply:

AC220V 50Hz

Sample Size:

0.1-500mm

Tester Level:

Level 1

Boundary Dimension:

About 1260*500*1000mm

Type:

Digital Display Torsion Tester

Packaging Details:

Plywood

Highlight:

Stroke 500mm Mechanical Strength Test apparatus

Digital Mechanical Strength Test Apparatus

Automotive Torsion Spring Tester

Product Description

Automotive torsion spring tester Mechanical Strength Test Stroke 500mm

Function:

It is mainly used for testing raw materials, semi-finished parts and finished parts; Computer control operation is adopted to collect torque, peak value, angle, curve and other data; The display displays the torque time, torque angle time and torque torque angle test curves of the tested parts; It can realize the storage, examination and printing of test data, test report, etc. Mechanical Strength Test

Main technical parameters:

Parameter1):

1.Style: horizontal

2.Tester level: level 1

3.Accurate measurement range: 1%FS-100%FS;

4.Torque value error: better than 1%;Torque repeatability error is better than 1%

5.Angular resolution ratio: 0.01

6.Angle measurement accuracy: better than 1%

7.Torsion accessories: three jaw chuck, two-way jacking type

8.Test stroke: 300mm or 500mm (can be increased)

9.Torsion speed control range: 0.01r /min ~ 5R/min stepless speed regulation

10.Torsion speed control accuracy: better than 1%

11.Testing machine level: level 1

12.Appearance: GB/T2611 requirements

13.Protection function: the testing machine has overload protection function

14.Power supply:220V,50HZ

Parameter2):

Measuring range	1～100%F.S
Display resolution	0.1°
Stroke	500mm
Power supply	AC220V 50Hz
Sample size	0.1-500mm
Boundary dimension	About 12605001000mm
Tester level	level 1
Appearance	GB/T2611 requirements
Model	AM0009
Type	Digital display torsion tester
