Auto Parts Torsion Testing Machine Horizontal Mechanical Strength Test

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Plywood Delivery Time : 40 days
Payment Terms : L/C, T/T Supply Ability : 10 set /month
Place of Origin: China Brand Name: HeJin
Certification: Calibration Certificate(cost additional) Model Number: AM0007

Detail Information

Style: Horizontal Test Force Resolution: 0.01N•m/0.1N•m
Torsion Accessory: Can Be Customized Test Space: 0-500mm(can Be Increased)
Testing Machine Level: 0.5 /1 Model: AM0007
High Light:

Auto Parts Torsion Testing Machine

,

500mm Mechanical Strength Test Machine

,

Mechanical Strength Torsion Testing Machine

Product Description

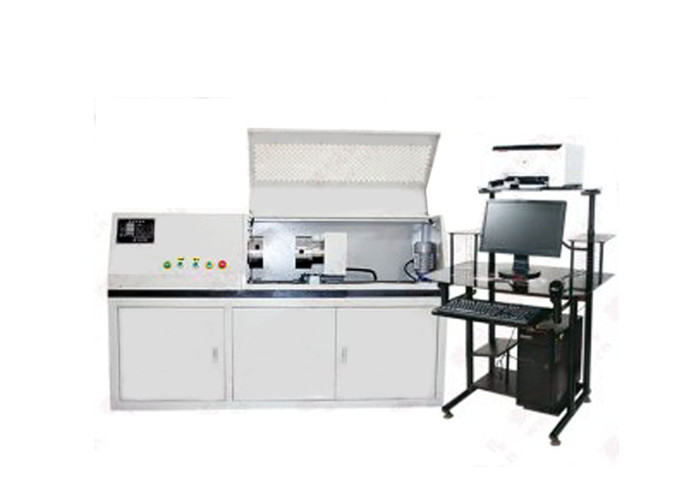

Auto parts torsion testing machine Style horizontal Mechanical Strength Test



Function introduction:

1. Parts torsion testing machine is used for clutch, pulley, tensioner, drive shaft, coupling, double mass flywheel and other kinds of auto parts torsion test.

2. The test sample is installed between the adjustable space of the fixture, can adapt to different test specimens torsion mechanical properties.

3. Using computer control operation, can be torque, peak value, Angle, curve and other data collection.

4. The display shows the torque-time, torque angle-time and torque-torque angle test curves of the tested parts.

5. It can realize test data storage, examination, printing test reports.



Manufacturing and inspection standards:

JB/T9370-1999 "Torsion testing machine technical conditions"

GB2611-2007 "Testing machine general technical Requirements"

JIG269-2006 "Verification Regulation of torsion Testing Machine"



Model selection. Special requirements:

LY- Parts torsion testing machine series :10N·m, 20N·m, 50N·m, 100N·m, 200N·m, 500N·m 1000N·m, 2000N·m, 5000N·m, 10000N·m, 20000N·m (this is the common model, can be customized).Mechanical Strength Test.



Parameter1):

1. Style: horizontal

2. Maximum test force :10N·m, 20N·m, 50N·m, 100N·m, 200N·m, 500N·m, 1000N·m, 2000N·m, 5000N·m, 10000N·m, 20000N·m(multi-range optional)

3. Test force resolution :0.01N·m/0.1N·m

4. Accurate measurement range :1%FS-100%FS

5. Relative error of test force indicating value :≤+0.5%

6. Repeatability error of test force indicating value :≤0.5%

7. Torque resolution :1/+300000( resolution unchanged all the time)

8. Torquing direction: positive and negative direction

9. Torsion accessory :(can be customized)

10. Test space :0-500mm(can be increased)

11. Test speed :0.01°-720°/min stepless speed regulation

12. Test machine size: about 2000*600*1200 mm(can be customized)

13. Appearance: should comply with GB/T2611 requirements

14. Completeness: meet the standard requirements

15. Protection function: the testing machine has overload protection function

16.Testing machine level :0.5 /1



Parameter2):

Style horizontal
Test force resolution 0.01N·m/0.1N·m
Accurate measurement range 1%FS-100%FS
Relative error of test force indicating value ≤+0.5%
Repeatability error of test force indicating value ≤0.5%
Torque resolution 1/+300000( resolution unchanged all the time)
Torquing direction positive and negative direction
Torsion accessory can be customized
Test space 0-500mm(can be increased)
Test speed 0.01°-720°/min stepless speed regulation
Test machine size about 2000*600*1200 mm(can be customized)
Appearance should comply with GB/T2611 requirements
Completeness meet the standard requirements
Protection function the testing machine has overload protection function
Testing machine level 0.5 /1
Model AM0007
