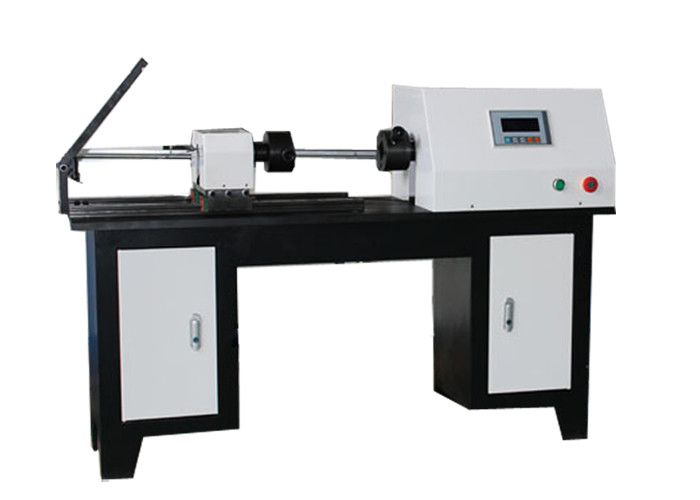

1-720°/Min Mechanical Strength Test Device Transmission Shaft Torsion Testing Machine

1-720°/Min Mechanical Strength Test Device Transmission Shaft Torsion Testing Machine

Brand Name: HeJin
Model Number: AM0006
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 10 set /month
Detail Information
Place of Origin:
China
Certification:
Calibration Certificate(cost additional)
Model:
AM0006
Torsion Speed:
1-720°/min
Sample Size:
0.1-500mm
Rotation Direction Of Test:
Bidirectional
Testing Machine Level:
Level 1
Power Supply:
220V, 50Hz
Packaging Details:
Plywood
Highlight:

Mechanical Strength Test Device

,

Transmission Shaft Torsion Testing Machine

,

Transmission Shaft Mechanical Strength Test Device

Product Description

Transmission shaft torsion testing machine Torsion speed 1-720°/min Mechanical Strength Test



Applicable standards:

GB/T 10128-1998 "Metal torsion test method at room temperature"

GB/T 10128-2007 "Metal torsion test method at room temperature"



Working environment requirements:

1, In a stable foundation or work table;

2, In the absence of vibration and the surrounding environment without corrosive medium;

3, In the room temperature of 10°C ~ 35°C, relative humidity ≤80%;

4, The fluctuation range of power supply voltage should not exceed ±10% of the rated voltage



Technical indicators:

Model: Z - W500Nm/Z - W1000N/Z - W2000Nm/Z - W3000Nm/Z - W5000Nm

Maximum test torque : 500 nm / 1000 nm / 2000 nm / 3000 nm / 5000 nm

Torque measurement range :1%-

Minimum readable numerical value of torque: 0.01Nm/0.1Nm/0.1Nm

Relative error of torque indicating value: ±1%

Minimum readable numerical value of torsion Angle: 0.1°

Maximum torsion Angle: 99999°

Torque Angle measurement relative error :±1%

Torsion speed :1-720°/min

Sample size :0.1-500mm

Maximum spacing between collets :500mm

Rotation direction of test: bidirectional

Testing machine level: level 1

Power supply :220V, 50Hz



Parameter:

Model Z - W500Nm/Z - W1000N/Z - W2000Nm/Z - W3000Nm/Z - W5000Nm
Maximum test torque 500 nm / 1000 nm / 2000 nm / 3000 nm / 5000 nm
Torque measurement range 1%-
Minimum readable numerical value of torque 0.01Nm/0.1Nm/0.1Nm
Relative error of torque indicating value ±1%
Minimum readable numerical value of torsion Angle 0.1°
Maximum torsion Angle 99999°
Torque Angle measurement relative error ±1%
Torsion speed 1-720°/min
Sample size 0.1-500mm
Maximum spacing between collets 500mm
Rotation direction of test bidirectional
Testing machine level level 1
Power supply 220V, 50Hz
