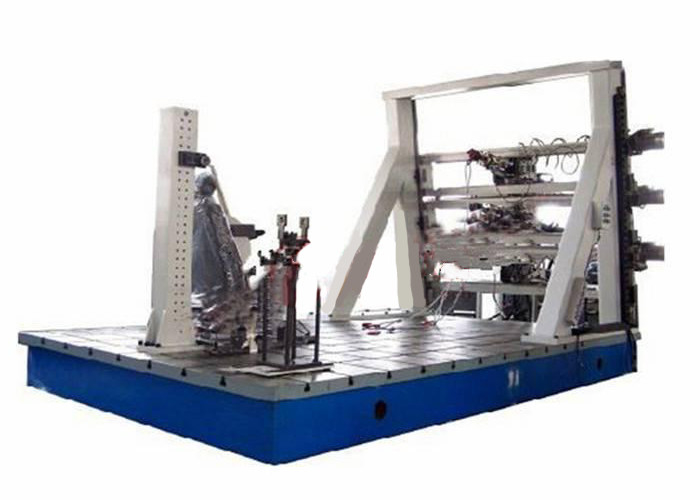

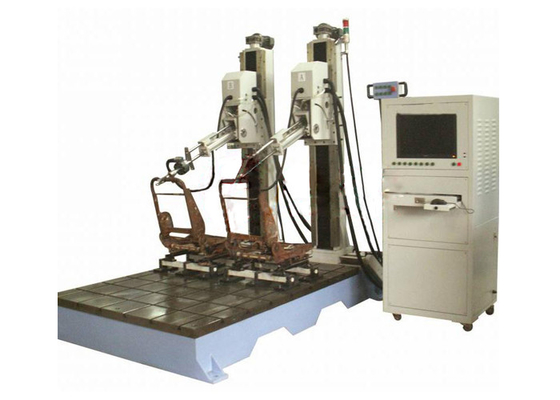

MES PA 57015 Automobile Seat Frame Endurance Mechanical Strength Test 2000mm X 1500mm

Product Description

MES PA 57015 Automobile seat frame endurance Mechanical Strength Test 2000mm X 1500mm

purpose:

This machine is used to test the durability of car seat frame, conforming to MES PA 57015, multi-stage program execution.During the test, a certain load is continuously applied backward or forward to do the fatigue endurance test.Mechanical Strength Test

Scope of use:

1.The test equipment is designed according to the user's test requirements and relevant standards.

2. It is used to test the structural strength of various automobile seat frames, automobile seat headrests, automobile seat belts and automobile seat assemblies under static and dynamic conditions under certain test conditions and the safety and reliability of finished products.

3. It is used to evaluate the production process of the seat and after the installation of the finished product, and to investigate the force that each welding point, all joints and locking mechanism can bear under the action of a certain direction and force.

4. It can judge the strength and corresponding deformation of seat frame and finished seat, automatically record various values of test force, strength, displacement and deformation through computer, and automatically form test curve and test report.

Parameter1):

1. Load cell NTS 500 kg round 2 groups

2.Cylinder stroke: 250mm

3.Cylinder fulcrum operation Angle: 1~90 degrees

4.Accuracy: + or -2% (dynamic accuracy)

5.T plate size: width 2000mm X 1500mm

6.The distance between cylinder fulcrum and T-plate is 2000mm,

7.Cylinder fulcrum movement mode, electric (two groups of independent control)

8.Stroke sense: LVDT

9.Can be set greater than or less than the power alarm stop, and set displacement greater than or less than the set value stop.Power for computer PID fuzzy control system, real-time data acquisition system.

10.Computer standard control cabinet

11.Air source requirements: customers need to provide their own stable air source of 7KG/cm2 (plus or minus 0.5kg/cm2 is better).In case of unstable equipment output due to air pressure, the manufacturer shall provide appropriate gas storage barrels.

12.Power supply: single-phase AC 220V,50/60/HZ, 15A

13.Computer Set (Acer dual core;19"LCD; 2G memory;CPU5300 AMD; HD 320G VGAIG

Parameter2):
