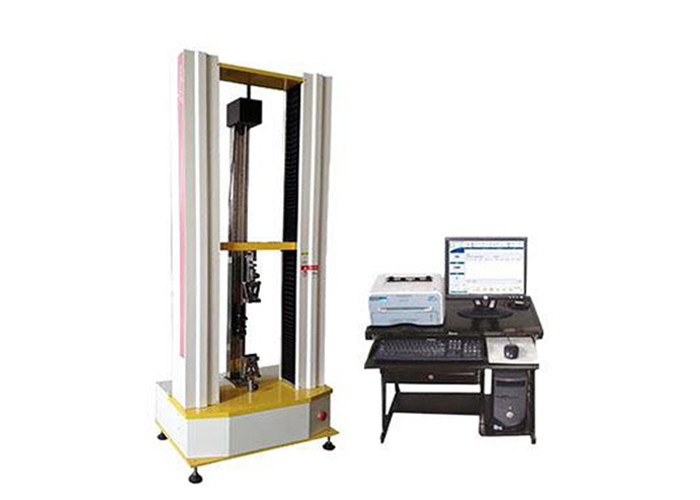

0.05-500mm/Min Auto Parts Tensile Testing Machine Force 100~5000N

Brand Name:	HeJin
Model Number:	AM0003
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Test Force:

100N 200N 500N 1000N 2000N 3000N 5000N

Measurement Range:

2%~100% Of Heavy Load

Relative Error:

±1%

Repeatability:

≤1%

Zero Point Relative Error:

±0.1%

Speed Range:

0.05-500mm/min

Speed Precision:

Better Than±1%

Effective Stretch Space:

600mm

Packaging Details:

Plywood

Highlight:

0.05mm / Min Tensile Testing Machine

100N Tensile Testing Machine

Product Description

Speed Range 0.05-500mm/Min Auto parts tensile Mechanical Strength Test testing machine Test force 100~5000N

Standard:
GB/T1040, 1041, 8804, 9341, 9647, ISO7500-1, GB16491, GB/T17200, ISO5893, ASTM D638, 695, 790 and plastic pipe and other standards.

purpose :
It is suitable for tensile, compression, bending and creep test of plastic, waterproof material, textile, paper products and rubber and other material samples and products. It is equipped with a large pressure plate to directly test pipe flat compression (compression recovery), ring stiffness (resistance to external load), creep ratio, ring tensile strength and so on.Mechanical Strength Test.Mechanical Strength Test

Host specifications:
A. High-precision force sensor: 50 N
Force accuracy within ±0.8 %.
B. Capacity segment: four grades throughout: 0.25/0.5/0.75/1
High precision 16 bits A/D
C. Power system: see configuration list
D. Control system: adopt external control mode to make control more accurate
Speed control range 0.01~500mm/min.
The centre union panel adjustment has the functions of fast coarse adjustment and slow fine adjustment.
Automatic return and automatic storage after test.
E. Display mode: LCD readout box.
F. Test space: test width of about 350 mm (standard specification)
Connecting plate walking space :950 mm (not including clamp) (standard specification)
G. Large deformation two-point extension meter: resolution 1/100, accuracy ±1mm
H. Safety device: overload emergency stop device, up and low stroke limiting device, automatic breakpoint stop function.

Technical parameters

NO.	Inspection items	The technical requirements
1	Test force	100N 200N 500N 1000N 2000N 3000N 5000N
2	Test force measurement range	2%~100% of heavy load
3	Displacement measurement	Resolution of 0.01mm
4	Relative error of test force	better than ±1%
5	Relative error of repeatability of test force	≤1%
6	Zero point relative error of test force	±0.1%
7	Speed range	0.05-500mm/min
8	Speed precision	better than±1%
9	Effective stretch space	600mm
10	The power supply	～220V±10% 50Hz 0.5kW
11	Overall size(mm)	4004001300
