IEC 60068-2-75 Impact Testing Machine Spring Hammer Test Apparatus 0.2J Energy

Brand Name:	HeJin
Model Number:	SH-0.2J
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Spring Hammer Test Apparatus

Standard:

IEC 60068-2-75, IEC 60598-1, IEC60065-1, IEC 62368-1

Usage:

Impact Testing Machine

Material:

Stainless Steel

Impact Energy:

0.20 ± 0.02 J

Impact Element Mass:

250g±5g

The Mass Of The Body Assembly:

1250g±10g

Warranty:

12months

Packaging Details:

Carton Box

Highlight:

IEC 60068-2-75 Impact Testing Machine

0.2J Impact Testing Machine

0.2J Spring Hammer Test Apparatus

Product Description

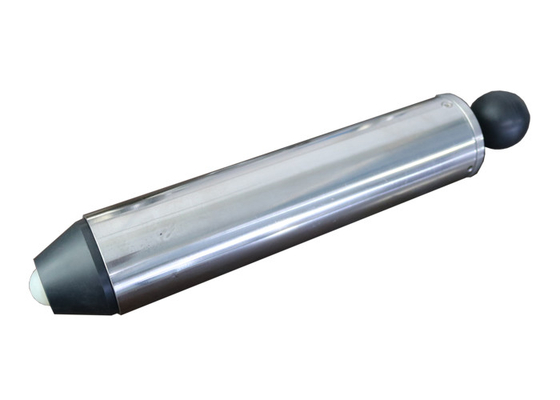

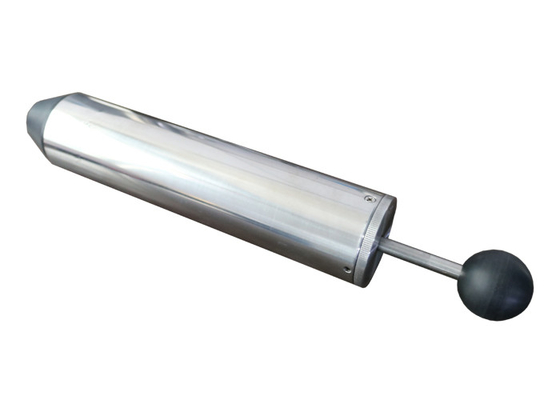

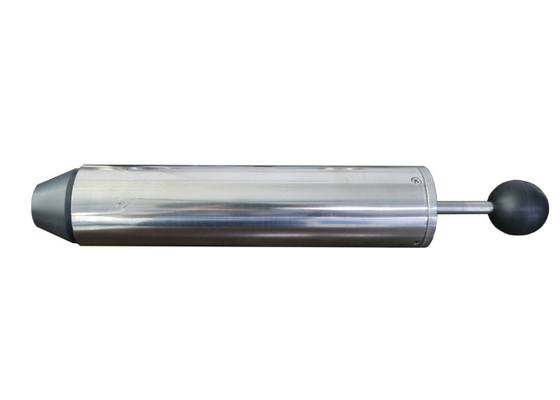

Impact testing machine Spring Hammer Test Apparatus 0.2J Energy

Standard:

IEC 60068-2-75 Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests Annex E, Figure E.1 – Spring hammer test apparatus.

And other standard such as IEC 60335-1, IEC60884-1, IEC 60598-1, IEC60065-1, IEC 62368-1 and etc.

When is an impact test appropriate?

An impact test is appropriate for equipment likely to be used in areas with non-restricted access and where impacts are likely to occur. For equipment destined for areas with restricted access, an impact test may be appropriate but is likely to be of a lower severity.

It is particularly applicable when the equipment is of a brittle nature. Impact testing machine

Advantage:

The advantage of the spring hammer is that it can be used in any position, provided there is enough room to apply it correctly and that the specified impact energy does not exceed 2 J. For higher energy levels, a spring hammer would be too difficult to handle, and could even be hazardous for the operator.

Parameter:

Model	SH-0.2J
Impact energy(J)	0.20 ± 0.02
Impact element mass	250g±5g
The mass of the body assembly	1250g±10g
Material	Stainless steel

IEC 60068-2-75 Impact Testing Machine Spring Hammer Test Apparatus 0.2J Energy 0
