AC230V 50Hz 2kw IEC60335-2-24 Impact Test Apparatus

Brand Name:	HeJin
Model Number:	EID-3
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Usage:

Impact Testing Machine

Standard:

IEC 60335-2-24

Power Supply:

AC220V 50Hz

Drop Height:

50mm

Station:

Single

Dimensions:

W1917×D1022×H1090mm

Bearing Weight:

150Kg

Drop Platform:

Simulation Platform

Packaging Details:

plywood

Highlight:

IEC60335-2-24 Impact Test Apparatus

AC230V Impact Test Apparatus

50Hz Impact Test Apparatus

Product Description

Impact Testing Machine Refrigeration Apparatus Drop Test Apparatus For Various Types Of Camping Appliance

Standard:

The test apparatus is designed and manufactured according to the requirements of IEC60335-2-24 Clause 21.101. ‘Household and similar electrical appliances - Safety - Part 2-24: Particular requirements for refrigerating appliances, ice-cream appliances and ice makers’.

Application:

Used for repeat drop strength test for various types of camping appliance. The test times can be preset; it will automatically stop when the test times reaches to the setting value. It is easy to operate. The test sample is placed on a horizontal wooden plate, drop it from 50mm to the hard wooden plate for 50 times.Impact Testing Machine

Test sample:

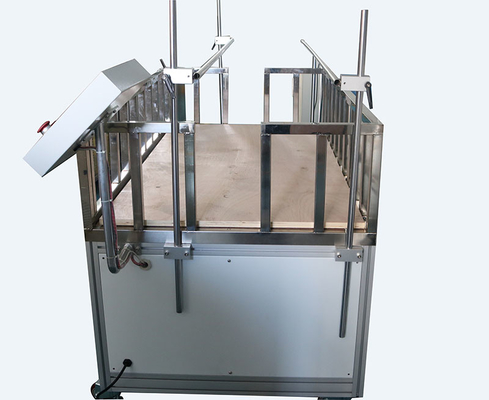

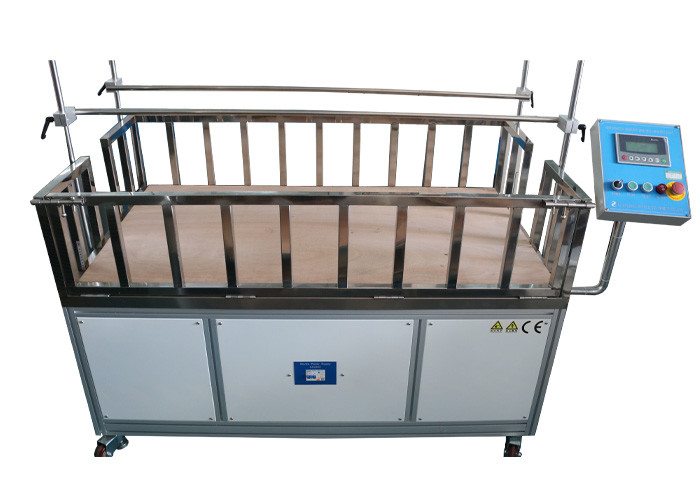

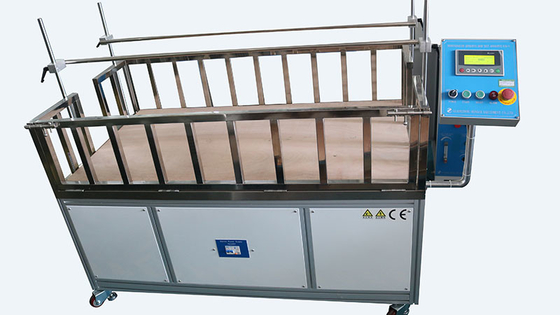

The equipment adopts steel frame, cam drive and ejector lift. It has the characteristics of strong carrying capacity and accurate positioning. It is suitable for all kinds of audio and video, such as various monitors, rear projection TVs, LCD TVs, plasma TVs, CD players, amplifiers, etc. Products and test requirements for use in camping refrigeration equipment.

Technical Parameters:

Project	Specification
Power supply	AC230V 50Hz power 2kw(Impact Testing Machine)
Bearing weight	150kg
Drop height	50mm
Test times	0-999999 times
Speed of work	≤20RPM
Drop platform	Simulation platform
Drop tablet	W1520×D820×H20mm
Dimensions	W1917×D1022×H1090mm
station	single
