Manual IEC60068-2-75 Pendulum Hammer Test Apparatus

Name: Manual IEC60068-2-75 Pendulum Hammer Test Apparatus
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HC9921
Availability: InStock

Brand Name:	HeJin
Model Number:	HC9921
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Pendulum Hammer Test Apparatus HC9921

Standard:

IEC 60068-2-75, IEC 60884-1

Usage:

Impact Testing Machine

Operation:

Manual

Striking Element:

150g, Equivalent Mass 200g. (200g Striking Element For Option).

Model:

HC9921

Packaging Details:

Plywood

Highlight:

IEC60068-2-75 Pendulum Hammer Test Apparatus

Manual Pendulum Hammer Test Apparatus

Manual IEC60068-2-75 Pendulum Hammer Test

Product Description

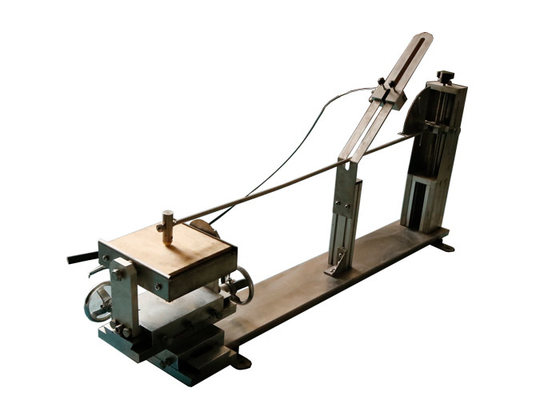

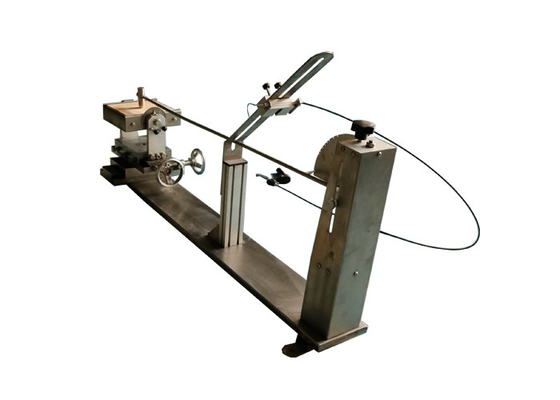

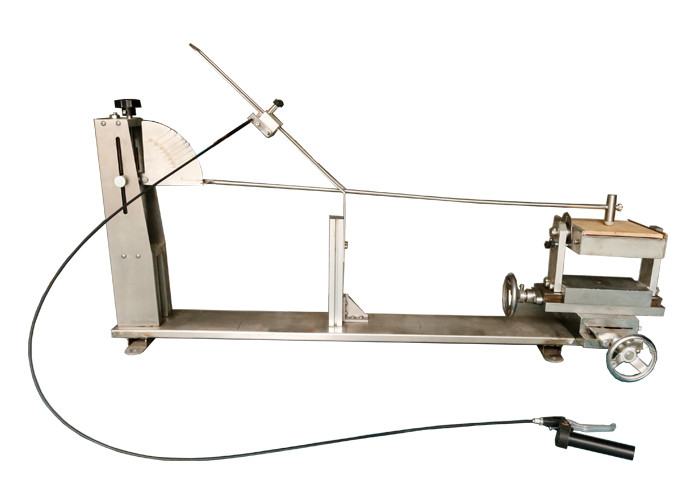

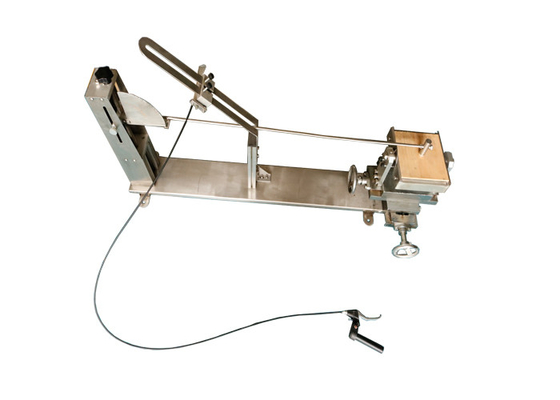

IEC60068-2-75 Pendulum Hammer Test Apparatus For Impact Testing Of Energies Not Exceeding 1J

Standard:

IEC 60068-2-75-2014 Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests clause 5 Test Eha: Pendulum hammer and Annex D;

IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 24.1, figure 22-26

Application:

This device is suitable for mechanical strength test to plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories for household and similar purposes.

Feature:

The arm is a steel tube with an external diameter of 9 mm (nominal), and a wall thickness of 0.5 mm (nominal).

The specimens are mounted on a sheet of plywood 8 mm thick and 1 75 mm square, preferably according to ISO 1098, secured at its top and bottom edges to a rigid bracket, which is part of the mounting fixture. The mounting fixture has a mass of 10 kg ± 1 kg and is mounted on a rigid frame by means of pivots. The frame is itself fixed to a solid wall.

Parameter:

Model	HC9921
Pendulum	Length: 1000mm External diameter: 9mm Wall thickness: 0.5 mm Made by steel
Release mode	Manual
Mounting bracket	Weight: 10 kg ± 1 kg It is well-set and the Horizontal direction and the vertical direction can be adjusted. The whole bracket can be rotated 90°through the rotation axis.
Striking element	150g, equivalent mass 200g. (200g striking element for option).
Standards	IEC 60068-2-75, IEC60884-1
