ISO4532 Porcelain Enamel Pistol Tester Impact Testing Machine

Name: ISO4532 Porcelain Enamel Pistol Tester Impact Testing Machine
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: SH-11
Availability: InStock

Brand Name:	HeJin
Model Number:	SH-11
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	20 set /month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate (cost additional)

Product Name:

Porcelain Enamels Pistol Tester SH-11

Standard:

ISO 4532

Impact Energy:

0~90N/cm

Scale:

2N/cm

Packaging Details:

Carton Box

Highlight:

Porcelain Enamel Pistol Tester

ISO4532 Enamel Pistol Tester

ISO4532 Impact Testing Machine

Product Description

ISO4532 Porcelain Enamels Pistol Tester Impact Testing Machine

Standard:

ISO 4532 Vitreous and porcelain enamels - Determination of the resistance of enameled articles to impact - Pistol test

Application:

This device is suitable for pistol test to determination of the impact resistance of vitreous and porcelain enamels and other enameled articles.

Test sample:

Vitreous and porcelain enamels and other enameled articles

Principle:

Shooting of a ball-tipped striking bolt of an apparatus operated by adjustable spring tension, against the surface of the test specimen. Evaluation of the point of impact.

The load applied to the striking bolt. which with one blow produces visible damage to the enamel, is inversely proportional to the sensitivity of the enamelled article to impact.

Feature:

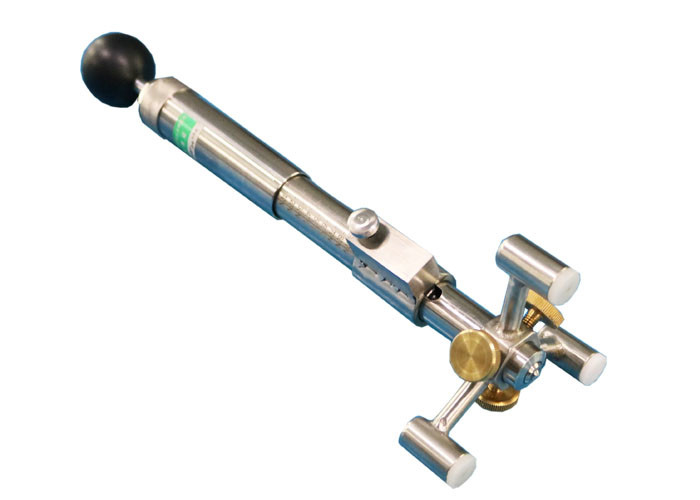

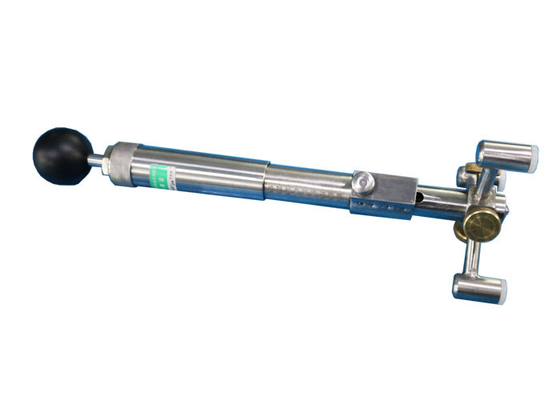

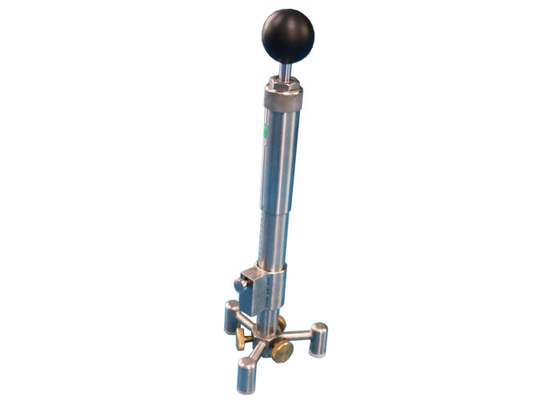

This device is a portable handheld instrument that can be stored in a suitcase, to avoid the disassembly, transportation and many other problems, can be tested in laboratory, outside the workshop, suitable for the factory production management test. This device is completely mechanical instruments, strength is in the range of 0~90 N/cm continuously adjustable, scale 2 N/cm; with specially designed triangle bracket, can be tested on the uneven surface samples, and can test the edge part of the sample also.

Parameter:

Model	SH-11
Impact energy	0~90N/cm adjustable
Scale	2N/cm
Standard	ISO4532

ISO4532 Porcelain Enamel Pistol Tester Impact Testing Machine 0
