Production Cycle Time ≥500 pcs/h Ceramic Component Multistation Helium Mass Spectrometer Leak Test Equipment
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 90 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 3 set per 3 month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) |
|
Detail Information |
|||
| Test Sample: | Heating Tank | Vacuum Chamber: | 1 Chamber, Customizable |
|---|---|---|---|
| Gas For Fine Leak Test: | Helium | Gas For Gross Leak Test: | Compressor Air |
| Equipment Maximum Accuracy: | 5x10-6mbar.L/s | Cycle Time: | 1 Piece/min |
| Helium Recovery: | ≥95% | Loading And Unloading Workpiece: | Customizable |
| Application: | Heating Tank Helium Leak Test System | Leak Point: | Sniffer Check The Leak Point |
| Highlight: | Helium Leak Testing Equipment,Heating Tank Leak Testing Equipment,Heating Tank Helium Leak Test System |
||
Product Description

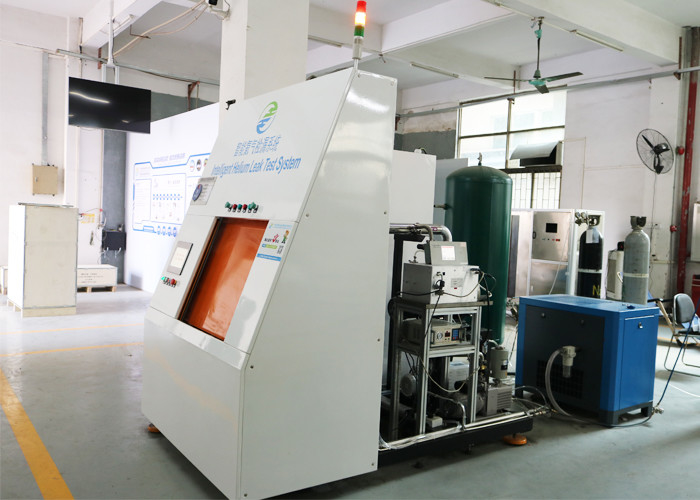

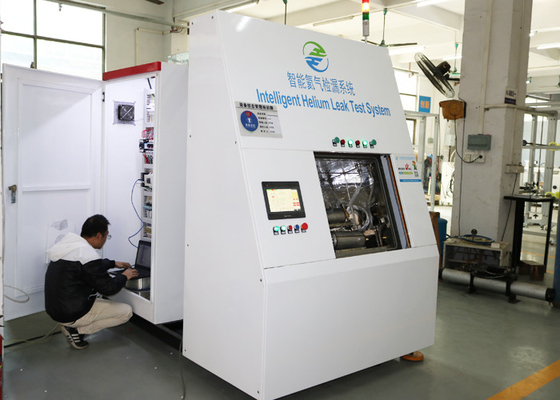

Helium Leak Testing Equipment For Heating Tank With One Vacuum Chamber
Product information:
The vacuum chamber helium leak detection system has a vacuum chamber. The operator put the workpiece into the vacuum chamber and connect the fixture. After the door is closed, the system can automatically complete large leak test, vacuum pumping, helium filling, fine leak detection, helium recovery, etc.; the cycle is fast, and the leak detection accuracy is high. Leak Testing Equipment
Work process description:
1. The operator puts the work piece in the fixture of vacuum chamber, press the start button. The vacuum chamber door will automatically close.
2. The system will automatically perform gross leak test.
3. Helium is charged to the test piece to a preset value. The system will automatically perform fine leak test.
4. After the test, the system recovers helium from the work piece.
5. Air is charged to the chamber to a pressure of 1atm.
6. The operator unload the work piece from the chamber.
Parameter:
| Workpiece | Heating tank. |
| Vacuum chamber |
1 chamber, 2 work pieces can be tested at the same time According to customer requirements |
| Chamber size | L700mm*W300mm*H600mm |
| Maximum workpiece size | Ø240*400 |
| Quick coupling in vacuum chamber |
2 sets Leak Testing Equipment |
| Gas for Gross Leak Test |
Compressor air (0.8Mpa), down adjustable Detection of gross leakage point by soaking water method |
| Fixture |
Provide 4 sets of one product According to customer requirements |
| Gas for Fine Leak Test |
Helium(0.8Mpa), down adjustable Sniffer check leak point |
| Actual leakage rate | 5x10-4mbar.L/s |
| Alarm leak rate | 5x10-5mbar.L/s |
| Equipment maximum accuracy | 5x10-6mbar.L/s |
| production efficiency | 1 minute / piece (loading and unloading time is Not included) |
| Helium Recovery | Recovery Rate ≥95% |
| Test Cycle | Automatic |
| Loading and unloading of products | Manual |
