Production Cycle Time ≥500 pcs/h Ceramic Component Multistation Helium Mass Spectrometer Leak Test Equipment
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 90 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 3 set per 3 month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) |
|
Detail Information |
|||
| Test Sample: | Heating Tank | Vacuum Chamber: | 1 Chamber |
|---|---|---|---|
| Gas For Fine Leak Test: | Helium | Alarm Leak Rate: | 5x10-5mbar.L/s |
| Cycle Time: | 1 Piece/min | Helium Recovery: | ≥95% |
| Test Cycle: | Automatic | Application: | Heating Tank Helium Leak Test System |
| Highlight: | 0.8Mpa Helium Leak Testing Machine,Heating Tank Leak Testing Machine,1 Chamber Helium Leak Test System |
||
Product Description

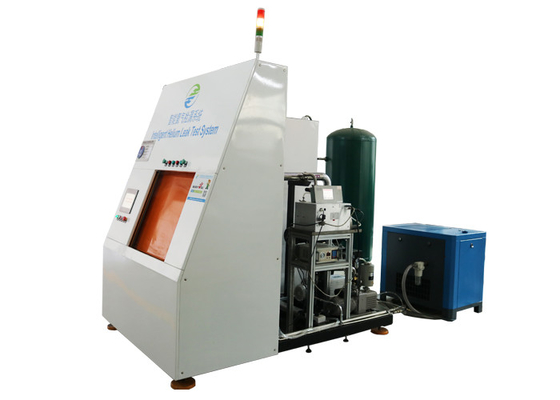

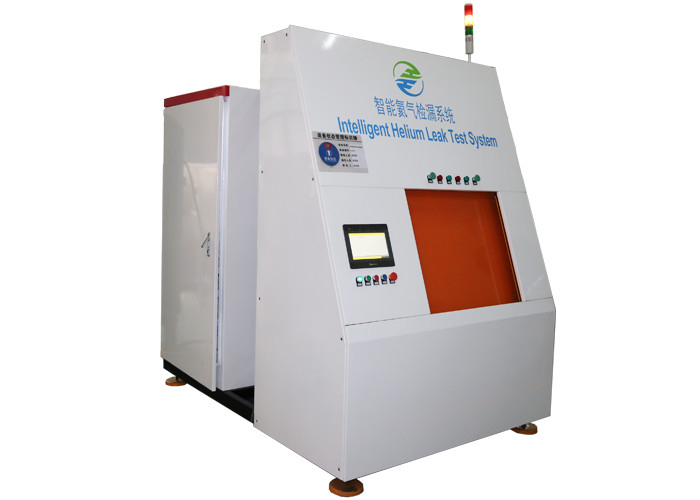

Helium Leak Testing Machine With High-Precision Leak Detector
Parameter:
| Workpiece | Heating tank. Leak Testing Equipment |

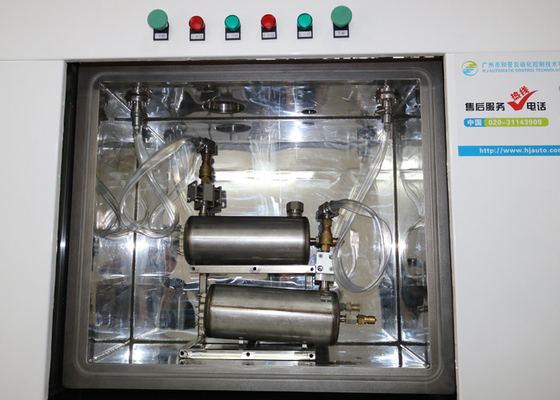

| Vacuum chamber | 1 chamber, 2 work pieces can be tested at the same time |
| Chamber size | L700mm*W300mm*H600mm |
| Maximum workpiece size | Ø240*400 |
| Quick coupling in vacuum chamber | 2 sets |
| Gas for Gross Leak Test |
Compressor air (0.8Mpa), down adjustable Detection of gross leakage point by soaking water method |
| Gas for Fine Leak Test |
Helium(0.8Mpa), down adjustable Sniffer check leak point |
| Actual leakage rate | 5x10-4mbar.L/s |
| Alarm leak rate | 5x10-5mbar.L/s |
| Equipment maximum accuracy | 5x10-6mbar.L/s |
| production efficiency | 1 minute / piece (loading and unloading time is Not included) |
| Helium Recovery | Recovery Rate ≥95% |
| Test Cycle | Automatic |
| Loading and unloading of products | Manual |
Accuracy guarantee:
The machine is provided with standard leak, which is certified by China National Measuring Institute.
Leak detector self-calibration: the helium leak detector has internal standard leak, and has auto-calibration function. As required, can start the leak detector self-calibration for sensibility and accuracy. Leak Testing Equipment
Test flow:
