6K Testing Probes for Protection Against Foreign Objects And Access Degrees

Brand Name:	HeJin
Model Number:	HT-I01/HT-I02/HT-I03/HT-I04/HT-I06
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Standard:

ISO 20653, IEC 60529

Usage:

Degree Of Protection Against Access Of Foreign Objects

First Code Element:

1/2/3/4/5K/6K

Product Name 1:

Test Probe A/B/C/D/2

Rigid Test Ball Diameter:

SФ50+0.05 0

Probe B Finger Diameter:

Ф12 0 -0.05

Probe C Diameter:

Ф2.5+0.05 0

Probe D Diameter:

Ф1+0.05 0

Packaging Details:

Plywood/Carton box

Highlight:

6K Testing Probes

IEC 60529 Testing Probes

Product Description

Probes For Testing Of Degrees Of Protection Against Foreign Objects And Access

Standard:

ISO 20653-2013 Road vehicles — Degrees of protection (IP code) — Protection of electrical equipment against foreign objects, water and access, Table 5 Probes for the testing of degrees of protection against foreign objects and access; Auto Parts Test Equipment

Parameter:

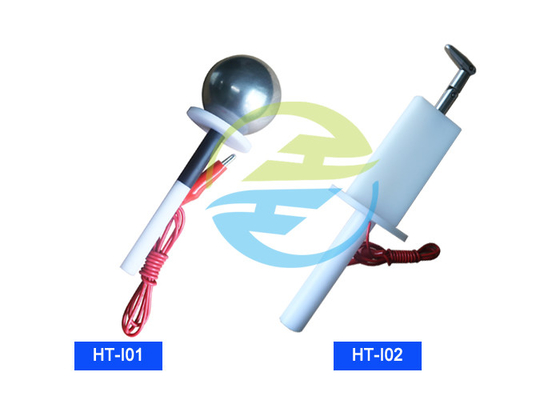

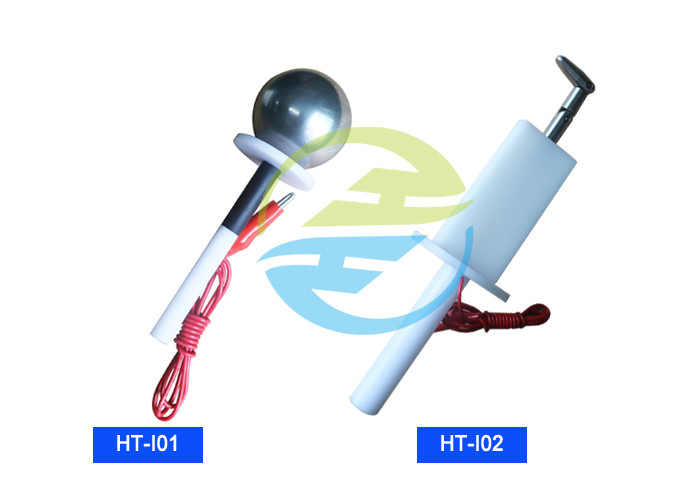

Model	HT-I01
Name	Test probe A
Rigid test ball diameter (metal)	SФ50+0.05 0
Baffle diameter (nylon)	Ф45±0.2
Baffle thickness	4
Handle diameter	Ф10
Handle length (nylon)	100
Model	HT-I02
Name	Standard Test Finger
Joint 1	30±0.2
Joint 2	60±0.2
Finger length	80±0.2
Fingertip to baffle	180±0.2
Cylindrical	R2±0.05
Spherical	R4±0.05
Fingertip cutting bevel angle	37^o 0 -10′
Fingertip taper	14^o 0 -10′
Test finger diameter	Ф12 0 -0.05
A-A Section diameter	Ф50
A-A Section width	20±0.2
Baffle diameter	Ф75±0.2
Baffle thickness	5±0.5

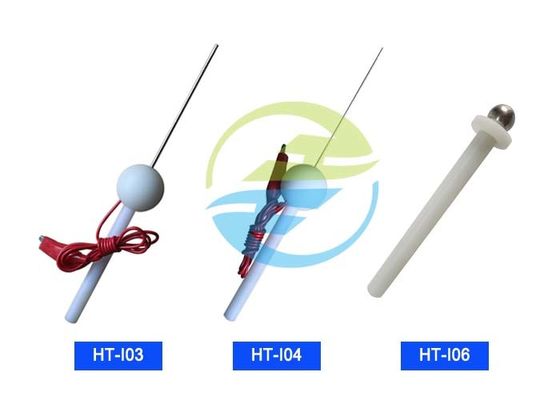

Model	HT-I03 Auto Parts Test Equipment
Name	Test rod probe C
Probe diameter	Ф2.5+0.05 0
Sphere diameter	SФ35±0.2
Handle diameter	Ф10
Probe length	100±0.2
Handle length	100
Model	HT-I04
Name	Test rod probe D
Diameter of the metal wire	Ф1+0.05 0
Sphere diameter	SФ35±0.2
Handle diameter	Ф10
Probe length	100±0.2
Handle length	100
Model	HT-I06
Name	Test probe 2 steel ball
Steel ball diameter	SФ12.5+0.2 0
