PLC Auto Parts Test Equipment Refrigerant Vacuum Filling Machine

Brand Name:	HeJin
Model Number:	HJAP
MOQ:	1 SET
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	5 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

calibration certificate

Product Name:

Automobile Refrigerant Filling Machine

Inject Refrigerant:

R22 Or R410a

Amount Of Injection:

200-99999g

Injection Speed:

150g/s

System Vacuum Degree:

20Pa

Injection Accuracy:

±0.5%

Control Mode:

PLC Control

Operation:

Touch Screen Operation

Application:

Auto Parts Test Equipment

Filling Process:

Automatically

Packaging Details:

Plywood

Highlight:

PLC Auto Parts Test Equipment

150g/s Auto Parts Test Equipment

R22 Refrigerant Vacuum Filling Machine

Product Description

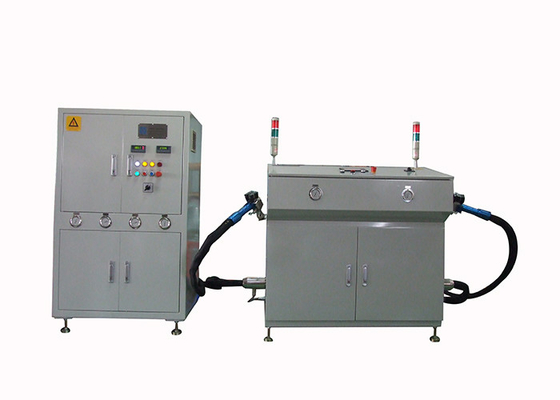

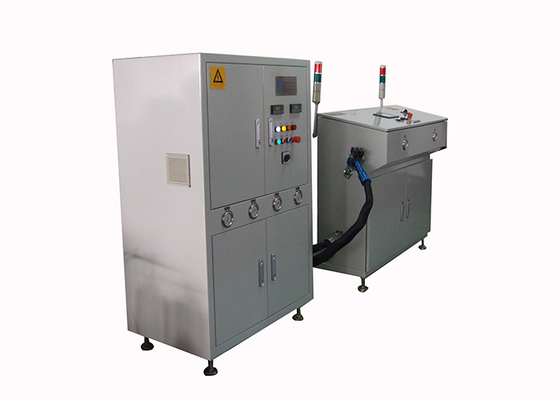

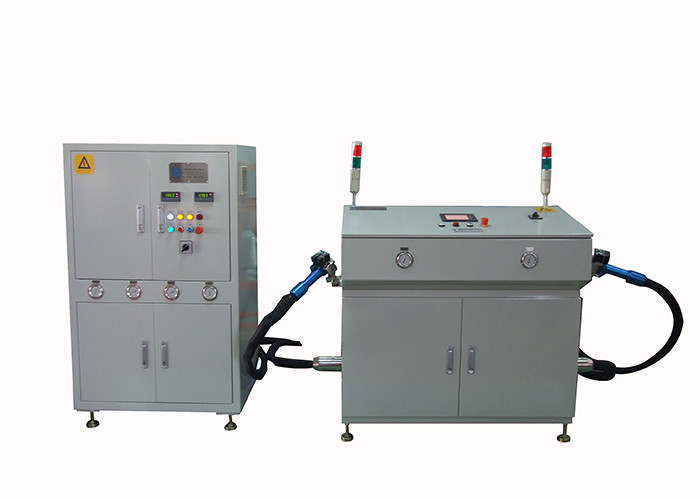

Auto Parts Test Equipment Double System Automobile Refrigerant Vacuum Filling Machine

Application:

It can be used for filling the refrigerant (R22, R134a or R410a).

Working process:

After the filling gun is connected to the workpiece, press the start switch, and the filling machine will automatically vacuum the workpiece. When the workpiece reaches the set vacuum, the equipment will perform vacuum pressure-holding and leak detection on the workpiece; if the workpiece is found to be leaking, the equipment will automatically stop the charging procedure and alarm; if it is confirmed that the workpiece is not leaking, the equipment will automatically open the charging valve to fill the workpiece. When the charged refrigerant volume reaches the set value, the system will automatically close the charging valve. The filling completion signal lights up and the filling process is complete.

Specification:

Amount of injection	200-99999g
Inject refrigerant	R22 or R410a
System vacuum degree	20Pa. Auto Parts Test Equipment
Filling speed	150g/s
Filling accuracy	Filling volume ≤500 g, ±1%; filling volume>500g, ±0.5%

Basic composition:

A. Refrigerant booster system

Refrigerant pressurization and storage unit, 2 set

PLC control unit, 1set

B. Refrigerant vacuum charging system

Vacuum unit, 1set

Refrigerant charging and metering unit, 1set

PLC control and touch screen operation unit, 1set

Configuration:

Electromagnetic valve	DANFOSS, BURKERT
Pressure sensor	HUBA
PLC and touch screen	OMRON, PROFACE
Vacuum pump	LEYBOLD
Vacuum gauge	LEYBOLD
Mass flowmeter	RHEONIK
Refrigerant booster pump	HASKEL
Main electrical components	FUJI, SCHNEIDER, MITSUBISH etc.

PLC Auto Parts Test Equipment Refrigerant Vacuum Filling Machine 0
