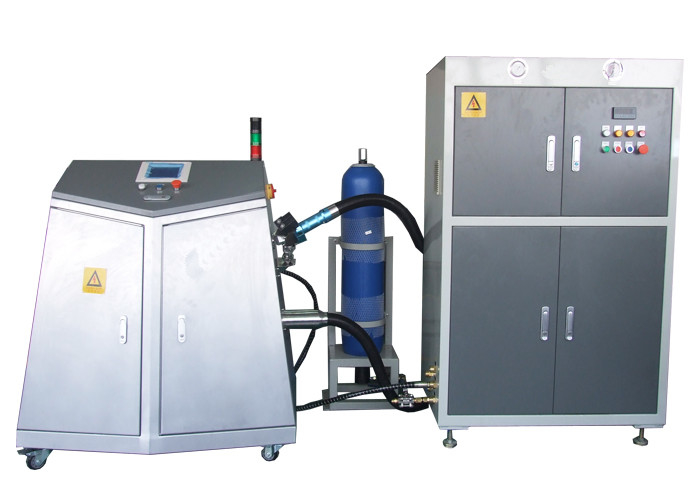

R134a Car Air Conditioning Refrigerant Vacuum Filling Machine

Brand Name:	HeJin
Model Number:	HJAP
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	5 set per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

calibration certificate

Product Name:

Car Air-Conditioning Refrigerant Vacuum Filling Machine

Amount Of Injection:

500-10000g

Injection Speed:

150g/s

System Vacuum Degree:

20Pa

Injection Accuracy:

±0.5%

Inject Refrigerant:

R134a, R22 Or R407C

Control Mode:

PLC Control

Operation:

Touch Screen Operation

Packaging Details:

Plywood

Highlight:

R134a Refrigerant Vacuum Filling Machine

5500g Refrigerant Vacuum Filling Machine

Product Description

Auto Parts Test Equipment Car Air-Conditioning Refrigerant Vacuum Filling Machine

Work process description:

After the filling gun is connected to the workpiece, press the start switch, and the filling machine will automatically vacuum the workpiece. When the workpiece reaches the set vacuum, the equipment will perform vacuum pressure-holding and leak detection on the workpiece; if the workpiece is found to be leaking, the equipment will automatically stop the charging procedure and alarm; if it is confirmed that the workpiece is not leaking, the equipment will automatically open the charging valve to fill the workpiece. When the charged refrigerant volume reaches the set value, the system will automatically close the charging valve. The filling completion signal lights up and the filling process is complete.

Basic composition:

A. Refrigerant booster system

Refrigerant pressurization and storage unit

PLC control unit

B. Refrigerant vacuum charging system

Vacuum unit

Refrigerant charging and metering unit

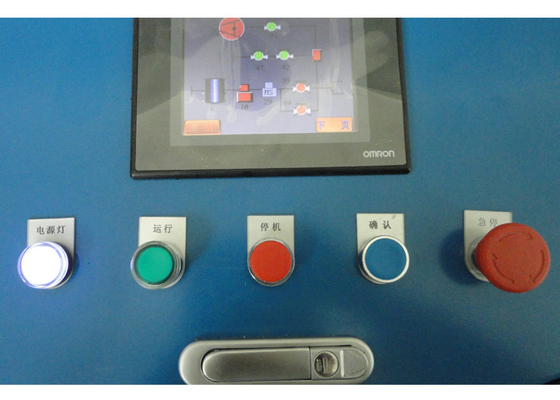

PLC control and touch screen operation unit

Specification:

Amount of injection	500-10000g
Inject refrigerant	R134a, R22 or R407C
System vacuum degree	20Pa
Injection speed	150g/s
Injection accuracy	±0.5%

R134a Car Air Conditioning Refrigerant Vacuum Filling Machine 0
