Automobile High And Low Temperature Chamber Formula Constant Wet / Humidity
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 SET | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 30 days |
| Payment Terms : | L/C, T/T | Supply Ability : | 5 set per month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | calibration certificate | Model Number: | HJAP |
|
Detail Information |
|||
| Product Name: | Anti-Rust And Antifreeze Vacuum Filling Machine | Customization: | Yes |
|---|---|---|---|
| Working Cycle: | 3 Minutes Per Vehicle | Amount Of Injection: | 1-50 Liters Digital Adjustable |
| Injection Speed: | ≥15L/min | Injection Accuracy: | ＜±1% |
| Injection Pressure: | ≤0.25Mpa | Application: | Auto Parts Test Equipment |
| Highlight: | 15L/min Auto Part Test Equipment,0.25Mpa Auto Part Test Equipment,Antifreeze Vacuum Filling Machine |
||
Product Description

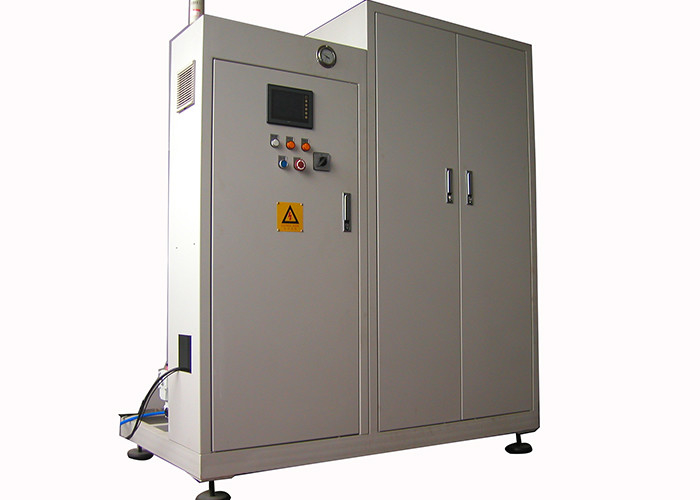

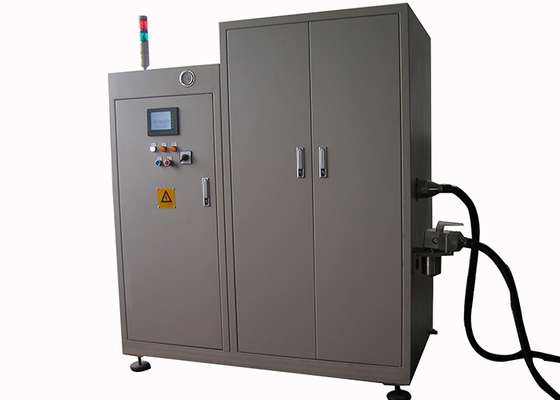

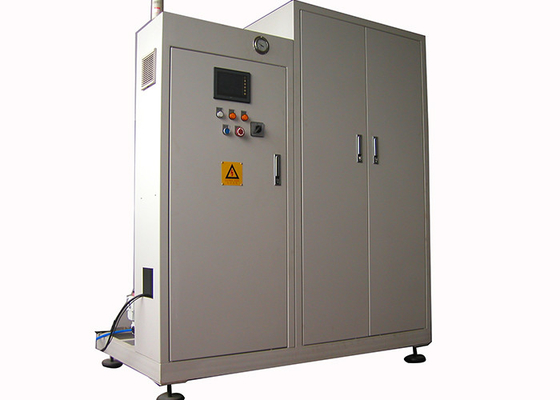

Auto Part Test Equipment Anti-Rust And Antifreeze Vacuum Filling Machine
Basic Function:
Connect the filling gun on the filling equipment to the filling port of the water tank, start the equipment work switch, and the equipment will automatically vacuumize the cooling pipeline and fill the rust and antifreeze fluid.
The filling gun adopts the dual-channel design of the evacuation channel and the anti-rust and antifreeze channel. The main water tank filling volume is controlled by flow measurement, pressure monitoring and suck back to ensure that the liquid level of the main water tank is consistent every time it is filled; After completion, the operator removes the filling gun. The suction function of the filling gun can prevent the rust and antifreeze from dripping from the gun head. The filling amount of the auxiliary water tank is controlled by a flow meter.
If the liquid in the storage tank is empty, the equipment will automatically replenish liquid from the inlet. If there is no liquid to replenish at the inlet, the equipment will automatically stop and send an alarm signal.
The equipment has two operating modes: automatic/manual. Auto Part Test Equipment
Basic composition of equipment:
The anti-rust and antifreeze liquid vacuum filling equipment consists of a control system, a monitoring system, a vacuum and leak detection device, a filling and sucking device, and an anti-rust and antifreeze liquid automatic extraction and storage device.
Specification:
| Amount of anti-rust and antifreeze injection | 1 liter ~ 50 liters digital adjustable |
| Vacuum degree when the equipment is running | <1000Pa (10mbar) |
| System vacuum degree | <2000Pa (20mbar) |
| Working cycle | 3 minutes per vehicle (including vacuuming, rust and antifreeze injection, can be customized according to requirements) |
| Injection speed | ≥15L/min |
| Injection accuracy | ＜±1% |
| Injection pressure | ≤0.25Mpa. Auto Part Test Equipment |
