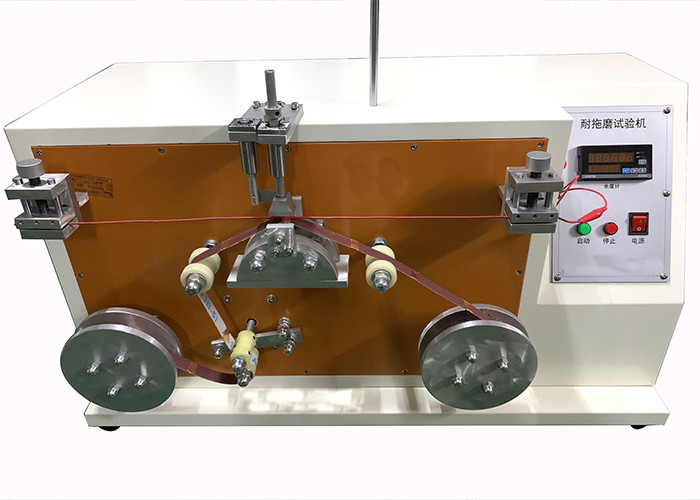

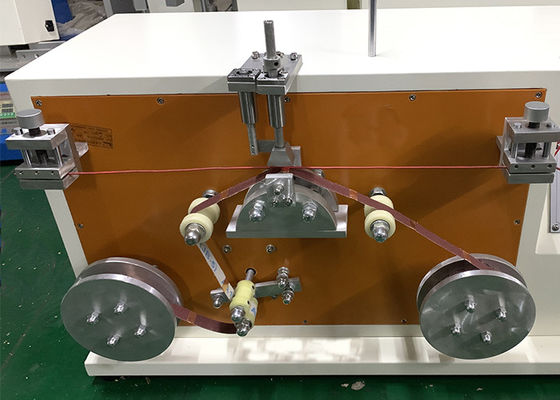

ISO6722-1-2011 Auto Parts Test Equipment Abrasion Resistance Testing Machine

Minimum Order Quantity : 1 Set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 20 days
Payment Terms : T/T, L/C Supply Ability : 10 set per month
Place of Origin: China Brand Name: HeJin
Certification: Third party calibration certificate(cost additional)

Detail Information

Product Name: Abrasion Resistance Testing Machine Standard: ISO6722-1-2011
Test Sample: Car Wire Power Supply: AC220V 50Hz
Length Range: 0-5000mm Weight Support: R114mm, Total Weight: 60g
Load Weight: 0.05, 0.1, 0.5, 0.2, 1.5 Kg Each Machine Weight: About 50kg
High Light:

AC220V Auto Parts Test Equipment

,

5000mm Auto Parts Test Equipment

,

50Hz Abrasion Resistance Testing Machine

Product Description

ISO6722-1-2011 Abrasion Resistance Testing Machine Auto Parts Test Equipment



Standard:

This device meets the standard of ISO6722-1-2011,GB/T25085-2010.



Application:

Suitable for detecting the drag resistance test of automobile wires.The abrasion resistance tester is to fix the product on the fixture at both ends, and the abrasive belt can test the product under certain load, speed and stroke. Auto Parts Test Equipment



Test sample:

Automobile wires.



Feature:

1.The cabinet is treated with electrostatic baking paint. The whole machine has reasonable design, tight structure, safe and stable operation up to standard.

2.Length can be preset, load can be superimposed, humanized design.



Parameters:

Power supply AC220V 50Hz.
Length range 0-5000mm
Moving speed of sand belt 1500 ± 75mm / min
Round rod supporting sand belt 6.9mm in diameter
Weight support r114mm, total weight: 60g
Load weight 0.05, 0.1, 0.5, 0.2, 1.5 kg each
Angle between sand belt and sample 29 degrees. Auto Parts Test Equipment
Sandpaper material 150 sandpaper (the total length of abrasive belt is 5000mm, the width is 20mm, the width of conductive strip is 10mm Spacing 75mm)
Left and right clamps the distance between clamps is 500mm
Stop function automatic shutdown when insulation layer is damaged
Machine size about 880 × 420 × 520mm
Machine weight About 50kg



ISO6722-1-2011 Auto Parts Test Equipment Abrasion Resistance Testing Machine 0
