Production Cycle Time ≥500 pcs/h Ceramic Component Multistation Helium Mass Spectrometer Leak Test Equipment
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 90 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 3 set per 3 month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) |
|
Detail Information |
|||
| Test Sample: | Automotive Air Conditioning Pipeline/auto Parts | Pressure For Gross Leak Test: | ≤3.0MPa |
|---|---|---|---|
| Helium Pressure For Fine Leak Test: | ≤4.0MPa | Vacuum Chamber Qty.: | 2 (customize) |
| Tracer Leak Detection Gas: | Helium | Alarm Leak Rate: | 5 G / Year |
| Cycle Time: | 108 Seconds / Chamber | Helium Recovery: | Recovery Rate ≥98% |
| Highlight: | 108s/Chamber Helium Leak Test,108s/Chamber Helium Test Equipment,108s/Chamber Leak Test Equipment |
||
Product Description

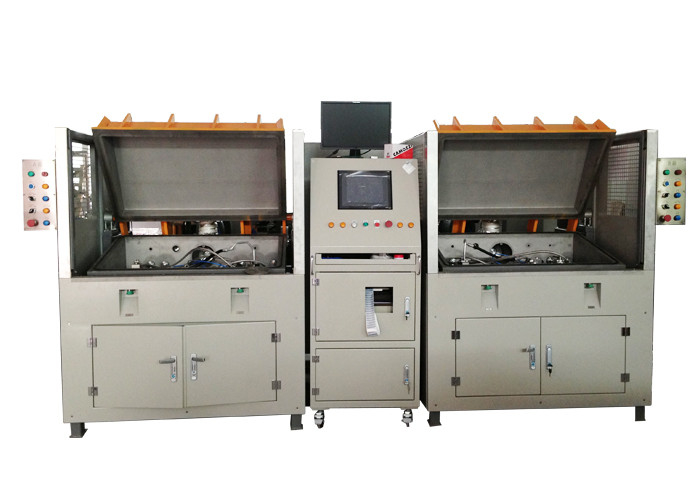

Helium Leak Testing Equipment For Automotive Air Conditioning Pipeline
Product information:

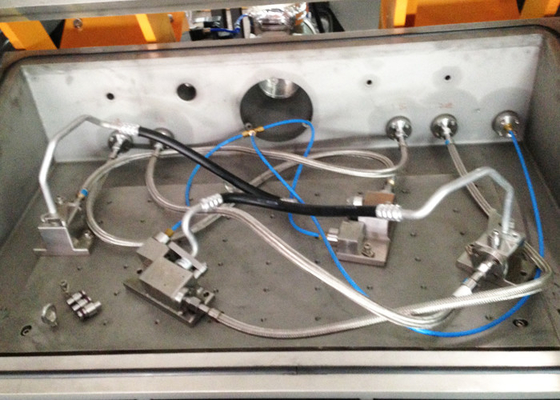

This system is a vacuum chamber type (helium filled in chamber) helium leak detection system, which is specially designed for leak detection of automotive air conditioning pipelines.
Why helium gas is used for leak test:
Only 5 ppm of helium gas exists in the atmosphere. It is less affected by the background of test environment;
Helium is safe inert gas without toxicity and explosiveness;
Because of its small molecule size, helium can penetrate through leaks easily;
It is almost not contained in the gas released from the tested part
Parameter:
| Inner dimension of vacuum chamber |
1300*650*400mm(L*W*H) According to the size of the workpiece. |
| Qty of vacuum chamber | 2 (customized) |
| Pressure for gross leak test | ≤3.0MPa |
| Helium pressure for fine leak test | ≤4.0MPa |
| Leak detection accuracy | 5 g/year (R134a) |
| Helium recovery | ≥98%. Leak Testing Equipment |
| Cycle time | 108s/chamber |
