PLC control 2 Stations Rotary Indexing Table Brazing Machines

Brand Name:	HeJin
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	3 set per 3 month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Product Name:

Automatic Brazing Machines

Test Sample:

Copper Tube

Turntable Angle:

180˚

Production Cycle:

100sets/h

Control Mode:

PLC Control System

Stations:

2 Stations

Wire Feeding:

Automatic

Gas Flow:

Mass Flow Control

Packaging Details:

Plywood

Highlight:

Rotary Indexing Table Brazing Machines

2 Stations Rotary Table Brazing Machines

PLC control Indexing Table Brazing Machines

Product Description

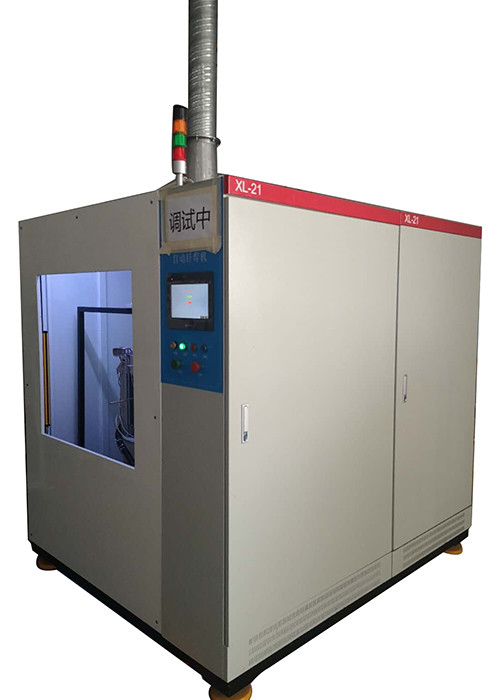

2- Stations Rotary Indexing Table Brazing Machines With Automatic Wire Feeding

Heating, brazing and cooling with air or water quench is always automatically effected. Depending on the braze part, further operations can be mechanized, like:

- flux or brazing paste dispensing

- application of brazing wire

- feeding and unloading of parts, etc. Automatic Brazing Machines

Equipment performance:

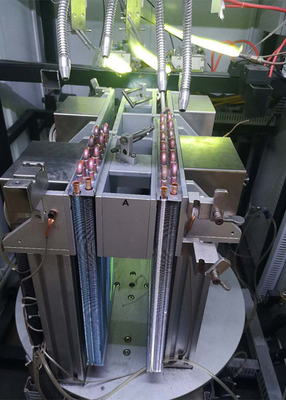

Mechanical parts

Working bench;

Positioning fixture;

The preheating and brazing station has a torch swing mechanism to make heating more uniform;

Automatic feeding mechanism;

Gas cabinet (install a small exhaust fan to make the air in the gas cabinet convection);

Burning system

Mass flow control, mass flow of fuel gas and oxygen will be digitally and accurately controlled by the mass flow meters;

Pneumatic combination torch (1group for preheating, 1group for heating;

Strong and Weak Fire automatically Switch;

Nitrogen Extinguishing;

Gas pressure alarm;

Automatic ignition;

Control system

Easily operating human touch screen;

Temperature monitoring device detect temperature of the heating station;

PLC control;

Adjust time parameter

Digitally adjust gas flow parameter

Save the preset parameter group

Select the preset parameter group

Photoelectric switch judge the work piece arrival at the heating station;

PLC control 2 Stations Rotary Indexing Table Brazing Machines 0
