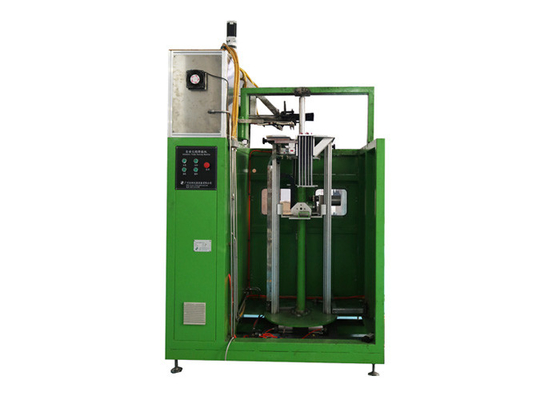

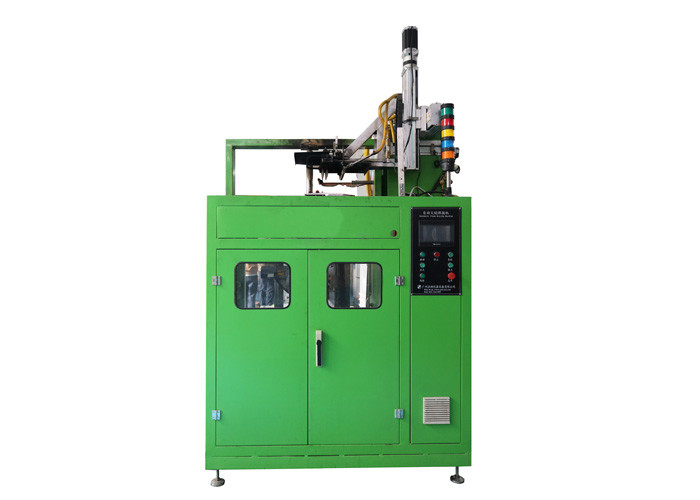

220V 380V Three-Dimensional Rotation Automatic Brazing Machine

Brand Name:	HeJin
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	3 set per 3 month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Product Name:

Automatic Brazing Machine

Test Sample:

Heat Exchanger U-Tube

Test Station:

2 Stations

Control Mode:

PLC Control

Compressed Air Pressure:

5~7bar

Oxygen Pressure:

3-7bar

Fuel Gas Pressure:

LNG: 0.7-3bar

Flow Rate:

Mass Flow Controller

Packaging Details:

Plywood

Highlight:

220V Automatic Brazing Machine

380V Automatic Brazing Machine

Three-Dimensional Rotation Automatic Brazing Machine

Product Description

Automatic Brazing Machine For Heat Exchanger U-Tube With Three-Dimensional Rotation

Product principle:

By realizing the automation of the brazing process, controlling the brazing time and gas flow effectively, the brazing temperature and the brazing pool shape are controlled, so that the stability and the consistency of the brazing quality can be ensured. Automatic Brazing Machine

Operating requirement:

Power supply	3phase/5lines/380V; single phase 220V/50HZ, voltage range±10%
Compressed air pressure	5~7bar
Fuel gas pressure	LNG:0.7-3bar
Oxygen pressure	3-7bar
Use environment	Temperature: 0℃-40℃, relative humidity: 30-98%RH

Feature:

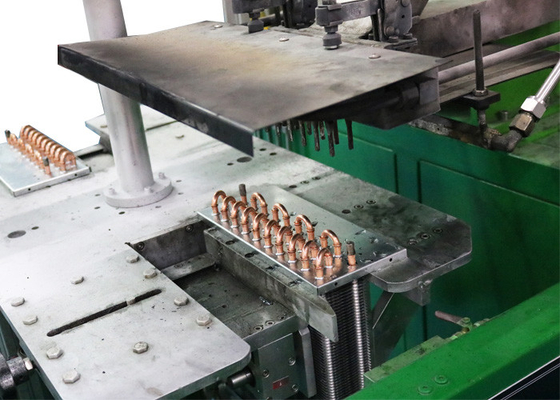

Fixture can achieve the positioning and clamping of the work piece

Fixture can adapt to the work piece height, thickness and length changes.

There are two working platform and fixtures. When one platform is welding a work piece, the other platform cools the welded work piece or loads and unloads the work piece.

The location of the brazing torch can be automatically adjusted (XYZ three directions) to adapt to the work piece height, thickness and length changes; the number of brazing torch can be manually adjusted to adapt to the work piece length changes; The water cooling system of brazing tips forces water cooling and prolongs the service life. Automatic Brazing Machine

220V 380V Three-Dimensional Rotation Automatic Brazing Machine 0
