1-3m/min In-line Automatic Brazing Machine For Heat Exchanger

1-3m/min In-line Automatic Brazing Machine For Heat Exchanger

Brand Name:	HeJin
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	3 set per 3 month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Product Name:

Automatic Brazing Machine

Test Sample:

Air Conditioner Evaporator/condenser

Control Mode:

PLC Control

Fuel Gas:

LPG/LNG

Coils Height:

200-1400mm

Conveying Speed:

1-3m/min

Flow Rate:

Mass Flow Controller

After-sales Service Provided:

Online Support,Video Technical Support

Packaging Details:

Plywood

Highlight:

3m/min Automatic Brazing Machine

In-line Automatic Brazing Machine

3m/min Brazing Machine

Product Description

In-line Automatic Brazing Machine For Heat Exchanger U-Tube PLC Control

Principle:

By realizing the automation of the brazing process, controlling the speed of the conveyor and the brazing fire, controlling the brazing time and gas flow effectively, the brazing temperature and the brazing pool shape are controlled, so that the stability and the consistency of the brazing quality can be ensured.

Specification:

Automatically weld heat exchanger U-tube, 1-3 rows with 200-1600 height when conveyer belt height is 400mm.

Coils
Coils	Air conditioner evaporator/condenser
Coils height	200-1400mm
Max. coil row	3 Automatic Brazing Machine
Equipment
Conveyor length	Front side	Middle side	Behind side
	6000	1750	7250
Conveyor width	>120mm
Conveying speed	1-3m/min
Fuel gas	LPG/LNG

Conveyor speed:

U-tube Ф7: 2 rows - 3.0m/min; 3-4 rows - 2.5m/min.

Structure:

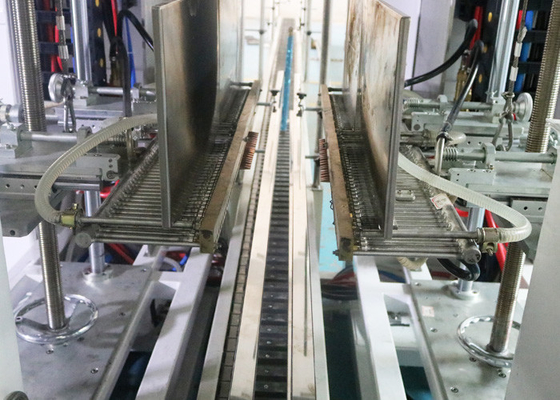

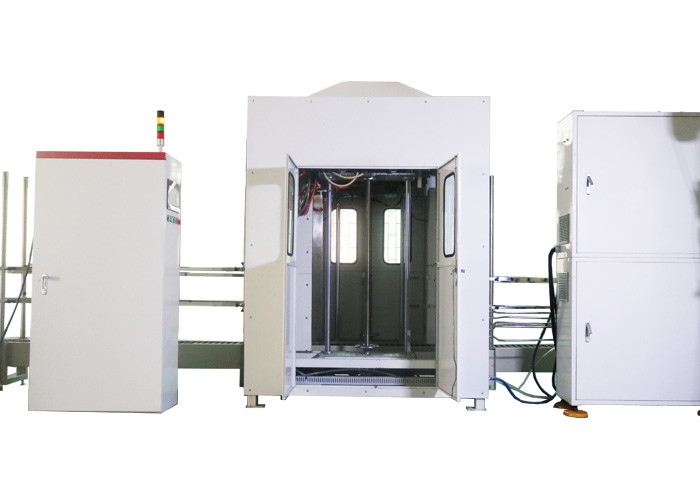

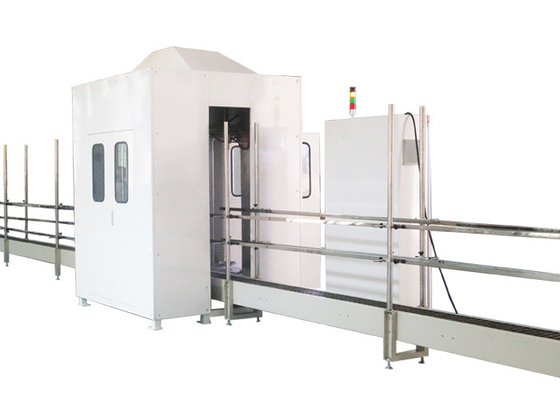

Include the main body (main pedestal, preheating torches, brazing torches, coils cooling, fume hood, water cooling system), gas line part, convey part and PLC control parts. Automatic Brazing Machine

1-3m/min In-line Automatic Brazing Machine For Heat Exchanger 0
