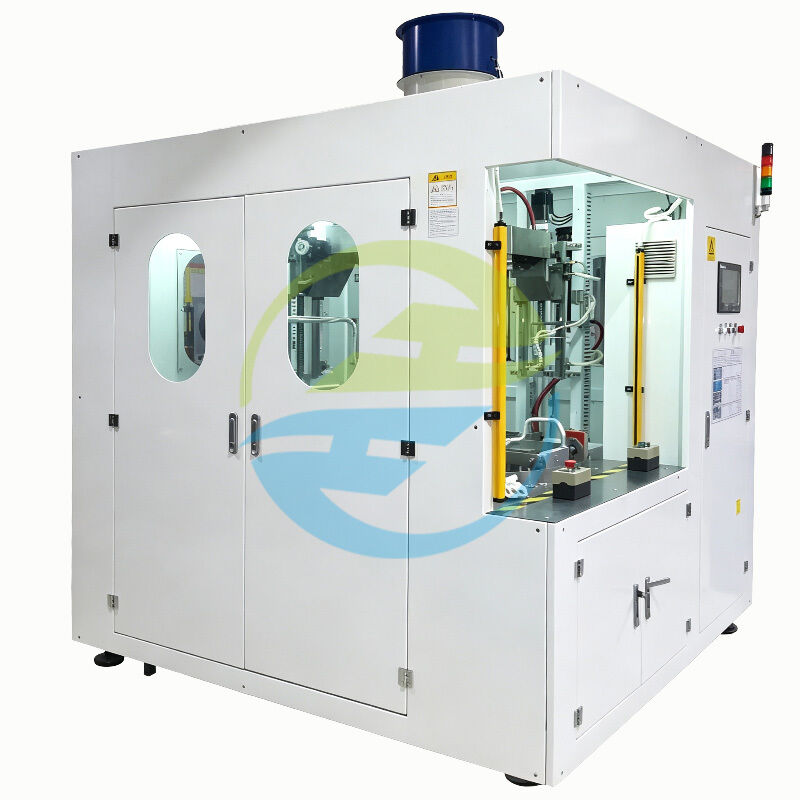

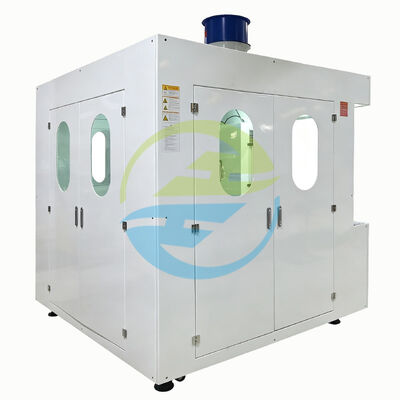

Automatic Aluminum Tube Joint Brazing Machine for Automotive Radiators

The Automatic Aluminum Tube Joint Brazing Machine is designed for automated brazing of aluminum tube interfaces used in automotive radiator and heat-exchanger manufacturing.

It helps reduce variation caused by manual operation while improving positioning consistency, heating control and brazing repeatability. The equipment can be integrated into production workflows where stable and repeatable aluminum tube joint brazing is required.

Automotive radiators depend on numerous accurately assembled components. The connection between an aluminum tube and its corresponding interface must be processed with controlled heating and stable positioning to achieve a reliable brazed joint.

Manual brazing can work for small-volume production, prototypes or highly variable workpieces. However, as production volume increases, manufacturers often face familiar challenges:

• Inconsistent heating between operators
• Different brazing times from cycle to cycle
• Positioning variation
• Uneven filler-metal distribution
• Difficult process repeatability

With a properly configured automatic brazing system, the workpiece can follow a repeatable positioning and heating sequence. This provides a more stable process foundation for manufacturers that need consistent production results.

1. Automatic Brazing Operation

   The machine is designed to reduce dependence on manual brazing operations and provide a more repeatable production process.

2. Dedicated Aluminum Tube Joint Application

   The equipment is developed specifically around aluminum tube interface brazing applications, making it suitable for automotive radiator and related heat-transfer component manufacturing.

3. Repeatable Workpiece Positioning

   Stable positioning is important because even a good heating system cannot compensate for inconsistent workpiece placement. The machine uses dedicated positioning and clamping arrangements to maintain the intended joint position during the brazing process.

4. Controlled Heating Process

   The heating process can be configured according to the material, joint structure and brazing process requirements of the customer's workpiece.

5. Reduced Operator Dependency

   Automation helps reduce variation caused by differences in operator technique, making the process more suitable for repetitive production.

6. Production-Oriented Machine Design

   The equipment is intended for industrial production rather than occasional laboratory use, with attention given to repeatability, operation and integration into the customer's manufacturing workflow.

The machine is primarily intended for applications involving aluminum tube connections in automotive radiator and heat-exchanger manufacturing.

Potential application areas include:

• Automotive Radiator Components
  • Aluminum radiator tube joints
  • Radiator tube interfaces
  • Aluminum tube-to-fitting connections
  • Radiator connection sections
  • Automotive heat-transfer component joints
• Heat Exchanger Manufacturing
  • Aluminum tube connections
  • Heat-exchanger tube interfaces
  • Aluminum heat-transfer component joints
  • Tubular heat-exchange assemblies
• Related Automotive Thermal Management Components

Depending on the workpiece design and brazing process, customized configurations can be evaluated for other aluminum tube connection applications.

The core value of an automatic brazing machine is not simply the heating source.

A reliable production brazing process depends on several factors working together:

1. Accurate Positioning

   The tube and connection interface need to remain in the correct relative position during heating and brazing.

2. Stable Clamping

   The fixture needs to hold the workpiece without unnecessarily affecting the joint area.

3. Controlled Heating

   The heating process needs to match the characteristics of the aluminum material, joint design and brazing filler metal.

4. Repeatable Process Sequence

   The machine should execute the same programmed process sequence from one cycle to the next.

5. Application-Specific Fixtures

   The fixture is developed around the actual workpiece instead of forcing every product into a generic structure.

An Automatic Brazing Machine is industrial equipment designed to automate the positioning, heating and brazing sequence for metallic components. Compared with manual brazing, automation can provide a more repeatable production process.

This machine is designed for aluminum tube joint brazing applications, particularly automotive radiator and related heat-exchanger component manufacturing.

Yes. The machine is intended for aluminum tube brazing applications. The actual material, alloy, tube dimensions and filler metal should be confirmed before final machine configuration.

Yes. HeJin provides application-oriented equipment development and OEM/ODM support. Fixture structure, positioning arrangements and process configuration can be developed according to the customer's workpiece.

The machine is designed as an industrial automatic brazing solution. Final production capacity and cycle time depend on the workpiece, brazing process and final machine configuration.

Yes. HeJin operates with R&D, design and manufacturing capabilities and provides factory-direct equipment supply.

Yes. Providing workpiece samples, drawings and joint details is strongly recommended when requesting a customized brazing solution.

HeJin is a technology-driven manufacturer specializing in industrial testing equipment, automatic brazing equipment, leak detection systems and automotive component testing solutions.

The company's factory information identifies its capabilities in automotive parts test equipment, automatic brazing machines, leak testing equipment and OEM/ODM engineering services.

HeJin's company profile also describes its focus on research and development, manufacturing and sales of high-precision industrial testing equipment, together with application-oriented engineering and customer service.

For customers, that means one technical team can stay involved from the first discussion through equipment development, production, commissioning and after-sales support.

We don't just ask what machine you want. We ask what production problem you need to solve.

That difference matters.
