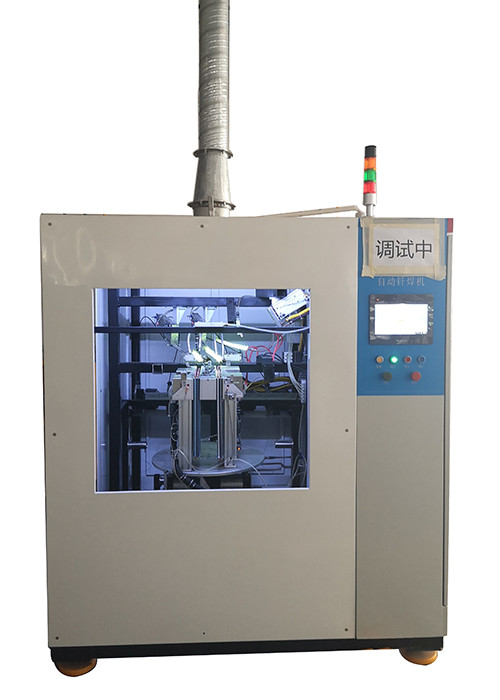

100sets/h Rotating Automatic Flame Brazing Machine

Minimum Order Quantity : 1 Set Price : Negotiatable
Packaging Details : Plywood Delivery Time : 90 days
Payment Terms : T/T, L/C Supply Ability : 3 set per 3 month
Place of Origin: China Brand Name: HeJin
Certification: Third party calibration certificate(cost additional)

Detail Information

Product Name: Automatic Brazing Machines Test Sample: Air-conditioning Units
Turntable Angle: 180˚ Production Cycle: 100sets/h
Control Mode: PLC Control System Power: 3phase+5lines 380V
Combustion Gas: LNG Or LPG Fuel Gas: 1-3bar
High Light:

Automatic Flame Brazing Machine

,

Rotating Automatic Flame Brazing Machine

,

100sets/h Automatic Flame Brazing Machine

Product Description

Rotating Automatic Flame Brazing Machine For Copper Tubes With 2 Stations



There are several considerations that need to be looked at when designing a brazing system, the three most important being:

- geometry of the work-piece

- required production volume

- desired extent of automation



Equipment composition:

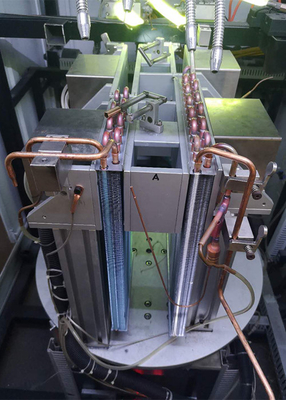

Working bench and fixture (can install 4 sets fixture);

Gas flow control system;

Automatic wire feeding mechanism;

Positioning mechanism; Automatic Brazing Machine

Gas cabinet and combustion system;

Electric control cabinet and PLC control system;

Exhaust hood;



Technical data:

Workpiece Copper tube; air-conditioning units; Need to change fixtures when brazing different products; only providing one fixture for one brazing position.
Power supply Power supply: 3phase/5lines/380V; single phase 220V/50HZ, voltage range±10%
Compressed air 5-7bar
Fuel gas 1-3bar
Oxygen 3-7bar
Nitrogen (Extinguishing) 3~7bar
Temperature 0℃-40℃
Humidity 30-98%RH
Combustion gas LNG or LPG. Automatic Flame Brazing Machine

100sets/h Rotating Automatic Flame Brazing Machine 0
