1-3m/min In-line Automatic Brazing Machine For Heat Exchanger
Contact Person : Anglia Chen
Phone Number : +86 17724266108
WhatsApp : +8617724266108
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 90 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 3 set per 3 month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) |
|
Detail Information |
|||
| Product Name: | Automatic Turntable Brazing Machines | Test Sample: | Inlet And Outlet Tubes Of Water Heater |
|---|---|---|---|
| Station 1: | Load And Unload Station | Station 2: | Brazing Station |
| Station 3: | Cooling Station | Turntable Cycle: | ≤18sec |
| Total Capacity: | ≥200pieces/h | Turntable Rotation Angle: | 360˚ |
| High Light: | Automatic Turntable Brazing Equipment,360˚ Automatic Turntable Brazing Equipment,200pieces/H Turntable Brazing Equipment |
||
Product Description

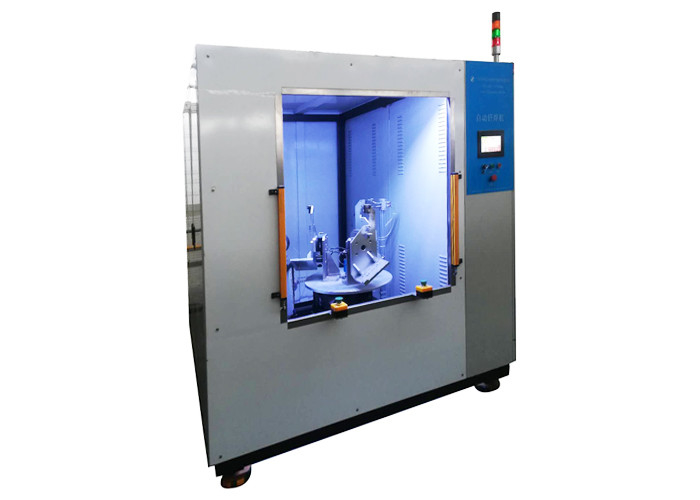

Automatic Turntable Brazing Machines With High Production Output
Description:

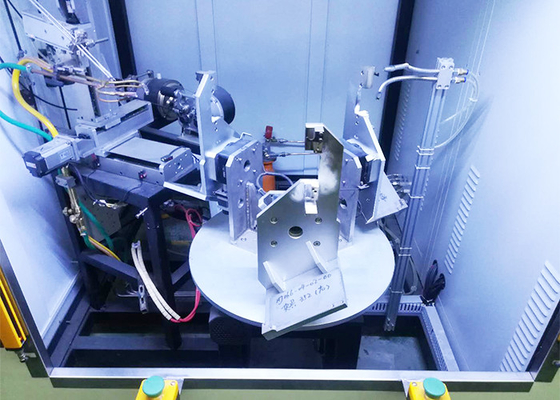

This machine is used for brazing of inlet and outlet tubes of water heater to copper tube with gas/oxygen flame.
We use 3 stations with 1 fixture units per station, auto flux dispensing unit and auto wire feeding units for this machine.
Users can choose between several forms of rotary machines. Based upon the specific requirement such machines are designed as automatically indexing rotary table or as continuously rotating units.
This machine has several advantages:
1) Very high production rate
2) Simple design with high quality performance
3) Cost saving with less gas usage
4) Simple fixture design
5) Reliable product positioning
6) Digital adjusting for oxygen and fuel gas flow
7) Automatic brazing process
Parameter:
| Turntable cycle | ≤18sec. Automatic Turntable Brazing Machines |
| Total capacity | ≥200pieces/h |
| Wire feeding position error | ≤1mm |
| Wire feeding accuracy | ±0.5mm |
| Fixture rotation angle error | ±0.5˚ |
| Fixture rotation angle | 0-90˚ |
| Turntable rotation angle | 360˚ |
| Test station | 3 stations, including load and unload, brazing and cooling station |
