50HZ 60HZ 8 Station 45s/pc Rotary Automatic Brazing Machine

Brand Name:	HeJin
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	3 set per 3 month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Product Name:

Automatic Brazing Machine

Control Mode:

PLC Control

Production Cycle:

45s/pc

Test Station:

8 Station

Machine Type:

Rotary Type

Voltage:

380V,220V

Frequency:

50/60HZ

Warranty:

12 Months

Packaging Details:

Plywood

Highlight:

8 Station 45s/pc Brazing Machine

50HZ Automatic Brazing Machine

60HZ Automatic Brazing Machine

Product Description

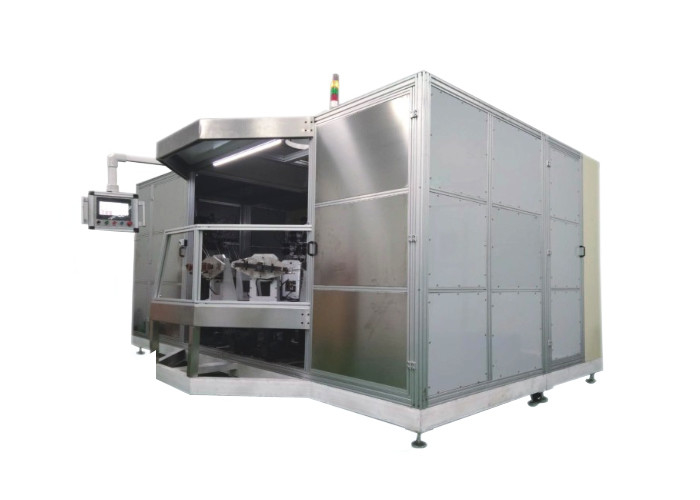

8 Station Rotary Automatic Flame Brazing Machine with 45s/pc Production Cycle

Product information:

A flame is a heat source, the purpose of the flame is to raise the temperature of the material it touches to a sufficiently high enough temperature to enable a process to be carried out, what is the process? And what type of flame is required?

One such process is Flame Brazing (often referred to as Torch Brazing).

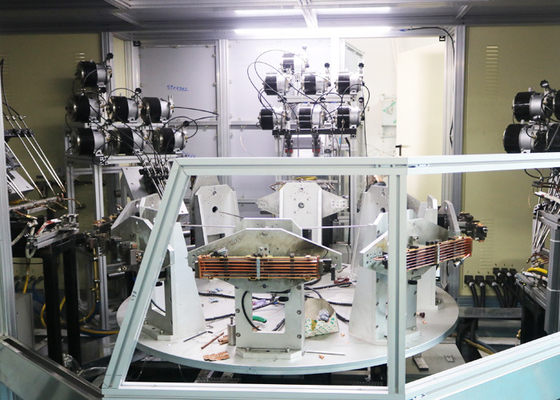

Multi Station, rotary indexing machines allow the operator to load and unload parts from a single position. Parts are indexed to paste application stations, pre-heat stations and brazing stations followed by air and water cool down stations prior to unloading. Multiple stations allow for higher throughput, production rates.

Parameter:

Production Cycle	45s/pc. Automatic Flame Brazing Machine
Workpiece Requirements	The surface is clean, without obvious stains, specifications are uniform, and the welding position tolerance is not more than 1mm after positioning of the connection point.
Workpiece size	According to customer's drawings and samples.
Brazing effect	The solder flows evenly without any faulty welded joint.
