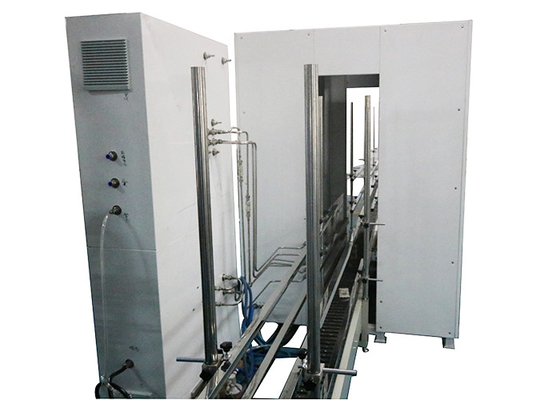

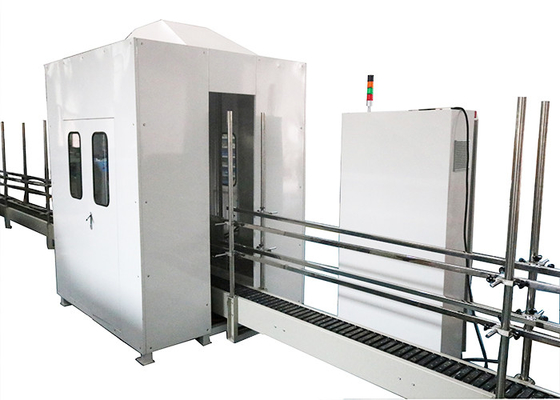

Flame Control 2.5m/Min Automatic Brazing Machine Conveyor Type

Flame Control 2.5m/Min Automatic Brazing Machine Conveyor Type

Brand Name:	HeJin
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	3 set per 3 month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Product Name:

Automatic Brazing Machine

Test Sample:

Auto Air Conditioner Evaporator/condenser

Control Mode:

PLC Control

Welding Products Height:

400 Mm-1500 Mm

Production Line Speed:

1-2.5m/min

Products Columns:

1-4 Rows

Voltage:

380V,220V

Frequency:

50/60HZ

Packaging Details:

Plywood

Highlight:

Automatic Brazing Machine Conveyor Type

2.5m/Min Automatic Brazing Machine

Flame Control Automatic Brazing Machine

Product Description

Copper U-Bends Coils Brazing Machine Conveyor Type Flame Control Function

Product information:

We have very special design to avoid an orange peel phenomenon crack and an erosion on brazing of copper u-bends coils.

We have built several types of gas flame brazing/soldering machines for brazing of u-bends for heat exchangers. This machine has three stage flame control functions and memory control of flame strength, conveyor speed, burner height, burner width & degree, as options. Also, we can attach a bar code reader upon customer's request.

The automatic brazing machine is custom built for your applications and enables one operator to turn out hundreds of joints per hour. Typically, parts are loaded into stainless steel fixtures which maintain proper alignment throughout the brazing or soldering cycle. The fixtured parts (assemblies) are then conveyed through a closely-timed sequence of paste alloy application, heating, and cooling. Assemblies made of steel, stainless, copper, brass, and aluminum can all be joined on automation equipment. Brazing machines can employ various heat sources such as torch, flame, acetylene, gas/air, induction, resistance, infrared, oven, and furnace. Brazing machines produces strong, sealed, leak-proof joints. Automatic brazing machines use filler metals in solid form, like rings and wire, slugs, washers, powder, and paste.

Feature:

1. Three stage flame function (preheating/main heating/post heating

2. Memory control of burner height, width, degree (option)

3. Memory control of flame strength, conveyor speed, etc.

Parameter:

Applicable Products	Heat exchanger U-bend coils
Combustion gas	Natural gas or liquefied petroleum gas + oxygen
Welding products height	400 mm-1500 mm
Production line speed	1-2.5m/min
Small U tube diameter	Ф6 mm, Ф7 mm, Ф 7.94mm, Ф9.52mm
Products columns	1-4 rows. Automatic Brazing Machine

Flame Control 2.5m/Min Automatic Brazing Machine Conveyor Type 0
