Production Cycle Time ≥500 pcs/h Ceramic Component Multistation Helium Mass Spectrometer Leak Test Equipment
Contact Person : Anglia Chen
Phone Number : +86 17724266108
WhatsApp : +8617724266108
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 90 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 3 set per 3 month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) |
|
Detail Information |
|||
| Test Sample: | New Energy Automobile Power Switch | Test Station: | 2 Sattions |
|---|---|---|---|
| Working Medium: | Normal Air | Leak Test Pressure: | Negative Pressure 3-50KPa |
| Cycle Time: | 40s/piece | Test Time: | 0-999 Seconds |
| Control: | PLC | Data Record: | Yes |
| High Light: | Air Tightness Leak Test Equipment,40s/Piece Leak Test Equipment,40s/Piece Test Equipment For Power Switch |
||
Product Description

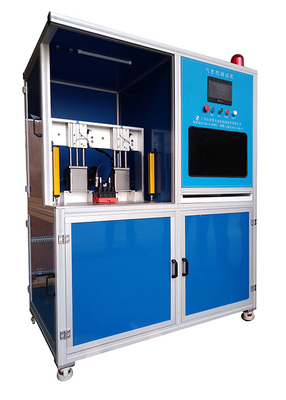

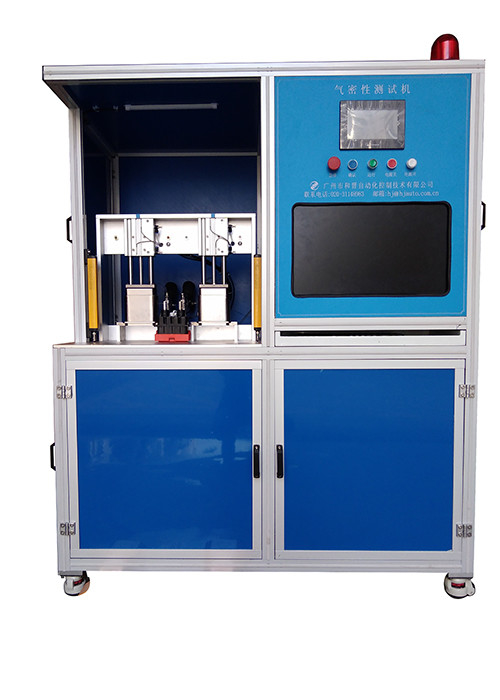

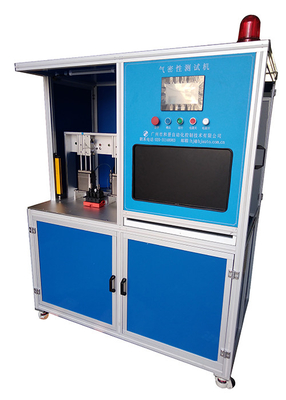

Air Tightness Leak Test Equipment For New Energy Automobile Power Switch
Function:
The equipment can complete code scanning of the power switch, air tightness leak detection, result judgment, data recording and uploading.
System composition:
The system has 4 components, including workbench and frame, workpiece sealing fixture, leak detection unit and electrical control unit. Leak Testing Equipment
Advantage:
Generally, air tightness and seal testing are usually carried out by water submersion. However, hydraulic submersion test is carried out visually by people, and there is a high chance of human error (such as failing to observe the bubbles). The difference in each operator's abilities and sense would also make the testing inaccurate. Air leak test measures the amount of air that leaks out from the product "leak rate" to test the airtightness and seal. The leak rate figure that passes or fails a product can be set, in order to carry out the testing both accurately and efficiently. Our systems are the optimum form of airtight testing on power switch, as there is no need to wet the product being tested.
Parameter:
| Test piece | New energy automobile power switch |
| Leak test pressure | Negative pressure 3-50KPa |
| Maximum resolution of air leak tester | 0.1Pa. Leak Testing Equipment |
| Cycle time | 40s/piece |
| Test time | The test time can be set freely within the range of 0-999 seconds |
| Leak judgment | Can be set |
