HJAP11 500750750 250L High Low Temperature Chamber

Name: HJAP11 500*750*750 250L High Low Temperature Chamber
Brand: HJ AUTOMATIC CONTROL TECHNOLOGY CO., LTD
SKU: HJAP11
Availability: InStock

Brand Name:	HeJin
Model Number:	HJAP11
MOQ:	1 Set
Price:	Negotiatable
Payment Terms:	T/T, L/C
Supply Ability:	5 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Product Name:

Rapid Change Of High/Low Temperature Chamber

Test Sample:

Electric And Electronic Components In Road Vehicles

Temperature Range:

-70°C ~ +150°C

Inner Dimension:

500*750*750(D*W*H)

Inside Volume:

250L

Humidity Range:

20%~98% R.H.

Heating / Cooling Rate:

5-15°C/min

Temperature Deviation:

±2°C

Packaging Details:

Plywood

Highlight:

250L High Low Temperature Chamber

500750750 High Low Temperature Chamber

HJAP11 High Low Temperature Chamber

Product Description

Auto Parts Test Equipment Rapid Change Of High/Low Temperature Chamber (Wet And Hot)

Standard:

IEC 60068-2-1 Environmental testing for electric and electronic products – Part 2-1: Tests methods – Test A: Cold;

IEC 60068-2-2 Environmental testing for electric and electronic products – Part 2-2: Tests methods – Test B: Dry heat;

IEC 60068-2-78 Environmental testing – Part 2-78: Tests methods – Test Cab: Damp heat, steady state;

IEC 60068-2-30 Environmental testing for electric and electronic products – Part 2-30: Tests methods – Test Db: Damp heat, cycle (12h+12h cycle)

MIL-STD-810F Method 501.2, 502.2

Application:

Applicable to the compatibility test when the complete machine and parts of electronic and electrotechnical products are subject to rapid or gradual temperature change, especially for the environmental stress screening (ESS) test of electronic and electrotechnical products. Auto Parts Test Equipment

We not only provide the chambers with such standard volumes as 250L, 500L, 1,000L and 2,000L, but also can customize the rapid temperature-change chamber of any volume according to the customer requirements, with such optional functions as liquid nitrogen, dampness and heat, and condensation prevention, etc.

Parameter:

Inside volume	250L(can be customize) Auto Parts Test Equipment
Temperature range	-70°C ~ +150°C
Humidity range	20%~98% R.H. (temperature operating range +20°C~+85°C)
Temperature fluctuation	±0.5
Temperature deviation	±2°C
Humidity deviation	-3~+2%R.H.(over 75%R.H.), +5%R.H.(below 75%R.H.)
Standard load(Kg steel ingot)	10
Heating / cooling rate	5-15°C/min (including standard load, full average, -55~+85°C)
Remark	Above indicators are measured in no load at ambient temperature of 20±2°C, range measured at heating/cooling rate is +85 /-55°C
Internal dimension	500750750(DWH)
External dimension	18009501800 (DWH)
Caster	4-6 standard casters
Inspection window	450*500 provided with heating device to prevent condensation and frosting
Test hole	Two, diameter 100
Illumination	Equipped with headlamp
Colling mode	Water cooling (water temperature 7~28°C, water pressure 0.2~0.4Mpa)
Power supply	380V±10%/50Hz±1, three phase five wire system(3P+N+G)

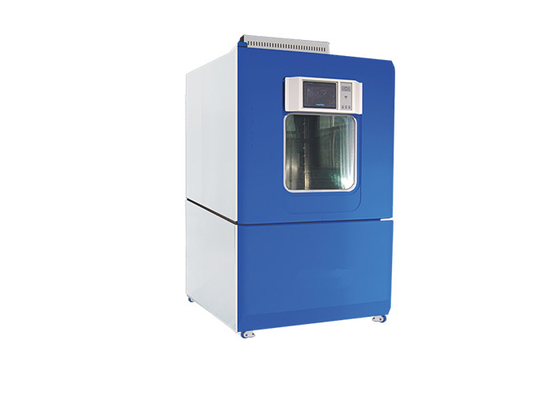

HJAP11 500*750*750 250L High Low Temperature Chamber 0
