Refrigeration Equipment Helium Mix Fill Suction Leak Detection System For Leak Testing High Sensitivity
Contact Person : Tessa Huang
Phone Number : +86 18027403449
WhatsApp : +8618027403449
| Minimum Order Quantity : | 1 Set | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Plywood | Delivery Time : | 90 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 3 set per 3 month |
| Place of Origin: | China | Brand Name: | HeJin |
|---|---|---|---|
| Certification: | Third party calibration certificate(cost additional) |
|
Detail Information |
|||
| Application: | Automotive Air Conditioning Compressor | Vacuum Chamber Qty: | 2 |
|---|---|---|---|
| Helium Recovery: | Recovery Rate≥98% | Gas Pressure For Fine Leak Test: | Helium |
| Cycle Time: | Depend On Chamber Size And Leak Rate | Detection Capability: | 1.0 X 10-9 ～ 9.0 X 10-3 [Pa・m3/sec] |
| Function: | Helium Leak Test System For Automobile Parts | Fixture: | 4 Set |
| Highlight: | AC220V Helium Leak Testing Equipment,215*1211.7*155.2mm Helium Leak Testing Equipment,215*1211.7*155.2mm Leak Testing Equipment |
||
Product Description

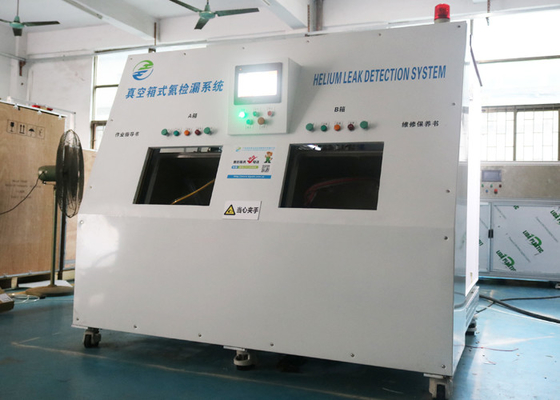

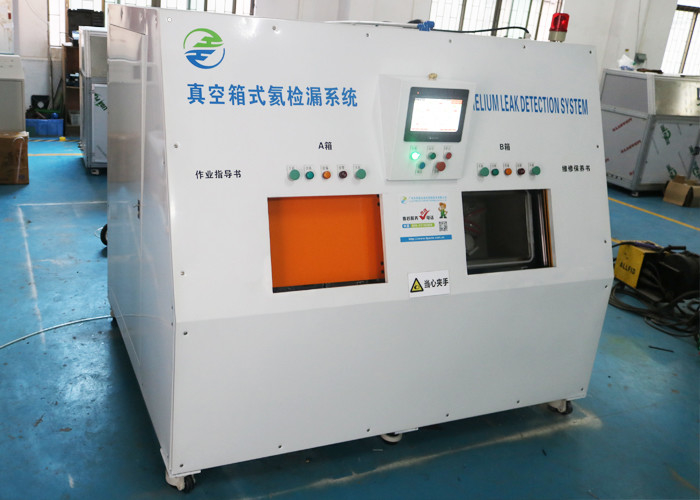

Helium Leak Testing Equipment For Automobile Parts Tracer Gas Method
Feature:
Systems include sniff leak testing, nitrogen purge leak testing, accumulation tracer gas systems, and hard vacuum helium leak tests. Tracer gas leak detection systems provide high sensitivity, accuracy and repeatability and can be used to test parts with extreme leak rate requirements.
Benefits of Tracer Gas (Helium) Leak Testing:
Enhanced sensitivity and resolution for increased leak test accuracy
Capability to detect micro-leaks down to 1x10-9 scc/s (0.0000000001 scc/m)
Faster test times than air-flow leak testing technology
Non-temperature dependent test accuracy
Significantly reduces false leak failures
Helium is the most commonly used tracer gas for leak detection
The tracer gas method can be used for both leak location and small leak detection
Specification:
| Application | Automotive air conditioning compressor |
| Workpiece Dimension | L*W*H=215mm*1211.7mm*155.2mm (can be customized) |
| Detection capability | 1.0 x 10-9 ～ 9.0 x 10-3 [Pa・m3/sec] |
| Workpiece Air Inlet Parameters | 2pcs; return air inlet diameter 18.3, exhaust vent diameter15.480-0.05mm |
| Vacuum Chamber qty. | 2 Leak Testing Equipment |
| Tracer Gas | Helium. Leak Testing Equipment |
| Gas Pressure for Fine Leak Test | 1.5 Mpa (Downward adjustable) |
| Gas Pressure for Gross Leak Test | 2.5 Mpa (Downward adjustable) |
| Cycle time (excluding work replacement) | Depend on chamber size and Leak rate |
| Workpiece Fixture | 4 SET |
| Loading & Unloading | Manual |
| Helium Recovery | Yes, recovery rate≥98% |
| Usage environment | |
| Temperature | 10~40℃ |
| Power supply | 3ØAC220V±10% 50/60Hz 300VA |
